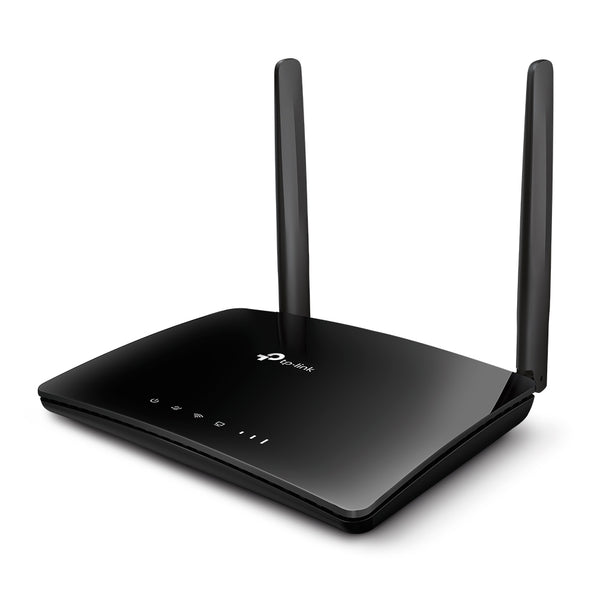

TP-Link 300Mbps Wireless N 4G LTE Router | TL-MR6400

TP-Link 300Mbps Wireless N 4G LTE Router | TL-MR6400

TL-MR6400 | 300 Mbps Wireless N 4G LTE Router

Description:

Cutting-edge 4G network: Share internet access with up to 32 Wi-Fi devices and enjoy download speeds of up to 150 Mbps.

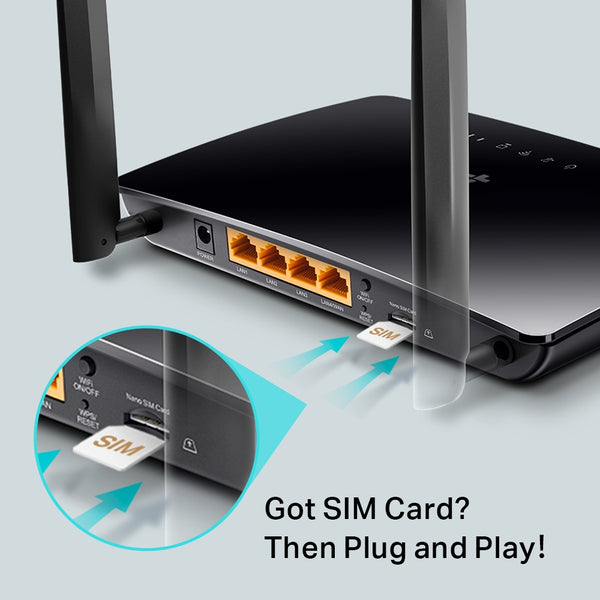

Plug a SIM card and play: No configurations needed, compatibility of SIM cards in 100+ countries are assured by years of field tests.

Two detachable advanced LTE antennas: Enjoy stable and efficient connections to every device thanks to the two external antennas.

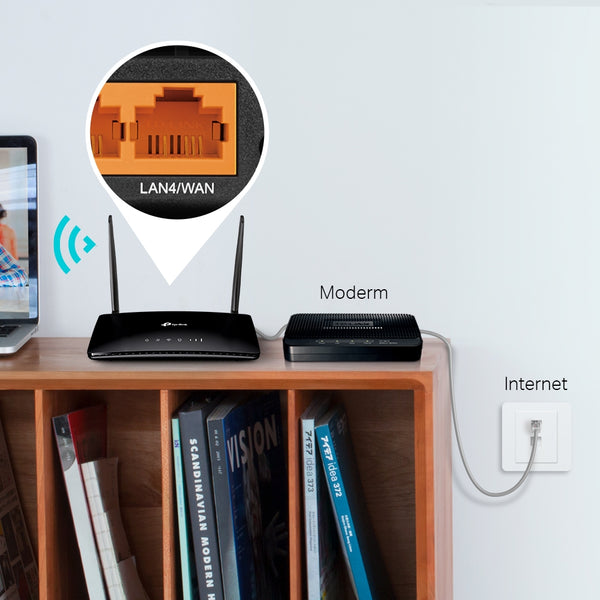

Wi-Fi router mode: Plug an Ethernet cable into the LAN/WAN port for flexible access if you can't get a 4G connection.

TP-Link TL-MR6400 V5.2 – 300Mbps Wireless N 4G LTE Router

Hardware Features

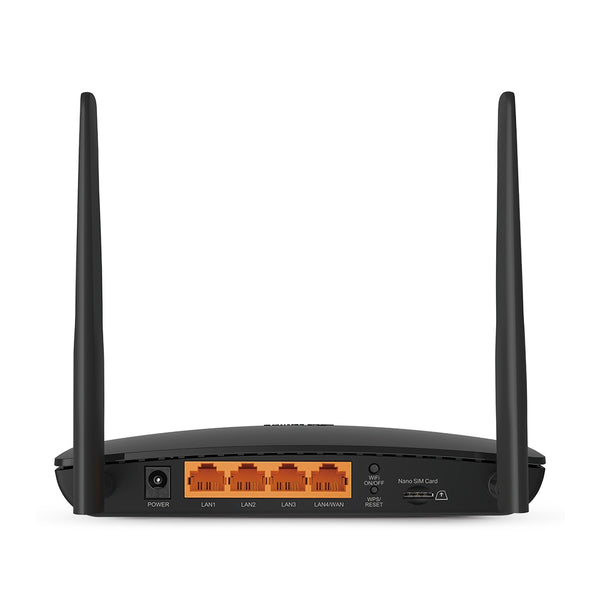

Ports
◆ 3 × 10/100 Mbps LAN Ports
◆ 1 × 10/100 Mbps LAN/WAN Port
◆ 1 × Nano SIM Card Slot

Antennas
◆ 2 × Detachable External 4G LTE Antennas

Buttons
◆ WPS/Reset Button
◆ Wi-Fi On/Off Button

Power Supply (EU)
◆ 9V / 0.85A

Dimensions
◆ 174 × 124.5 × 33.5 mm (6.85 × 4.9 × 1.32 in)

Wireless Features (N300)

Wireless Standards
◆ IEEE 802.11b
◆ IEEE 802.11g
◆ IEEE 802.11n

Frequency
◆ 2.4 GHz

Signal Rate
◆ 300 Mbps at 2.4 GHz

Transmit Power
◆ < 20 dBm (2.4 GHz)

Reception Sensitivity
◆ 11g 54M: -74 dBm
◆ 11n HT20: -71 dBm
◆ 11n HT40: -67 dBm

Wireless Functions
◆ Enable/Disable Wireless Radio
◆ Wireless Schedule
◆ WMM
◆ Wireless Statistics
◆ WAN Failover

Wireless Security
◆ 64/128-bit WEP
◆ WPA/WPA2
◆ WPA-PSK/WPA2-PSK

Mobile Network Compatibility

4G LTE (Cat4)
FDD-LTE: 800 / 900 / 1800 / 2100 / 2600 MHz
TDD-LTE: 2300 / 2500 / 2600 MHz

3G
◆ DC-HSPA+ / HSPA+ / HSPA / UMTS (900 / 2100 MHz)

Software Features

Operating Modes
◆ 3G/4G Router Mode
◆ Wireless Router Mode

WAN Connection Types
◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ PPTP (Dual Access)
◆ L2TP (Dual Access)

Quality of Service
◆ WMM
◆ QoS

Management
◆ Access Control
◆ Local Management
◆ Remote Management

DHCP
◆ DHCP Server
◆ DHCP Client
◆ DHCP Client List
◆ Address Reservation

Port Forwarding
◆ Virtual Server
◆ Port Triggering
◆ UPnP
◆ DMZ

Dynamic DNS
◆ TP-Link DDNS
◆ DynDNS
◆ NO-IP

VPN Support
◆ VPN Pass-Through (PPTP, L2TP, IPSec)
◆ VPN Server: PPTP, OpenVPN

Security & Firewall
◆ DoS Protection
◆ SPI Firewall
◆ IP & MAC Address Binding

Protocols
◆ IPv4
◆ IPv6

Guest Network
◆ 1 × 2.4 GHz Guest Network

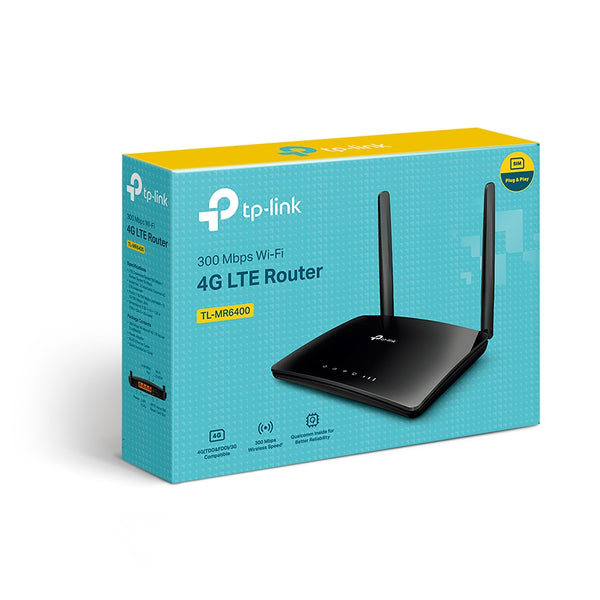

Package Contents

◆ TL-MR6400 V5.2 Router
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide

Environment

◆ Operating Temperature: 0°C – 40°C
◆ Storage Temperature: -40°C – 60°C
◆ Operating Humidity: 10% – 90% Non-Condensing
◆ Storage Humidity: 5% – 90% Non-Condensing
