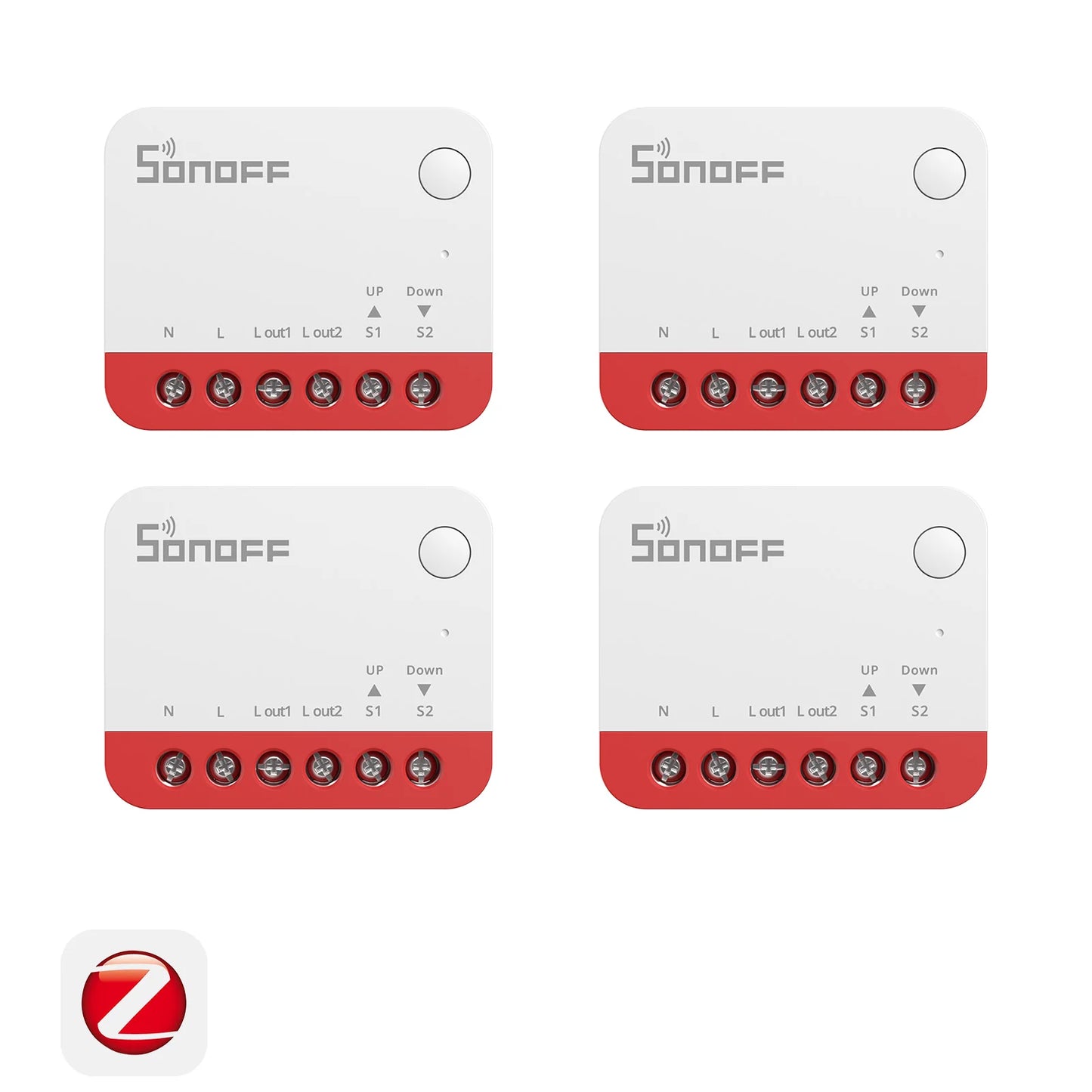

Zigbee Smart Roller Shutter Switch Modules (4 Pack) | Sonoff MINI-ZBRBS
Zigbee Smart Roller Shutter Switch Modules (4 Pack) | Sonoff MINI-ZBRBS
تعذر تحميل توفر الاستلام
The Sonoff MINI-ZBRBS is a compact Zigbee-enabled smart roller shutter switch module designed to turn ordinary motorized roller shutters, blinds, curtains, awnings, and similar shading systems into smart automation devices. These modules fit inside standard wall boxes and allow smart remote control, percentage-based positioning, scheduling, automation scenes, and Zigbee network extension — all while supporting installation behind existing physical switches.
Note: What you’re listing here is a 4 Pack (four modules) — perfect for multiple rooms or glazing zones.
✅ Verified Key Features & Capabilities
• Zigbee 3.0 Connectivity — Works with compatible Zigbee hubs and controllers for smart control via app, local scenes, and automation.
• Smart Curtain/Shutter Control — Converts conventional motorized shades/blinds to smart systems with remote control and automation.
• Precision Positioning (Percentage) — Set and control the exact position of shutters or curtains (e.g., 30 %, 50 %, 80 % open) for comfort and light optimization.
• Timer & Schedule Support — Schedule automatic open/close routines based on time or scene triggers.
• Zigbee Router Function (Repeater) — Acts as a signal repeater to strengthen and expand your Zigbee network coverage.
• Compact Design — Fits neatly inside standard wall-mounted electrical boxes without major rewiring.
• Physical Manual Switch Support — Keep or connect existing mechanical switches for local manual control along with smart control.
• Integration With Smart Platforms — Works with eWeLink Zigbee hubs and open-source Zigbee integrations (Home Assistant via ZHA or Zigbee2MQTT).
• Indoor Use Only — Designed for indoor shutter or blind motor control.
📊 Verified Technical Specifications (Per Module)
| Specification | Detail |
|---|---|
| Model | Sonoff MINI-ZBRBS |
| Product Type | Zigbee Smart Roller Shutter Switch |
| Wireless Protocol | Zigbee 3.0 |
| Rated Input Voltage | 100 V–240 V AC, 50/60 Hz |
| Max Motor Load | 1 A (for curtain/shutter motor) |
| Zigbee Function | Router (Repeater) |
| Motor Compatibility | AC tubular motors (generally 4-wire or 5-wire types) |
| Dimensions | ~39.5 × 33 × 16.8 mm |
| Net Weight | ~25.1 g |
| Material | PC housing (white) |
| Operating Temp | –10 °C to +40 °C |
| Operating Humidity | 5 %–95 % RH non-condensing |
| Certifications | CE, RoHS, FCC (depending on region) |
| Installation | Flush mount inside electrical box |
🛠 Why This Module Matters
💡 Turn conventional shading systems smart without replacing the entire motor or mechanism — simply install MINI-ZBRBS behind the existing switch.
💡 Schedule and automate based on time, scenes, or Zigbee triggers — great for energy efficiency, morning/ evening routines, and comfort.
💡 Mesh network extension means better Zigbee coverage throughout your home — particularly useful for larger houses.
💡 Precision control gives you exact shading positions for light management and privacy.
🏠 Ideal Applications
✔ Motorized roller shutters
✔ Electric curtains & blinds
✔ Awnings and shading systems
✔ Projector screens
✔ Multiple room shading automation
✔ Smart home automation scenes and routines
⚠️ Things to Know
❌ Requires a Zigbee hub — Works when paired with a Zigbee controller (e.g., eWeLink Zigbee hub, NSPanel Pro, ZBDongle + Home Assistant).
❌ Neutral wire required for proper installation in many cases (typical for roller shutter modules).
❌ Indoor installation only — not designed for outdoor exposure.
❌ Not a standalone RF or Wi-Fi device — Zigbee protocol only.
📦 What’s Included in 4 Pack
• 4 × Sonoff MINI-ZBRBS Zigbee Smart Roller Shutter Modules
• Standard installation manual (each)
• Wiring/connection guidelines
💡 Summary
The Sonoff MINI-ZBRBS (4 Pack) is a compact Zigbee smart curtain/roller shutter controller that upgrades conventional motor systems to smart shading with precision control, scheduling, automation scenes, and extended network coverage — all while fitting inside standard electrical boxes.
