2-Gang Wi-Fi Smart Switch 15A (Support Curtains) | Sonoff DUALR3

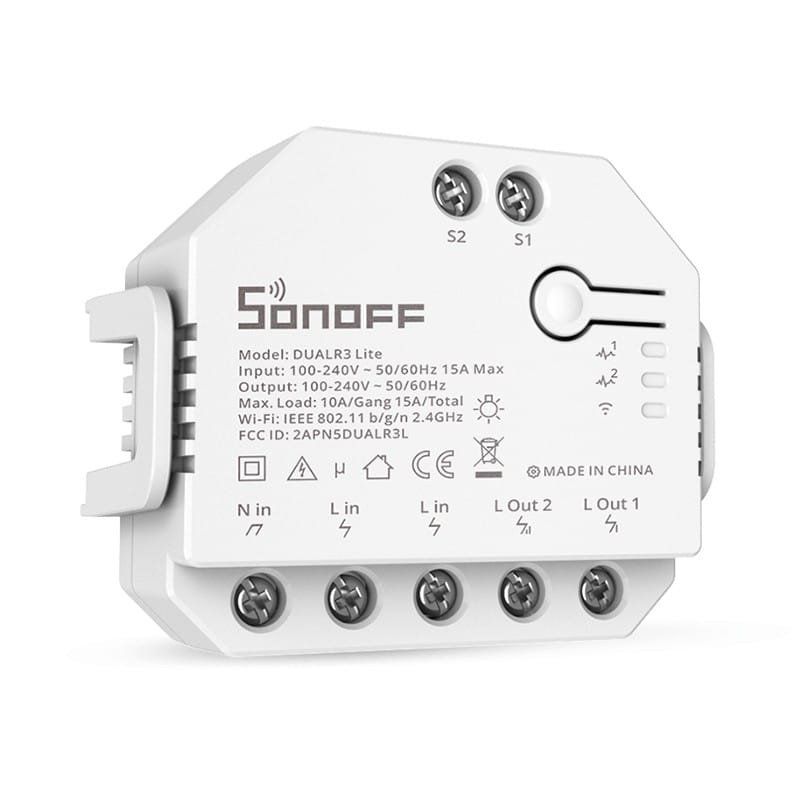

The SONOFF DUALR3 is a dual-channel Wi-Fi smart switch module that fits behind an existing wall switch. In Switch Mode it controls two lights or appliances independently, and in Motor Mode it turns a motorized curtain, blind or roller shutter into a smart device. It also measures voltage, current and power on each channel, all through the eWeLink app.
Switch Mode – Two Channels: Each of the two relays works on its own, so one module can control two separate circuits, such as two lighting lines or a light and a fan. Each channel handles up to 10A, with 15A in total.

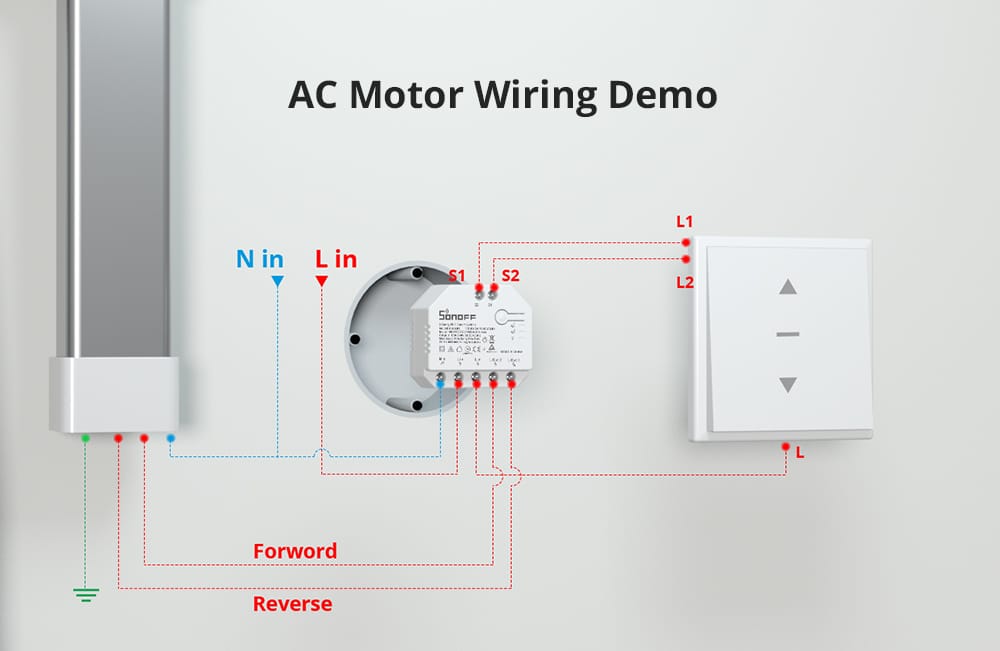

Motor Mode – Curtains and Shutters: Motor Mode controls a 100-240V AC tubular motor (four wires: ground, neutral, forward and reverse) for curtains, blinds and roller shutters. Motor load is 10-240W / 1A, and you can open or close the curtain from the app, by voice or by automation.

Power Metering per Channel: The DUALR3 measures voltage, current and power on each channel, so you can see how much energy each connected load uses and track it over time in the app.

Keep Your Wall Switches: It supports 6 types of external switch detection (including rocker, momentary and SPDT), so your existing wall switches keep working alongside app control.
App and Voice Control: Control, schedule and automate both channels in the eWeLink app over 2.4GHz Wi-Fi, or by voice with Amazon Alexa and Google Assistant.

Who it's for / Works with: Homes that want to make two existing light circuits or appliances smart, or automate a motorized curtain or roller shutter, using the eWeLink app, Amazon Alexa or Google Assistant.
Good to know: A neutral wire is required. Maximum load is 10A per channel and 15A in total; motor load is 10-240W / 1A. Wi-Fi is 2.4GHz only. Installation involves mains wiring and should be done by a qualified electrician.
Technical Specifications
| Specification | DUALR3 |
|---|---|
| Model | DUALR3 |
| Channels | 2 |
| Rated input | 100-240V~ 50/60Hz |
| Max. load (resistive) | 10A per channel, 15A total |
| Motor load | 10-240W / 1A |
| Power metering | Yes, per channel |
| Wireless | Wi-Fi IEEE 802.11 b/g/n 2.4GHz |
| Security | WPA-PSK / WPA2-PSK |
| Casing material | Fire-retardant PC V0 |
| Color | White |
| Dimensions | 54 × 49 × 24 mm |
| Operating temperature | -10°C ~ 40°C |
| Operating humidity | 5% ~ 95% RH, non-condensing |
| Certifications | TÜV, CE, FCC |
