Hikvision Hybrid Video Intercomm (Wi-Fi Screen)/ DS-KIS313-P
Hikvision Hybrid Video Intercomm (Wi-Fi Screen)/ DS-KIS313-P
Couldn't load pickup availability
Hikvision Hybrid Video Intercomm (Wi-Fi Screen)/ DS-KIS313-P

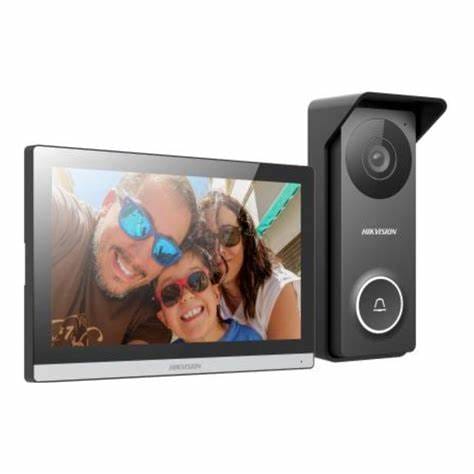

The Hikvision DS-KIS313-P is a 4-wire hybrid HD video intercom kit: an outdoor door station with a 1280 × 720 camera and a 7-inch touch screen indoor monitor, connected over a four-wire (HD-TVI) link. The monitor also joins your Wi-Fi network, so the kit can be controlled from the Hik-Connect mobile app.
HD door camera: The door station streams 1280 × 720 video at 60 fps with a wide 117° horizontal and 141° diagonal field of view. An IR supplement light reaches up to 3 m, so you can still see who is at the door after dark.
7-inch touch screen monitor: The indoor station has a 7-inch colorful TFT capacitive touch screen at 1024 × 600. Its built-in microphone and loudspeaker use noise suppression and echo cancellation for clearer two-way conversation with the visitor.
Hik-Connect mobile control: The monitor connects to your router over Wi-Fi 802.11 b/g/n. Once it is added to the Hik-Connect app, you can control the intercom from your phone, not only from the screen on the wall.
Built for the outdoor door: The door station is rated IP65 and IK08, has an aluminum alloy and plastic body, and works from -30 °C to 60 °C. It mounts on the wall surface next to the door.
Door lock control: One relay on the door station (max 30 V 1 A) lets you connect an electric lock and open the door from the intercom.
Room to grow: The indoor station supports up to 2 door stations, 2 extra indoor monitors (extensions), 1 analog camera and 2 alarm inputs. A TF card slot takes cards up to 128 GB.
Plug and play: Hikvision designs the kit as plug and play: the door station and monitor connect with four wires and both run on 12 VDC power.
Good to know
- The monitor has no wired network port; it reaches the internet and the Hik-Connect app over Wi-Fi only.
- The door station has no card reader, so it cannot open the door with access cards.
- Both units need 12 VDC power.
- Optional accessories (sold separately): DS-KABV6113-A and DS-KABH6350-T brackets.
- Hikvision also sells a DS-KIS313-P(B) version. The details on this page are the ones both versions share in Hikvision's datasheets.
- Available from متجر نصر with or without installation.
Technical Specifications
| Door station | |
| Camera stream | 1280 × 720 @ 60 fps |
| Field of view | Horizontal 117°, vertical 70°, diagonal 141° |
| Supplement light | IR, up to 3 m |
| Audio | 1 built-in omnidirectional microphone, 1 built-in loudspeaker |
| Linked indoor stations | 3 |
| Sub door station | 1 |
| Lock control | 1 relay, max 30 V 1 A |
| Button | 1 physical button |
| Power | 12 VDC, ≤ 4 W |
| Protection | IP65, IK08 |
| Material | Aluminum alloy and plastic |
| Installation | Surface mounting |
| Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% (non-condensing) |
| Dimensions (W × H × D) | 55 × 145 × 24 mm |
| Weight | 200 g (without package) |
| Indoor station | |
| Screen | 7-inch colorful TFT, capacitive touch screen |
| Resolution | 1024 × 600 |
| Viewing angle | Horizontal 160°, vertical 130° |
| Operating system | Embedded Linux |
| Audio | 1 built-in omnidirectional microphone, 1 built-in loudspeaker; noise suppression and echo cancellation |
| Audio compression | G.711U, G.711A |
| Wi-Fi | 802.11 b/g/n |
| Wired network port | None |
| Linked door stations | 2 |
| Linked indoor extensions | 2 |
| Linked analog camera | 1 |
| Alarm inputs | 2 |
| TF card | Up to 128 GB |
| Power | 12 VDC, ≤ 5 W |
| Installation | Surface mounting |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (non-condensing) |
| Dimensions (W × H × D) | 175 × 113.5 × 18.1 mm |
| Weight | 260 g (without package) |
| Menu languages | Include English and Arabic |
📄 Datasheet: Download the official Hikvision DS-KIS313-P datasheet (PDF)
