| Image Sensor |
3 MP high-definition CMOS |
| Lens Type |

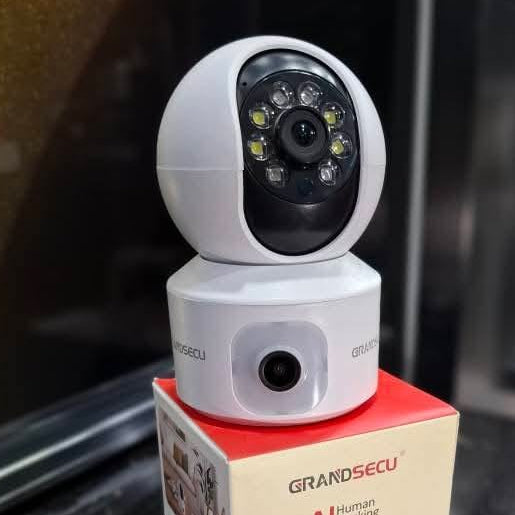

Dual lenses (PTZ + fixed) |
| Resolution |
2304 × 1296 (3 MP) |
| Viewing Angle – Fixed Lens |
Diagonal 110° / Horizontal 77° / Vertical 53° |
| Viewing Angle – PTZ Lens |
Diagonal 47° / Horizontal 40° / Vertical 21.3° |
| PTZ Range |
Pan 0° – 350° (infinite rotation), Tilt +60° ~ –20° |
| Illumination |
4 × White LEDs + 8 × IR LEDs (850 nm), up to 7 m |
| Night Vision Modes |
Full-color / IR hybrid / Smart IR with auto IR-CUT |
| Minimum Illumination |
Day 1 Lux / Night 0.01 Lux |
| Video Compression |
H.264 |
| Bitrate Range |
135 kbps – 2048 kbps (adaptive) |
| Frame Rate |
Dynamic / adjustable |
| Audio |
Two-way intercom (full-duplex) |
| Microphone Sensitivity |
–42 dB |
| Speaker Output |
8 Ω, 2 W (max) |
| Smart Functions |
Human detection, motion detection, intelligent alert filtering |
| Presets |
Up to 6 preset positions |
| Recording Modes |
24-hour, alarm-triggered, scheduled recording |
| Storage |
Micro SD card (up to 128 GB) + cloud storage |
| Connectivity |
2.4 GHz Wi-Fi (IEEE 802.11 b/g/n) + hotspot mode |
| Power Supply |
DC 5 V ⎓ 1.5 A |
| Operating Temperature |
–10 °C to +45 °C |
| Storage Temperature |
–20 °C to +60 °C |
| Firmware Updates |
Online upgrade supported |
| Other Functions |
Device sharing, identity transfer, preset calling |
| Installation |
Wireless design, easy to install |
