4 Channel DVR (Value Series) | 2MP | Hikvision DS-7104HGHI-M1/S

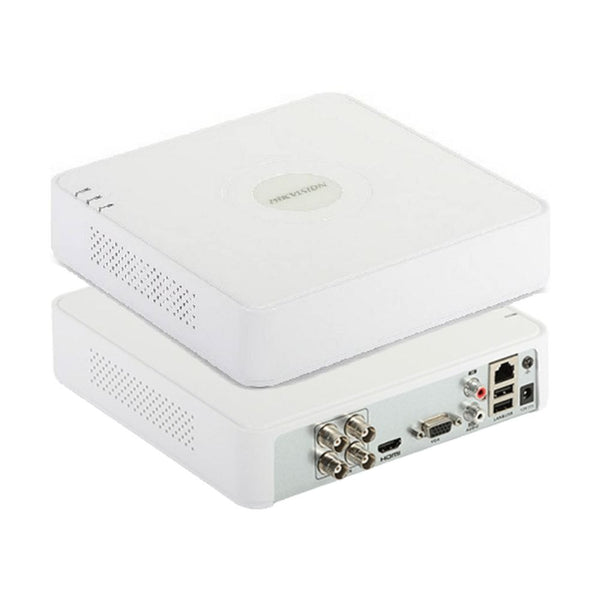

This is a Hikvision 4-channel Turbo HD DVR from the DS-7104HGHI-M1 series (Mini 1U). It records up to 4 analog cameras over HDTVI, AHD, CVI or CVBS, also accepts IP cameras, and records at 1080p Lite on all channels with H.265 Pro+ compression.
1080p Lite on every channel: All 4 analog inputs accept HDTVI, AHD and CVI cameras at 1080p or 720p, plus CVBS. All channels can record in 1080p Lite, and Hikvision states that with 1080p Lite on, the image effect is similar to 1080p.
Motion Detection 2.0: Deep learning-based Motion Detection 2.0 is enabled by default on all analog channels and classifies people and vehicles. This cuts false alarms caused by leaves or changing light, and you can search recordings quickly by target type (human or vehicle).
H.265 Pro+ compression: Supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264. H.265 Pro+ improves encoding efficiency, so the same hard disk holds more days of recording.
HDMI and VGA at the same time: The DVR has one HDMI and one VGA output, both up to 1920 × 1080, and they can be used simultaneously, for example a monitor in the office and another at reception.
Audio and remote access: Audio can travel over the coaxial cable on all 4 channels, plus one RCA audio input and one RCA output; two-way audio reuses the first audio input. Hik-Connect and DDNS make remote viewing on a phone simple to set up.
Good to know
- Recording needs a SATA hard disk; the DVR has 1 SATA interface.
- There are no PoE ports and no alarm inputs/outputs.
- The network port is 10/100 Mbps.
- Hikvision does not list a model named DS-7104HGHI-M1/S; this page uses the specifications of the DS-7104HGHI-M1 series.
- Hikvision sells this DVR in several hardware versions (DS-7104HGHI-M1, -M1(C), -M1/T), so only the specifications shared by these versions are listed here. Figures such as power consumption, dimensions and weight differ between versions; the exact model is printed on the box label.
Technical Specifications
| Series | DS-7104HGHI-M1 (Turbo HD DVR, Mini 1U) |
| Analog video input | 4-ch BNC (1.0 Vp-p, 75 Ω), coaxitron supported |
| HDTVI / AHD / HDCVI input | 1080p25, 1080p30, 720p25, 720p30 |
| CVBS input | Supported |
| Video compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| Encoding resolution | 1080p Lite / 720p Lite / WD1 / 4CIF / VGA / CIF |
| Hard disk | 1 SATA interface, up to 4 TB |
| Smart function | Motion Detection 2.0 (human and vehicle classification) |
| HDMI / VGA output | 1-ch each, up to 1920 × 1080/60Hz, simultaneous output |
| Audio | 4-ch via coaxial cable + 1-ch RCA in; 1-ch RCA out; two-way audio reuses the first audio input |
| Network interface | 1 × RJ45 10/100 Mbps |
| Network protocols | Hik-Connect, DDNS, TCP/IP, PPPoE, DHCP, DNS, NTP, SADP, SMTP, UPnP, HTTPS |
| USB | 2 × USB 2.0 (rear) |
| Power supply | 12 VDC |
| Working temperature | -10 °C to 55 °C |
📄 Datasheet: Download the official Hikvision DS-7104HGHI-M1 datasheet (PDF)
