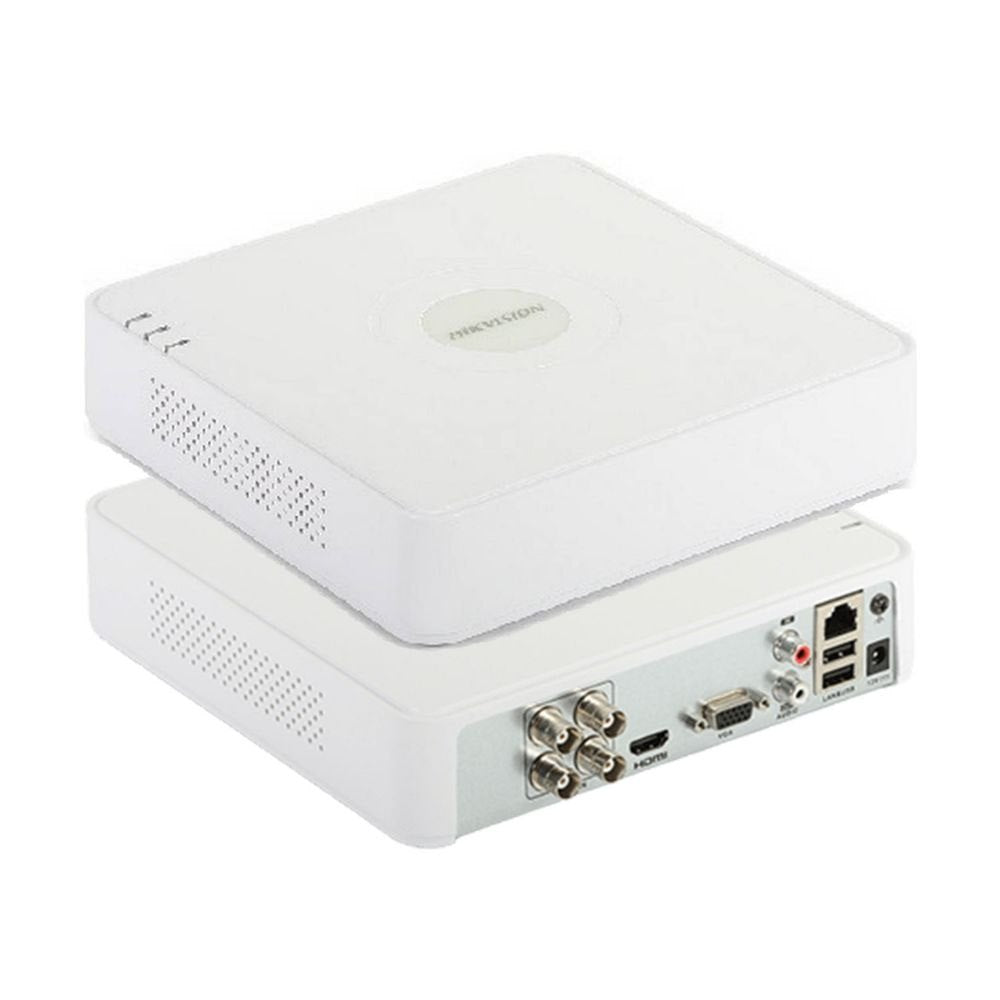

The Hikvision iDS-7104HUHI-M1/S is a 4-channel Turbo AcuSense DVR. It takes HDTVI, AHD, CVI and CVBS cameras plus IP cameras, records 8 MP at 8 fps on channel 1, and uses deep learning to tell people and vehicles apart.
8 MP recording: Channel 1 records 8 MP at 8 fps; other resolutions include 5 MP and 3K at 12 fps and 4 MP at 15 fps. HDTVI cameras are accepted up to 8 MP @ 15 fps and AHD cameras up to 5 MP @ 20 fps.
Motion Detection 2.0: Deep learning-based Motion Detection 2.0 is enabled by default on all analog channels and classifies people and vehicles. This cuts false alarms caused by leaves or changing light, and you can search recordings quickly by target type (human or vehicle).
Perimeter protection: Deep learning-based perimeter protection uses human/vehicle analysis on up to 4 channels, so perimeter alarms can be limited to people and vehicles. Hikvision notes that Motion Detection 2.0 and perimeter protection cannot be enabled at the same time.
H.265 Pro+ compression: Supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264. H.265 Pro+ improves encoding efficiency, so the same hard disk holds more days of recording.
IP cameras too: Besides the 4 analog channels, 2 IP cameras up to 8 MP can be added (up to 6 IP channels in total). With Enhanced IP mode on, 4 IP channels (up to 8) are available, each up to 4 Mbps.
Storage and remote access: One SATA interface takes a hard disk of up to 10 TB. Hik-Connect and DDNS make remote viewing simple, and the DVR can join a Wi-Fi network with a Wi-Fi dongle on its USB port.
Good to know
- Recording needs a SATA hard disk (1 SATA interface).
- Motion Detection 2.0 and perimeter protection cannot run at the same time.
- The network port is 10/100 Mbps. There are no PoE ports and no alarm inputs/outputs.
- The title model DS-7104HUHI-M1/S is listed by Hikvision as iDS-7104HUHI-M1/S (with 'i'). Hikvision sells it in more than one hardware revision (for example with a (C) suffix), so only specifications shared by the versions are listed; the exact model is printed on the box label.
Technical Specifications
| Model | iDS-7104HUHI-M1/S |
| Analog video input | 4-ch BNC (1.0 Vp-p, 75 Ω), coaxitron supported |
| Input types | HDTVI / AHD / CVI / CVBS / IP |
| HDTVI input | Up to 8 MP @ 15 fps |
| AHD input | Up to 5 MP @ 20 fps |
| Video compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
| IP camera resolution | Up to 8 MP (H.265+ / H.265 / H.264+ / H.264) |
| Smart functions | Motion Detection 2.0 (human/vehicle) on all analog channels; perimeter protection on up to 4 channels |
| Main stream | 8 MP @ 8 fps (channel 1 only) / 3K @ 12 fps / 5 MP @ 12 fps / 4 MP @ 15 fps / 3 MP @ 18 fps; 1080p and lower @ 25/30 fps |
| IP video input | 2-ch (up to 6-ch); Enhanced IP mode: 4-ch (up to 8-ch), each up to 4 Mbps |
| Video output | 1 × HDMI, 1 × VGA, simultaneous output |
| Audio | 4-ch via coaxial cable + 1-ch RCA in; 1-ch RCA out; two-way audio |
| Hard disk | 1 SATA interface, up to 10 TB per disk |
| Network interface | 1 × RJ45 10/100 Mbps |
| Remote connections | 32 |
| Wi-Fi | Via Wi-Fi dongle on USB |
| USB | 2 × USB 2.0 |
| Power supply | 12 VDC |
| Working temperature | -10 °C to +55 °C |
📄 Datasheet: Download the official Hikvision iDS-7104HUHI-M1/S datasheet (PDF)
