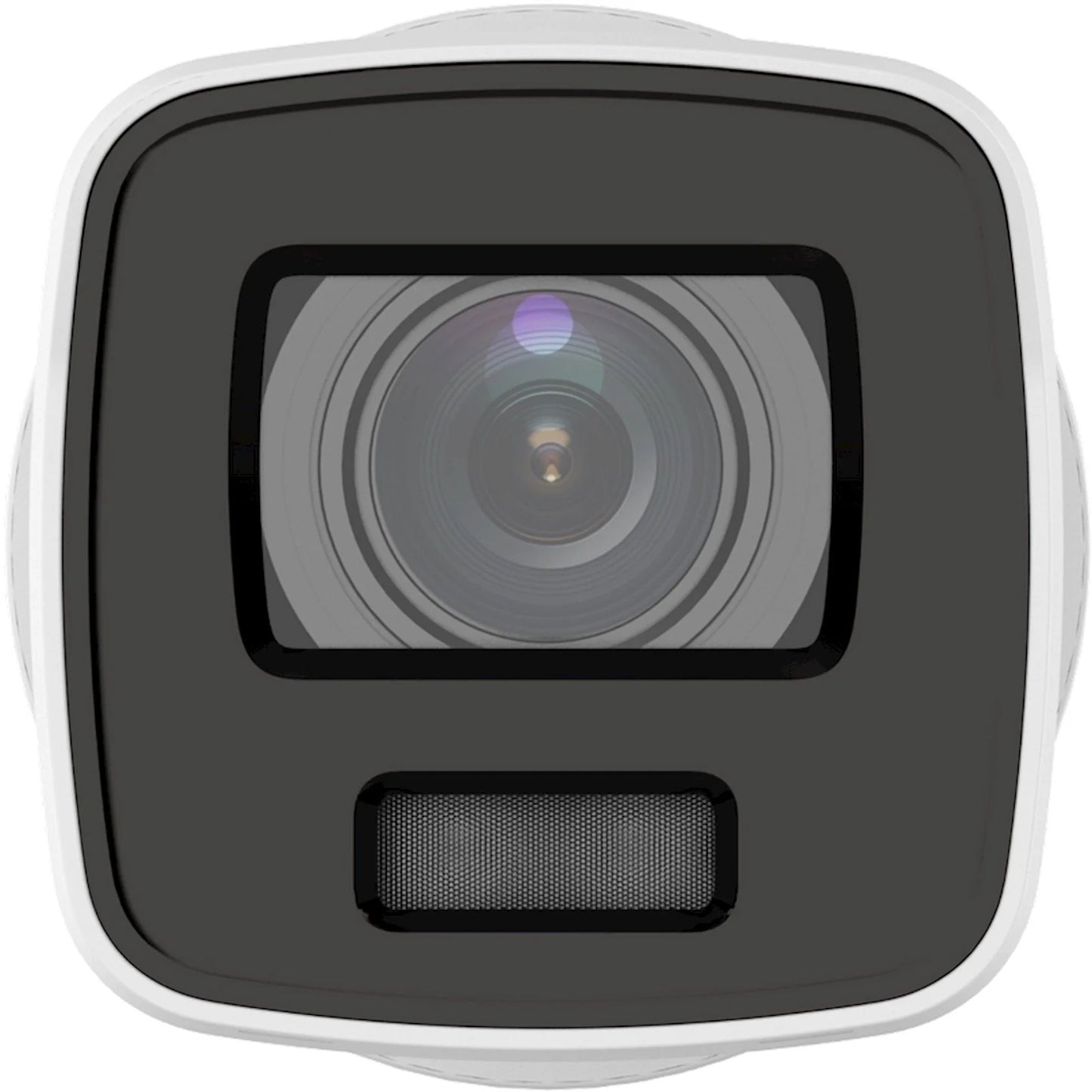

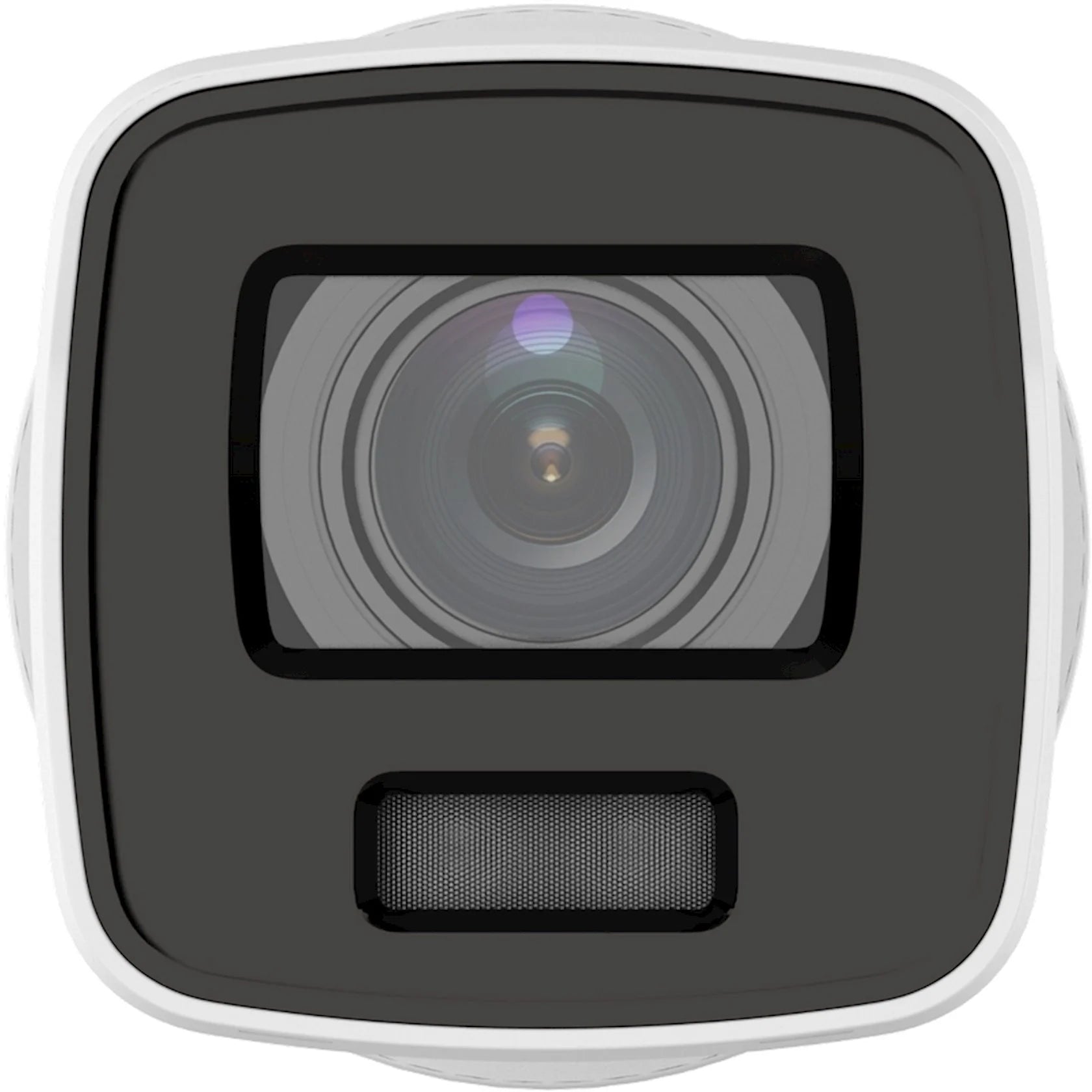

4MP ColorVu Fixed Mini Bullet Network Camera | Hikvision DS-2CD2047G2-L
4MP ColorVu Fixed Mini Bullet Network Camera | Hikvision DS-2CD2047G2-L
Couldn't load pickup availability
4MP ColorVu Fixed Mini Bullet Network Camera | Hikvision DS-2CD2047G2-L
The Hikvision DS-2CD2047G2-L is a 4 MP ColorVu bullet IP camera from Hikvision's AcuSense range. A 1/1.8" sensor, an F1.0 lens and white light up to 40 m keep the image in colour around the clock, and deep learning separates humans and vehicles from other motion.
Key Features
4 MP ColorVu Imaging: The camera records 2688 × 1520 at up to 30 fps. With a large 1/1.8" sensor and F1.0 aperture it reaches 0.0005 Lux in colour, so night footage keeps colour details such as clothing and car colour.
White Light up to 40 m: When ambient light is not enough, the smart white light reaches up to 40 m to keep the scene in colour.
Human and Vehicle Classification: Deep learning classifies human and vehicle targets for motion detection and for perimeter protection: line crossing, intrusion, region entrance and region exiting.
130 dB WDR and On-board Storage: 130 dB Wide Dynamic Range keeps detail in scenes with strong backlight. A built-in microSD/SDHC/SDXC card slot allows local recording on the camera, and H.265+ compression saves storage and bandwidth.
Who it's for / Works with
Hikvision NVRs and recorders or software supporting Open Network Video Interface (Profile S, G, T); iVMS-4200, Hik-Connect and HikCentral.
Good to know
- This -L model has no built-in microphone (that is the -LU version).
- The lens is fixed; the focal length (2.8, 4 or 6 mm) depends on the unit, so check the box label.
Technical Specifications
| Model | DS-2CD2047G2-L |
| Image sensor | 1/1.8" Progressive Scan CMOS |
| Max. resolution | 2688 × 1520 |
| Frame rate | 50 Hz: 25 fps; 60 Hz: 30 fps (2688 × 1520) |
| Min. illumination | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Lens | Fixed focal lens, F1.0 (2.8, 4 or 6 mm) |
| Field of view (2.8 mm) | Horizontal 112° |
| Supplement light | White light, up to 40 m, smart supplement light |
| Wide dynamic range | 130 dB |
| Video compression | H.265+/H.265/H.264+/H.264 (main stream), MJPEG (sub-stream) |
| Deep learning | Human and vehicle classification; line crossing, intrusion, region entrance, region exiting |
| On-board storage | microSD/microSDHC/microSDXC card slot |
| API | Open Network Video Interface (Profile S, G, T), ISAPI, SDK |
| Network | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Power | 12 VDC ± 25%; PoE (802.3af, Class 3) |
| Protection | IP67 |
| Operating conditions | -30 °C to 60 °C, humidity 95% or less (non-condensing) |
📄 Datasheet: Download the official Hikvision DS-2CD2047G2-L datasheet (PDF)
