DSPPA 40W waterproof outdoor wall mount speaker | DSP5040

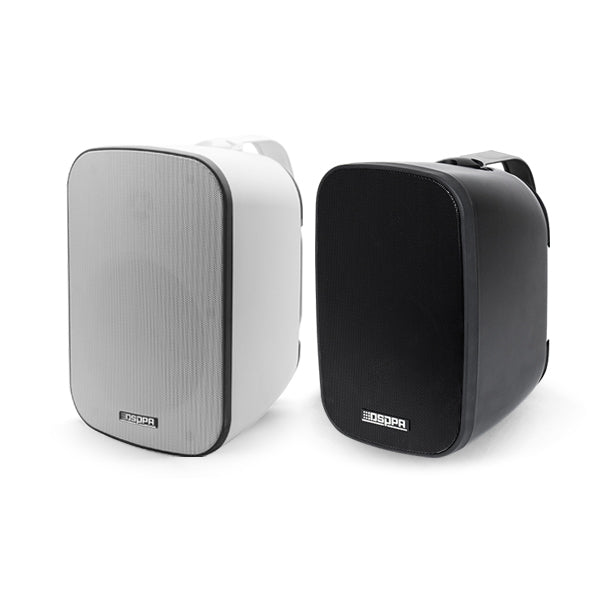

The DSPPA DSP5040 is a 40W IP66 wall-mount speaker for commercial PA systems, indoors and outdoors. It pairs a 6.5 inch graphite-cone woofer with a 1 inch silk dome tweeter and has power taps for 70V, 100V and 8 Ω.
IP66 All-Weather: The speaker is IP66 rated for indoor and outdoor use. It is made for places where it may be exposed to the weather.
OBE Bass Radiator: DSPPA's Optimal Bass Enhancement (OBE) radiator works with the woofer to strengthen the bass. The rear cover is designed to merge with the radiator.
Power Taps: On a 100V line you can choose 5, 10, 20 or 40W; on a 70V line 2.5, 5, 10 or 20W; or use it directly at 8 Ω. This lets you set the level of each speaker in the system.
Hidden Connections: The rear cover hides the Euroblock connector and the bypass selector (PA transformer). Wiring uses pluggable terminal blocks.
Quick Installation: The speaker installs quickly with waterproof brackets.
Who it's for / Works with
Constant-voltage (70V / 100V) PA amplifiers or 8 Ω amplifiers. DSPPA lists schools, offices, hotels, stations and meeting rooms.
Technical Specifications
| Model | DSP5040 |
| Power handling (RMS) | 40W |
| Woofer | 6.5" graphite cone, rubber surround |
| Tweeter | 1" silk soft dome |
| Frequency range (±3 dB) | 90 Hz – 20 kHz |
| Max. SPL | 102 dB ±3 dB |
| Sensitivity | 86 ±3 dB |
| Taps at 70V | 2.5W – 5W – 10W – 20W |
| Taps at 100V | 5W – 10W – 20W – 40W |
| 8 Ω | 40W |
| Impedance | 8 Ω |
| Termination | Pluggable terminal blocks |
| Attachment | Brackets |
| Housing | ABS |
| Protection | IP66 |
| Dimensions (H × W × D) | 285 × 200 × 195 mm |
📄 Datasheet: Download the official DSPPA DSP5020 / DSP5040 / DSP5050 datasheet (PDF)
