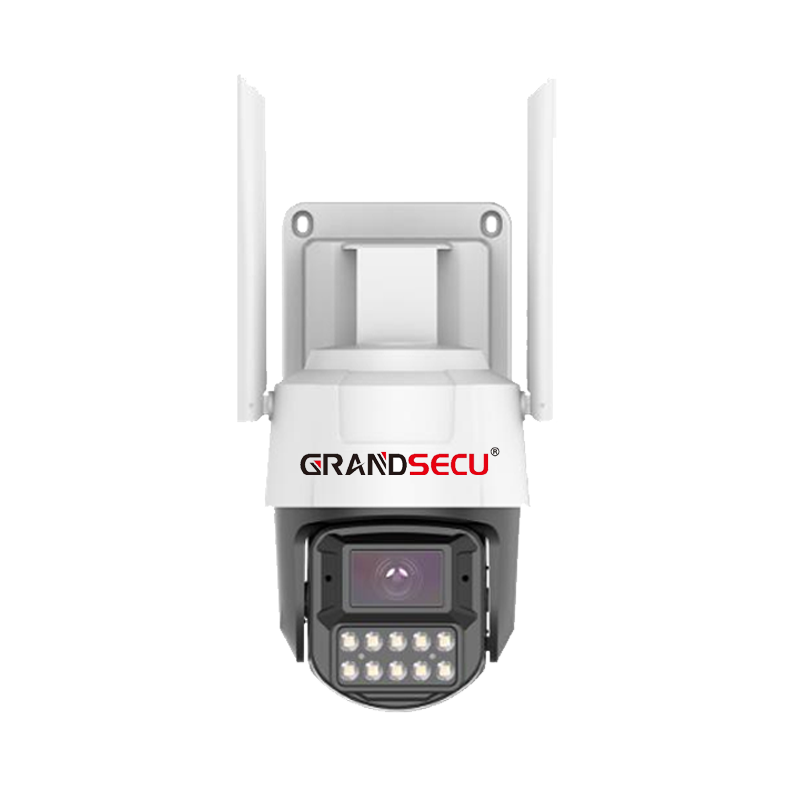

4MP Outdoor WiFi PT Camera | GS-X58-RH4W | GrandSecu
The GS-X58-RH4W is a 4MP WiFi dome (PT/tilt style) security camera designed for outdoor use with smart AI features, dual-light night vision, storage support, and modern connectivity.
✅ Highlights & Features
4 MP resolution (2560 × 1440), providing crisp detail and clarity
Full-view / wide coverage with pan and tilt motion (for large area surveillance)
AI processing via 1T computing power NPU, enabling precise human detection and tracking
Smart dual-light night vision: offers full-color mode + IR / standard night (for low-light environments)
Can act as a WiFi hotspot (for setup or direct connection)
Supports RJ45 / Ethernet connection if needed
Uses P6S protocol for NVR integration
ONVIF support for interoperability with many IP/NVR systems
Built-in sound alarm / voice alerts — supports custom voice or Text-to-Speech recording
Auto-track a detected human shape and then return to “guard position”
Supports up to 512 GB microSD (TF) card for local recording
IP65 rated — good for outdoor environments
Operates at temperatures from –10 °C to +55 °C
📋 Full Specification Summary
Parameter
Detail
Image Sensor & Video
1/2.9" CMOS sensor, 4MP effective, supports H.264 / H.265 encoding
Frame Rate / Bitrate
1–20 fps selectable; bitrate from 256 kbps up to 12,288 kbps
Minimum Light
0.01 Lux in color mode (with light)
Pan / Tilt & Movement
Motorized PT movement; supports “return after track”
Night Vision / Lighting
Dual-light mode: full-color light + IR (automatic / smart)
Audio
G.711u / G.711a encoding; supports external speaker (8Ω, up to 2 W)
Detection & Alarm
Human shape detection, motion detection, voice alarm, capture, email alerts
Connectivity
WiFi (2.4 GHz) with external antenna + RJ45 Ethernet
Protocols
ONVIF, P6S protocol, TCP/IP, HTTP, CGI, RTSP, DHCP, NTP, etc.
Storage
microSD (TF) up to 512GB
Power Supply
DC 12V
Operating Conditions
–10 °C to +55 °C; IP65 weather protection
Housing / Body
Plastic dome style, approx. 3.5″ casing
Weight / Dimensions
~0.70 kg
