3K ColorVu Outdoor Bullet Camera | Hikvision DS-2CE10KF0T-PF
3K ColorVu Outdoor Bullet Camera | Hikvision DS-2CE10KF0T-PF
Couldn't load pickup availability
3K ColorVu Outdoor Bullet Camera | Hikvision DS-2CE10KF0T-PF

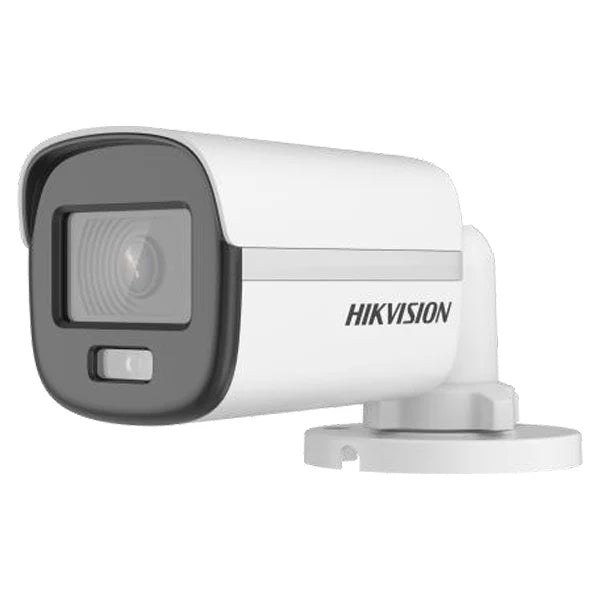

The Hikvision DS-2CE10KF0T-PF is a 3K (2960 × 1665) ColorVu mini bullet camera from the Turbo HD analog range. It records in color day and night using an F1.0 lens and white light that reaches up to 20 m, and it comes in two fixed lens options: 2.8 mm and 3.6 mm.
3K resolution: The 3K CMOS sensor records at up to 2960 × 1665. That is more pixels than a 1080p (1920 × 1080) camera, so the recording holds more detail.
24/7 color with ColorVu: The F1.0 aperture lets in a lot of light, so the camera keeps a color image in low light (0.001 Lux at F1.0). In complete darkness the built-in white light provides the light (0 Lux with white light), so the night picture stays in color instead of black and white.
White light up to 20 m: The supplement light reaches up to 20 m in front of the camera. The white light can also work as a solid-light alarm.
Two lens options: The 2.8 mm version has the wider view (102° horizontal). The 3.6 mm version has a narrower view (80° horizontal), so it covers less width but shows the area in front of it a little closer.
Four signals from one port: The video output can be switched between TVI, AHD, CVI and CVBS. This lets the same camera work with DVRs that use any of these analog signals.
Built for outdoors: The housing is rated IP67 against water and dust and works from -40°C to 60°C. The bracket adjusts on three axes (pan 360°, tilt 90°, rotation 360°) to aim the camera after mounting.
Good to know
This is an analog (Turbo HD) camera, not an IP camera: it sends video over coaxial cable to a DVR that supports TVI, AHD, CVI or CVBS. It runs on 12 VDC (max. 2.5 W), and Hikvision recommends one power adapter per camera. Wide dynamic range is digital WDR (DWDR).
Technical Specifications
| Model | DS-2CE10KF0T-PF |
| Image Sensor | 3K CMOS |
| Max. Resolution | 2960 × 1665 |
| Signal System | PAL/NTSC |
| Min. Illumination | 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Day & Night | 24/7 color imaging |
| Lens Options | 2.8 mm or 3.6 mm fixed focal lens |
| Field of View (2.8 mm) | Horizontal 102°, vertical 56°, diagonal 122° |
| Field of View (3.6 mm) | Horizontal 80°, vertical 45°, diagonal 96° |
| Lens Mount | M12 |
| Supplement Light | White light, up to 20 m |
| Frame Rate | TVI: 3K@20fps, 4 MP@25fps/30fps, 1080p@25fps/30fps AHD: 5 MP@20fps, 4 MP@25fps/30fps CVI: 4 MP@25fps/30fps CVBS: PAL/NTSC |
| Video Output | Switchable TVI/AHD/CVI/CVBS |
| WDR | Digital WDR |
| Image Enhancement | DWDR, BLC, HLC, Global, HLS |
| Noise Reduction | 2D DNR |
| White Balance | Auto/Outdoor/Global/Manual |
| Alarm | Solid light alarm (white light) |
| Angle Adjustment | Pan 0° to 360°, tilt 0° to 90°, rotation 0° to 360° |
| Protection | IP67 |
| Material | Plastic |
| Power | 12 VDC ± 25%, max. 2.5 W |
| Operating Conditions | -40°C to 60°C, humidity 90% or less (non-condensing) |
| Dimensions | 161.1 × 70 × 70 mm |
| Weight | Approx. 238 g |
📄 Datasheet: Download the official Hikvision DS-2CE10KF0T-PF datasheet (PDF)
