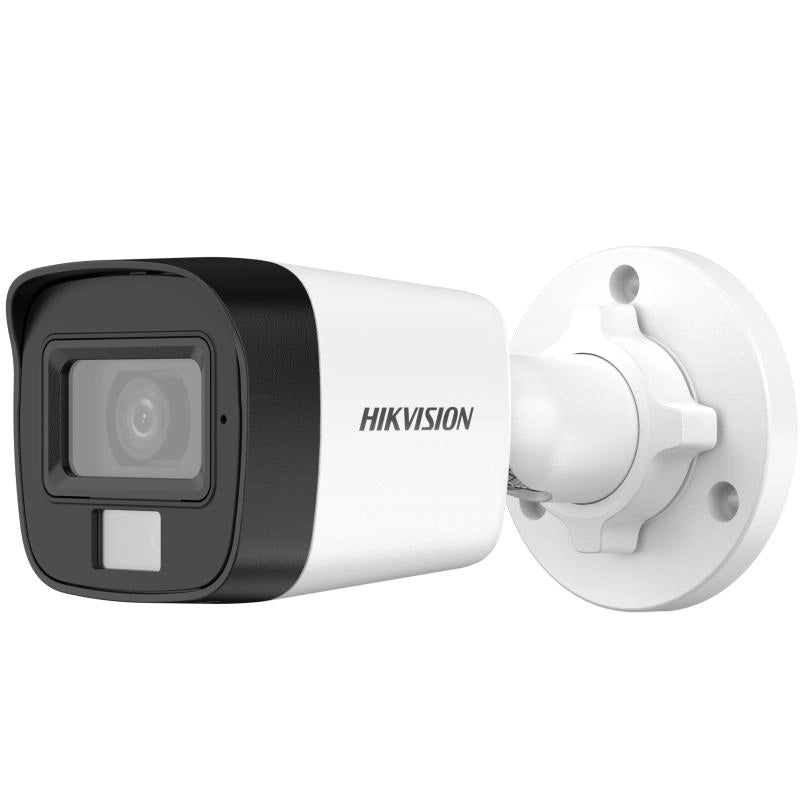

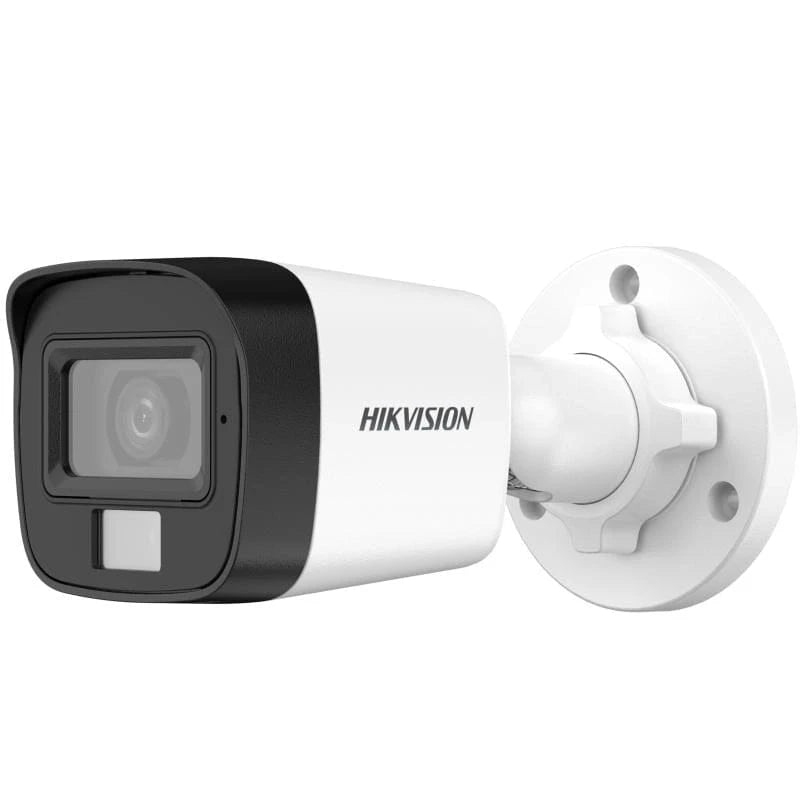

3K Smart Hybrid Light Fixed Bullet Camera | Hikvision DS-2CE16K0T-EXLPF
The Hikvision DS-2CE16K0T-EXLPF is a 3K Smart Hybrid Light fixed mini bullet camera for analog Turbo HD systems. It records 2960 × 1665, has both IR and white light with a range of up to 20 m each, and is rated IP67.
3K resolution: The 3K CMOS sensor records 2960 × 1665, which gives more detail than a 1080p camera. On TVI it records 3K at 20 fps, and it can also run 4 MP or 1080p at 25/30 fps.

Smart Hybrid Light: The camera has two light sources: IR up to 20 m and white light up to 20 m. You can choose between a black-and-white night picture with invisible IR or a color night picture with the white light.
Two lens versions: The fixed lens comes in 2.8 mm (101° horizontal) or 3.6 mm (80° horizontal). The 2.8 mm suits wide areas, and the 3.6 mm shows a bit more detail at a distance.
Works with most DVRs: The video output can be switched between TVI, AHD, CVI and CVBS, so the camera works with Hikvision Turbo HD DVRs and other analog HD recorders.

Ready for outdoor use: The plastic housing is rated IP67 for water and dust, weighs at most 150 g, and works from -40 °C to 60 °C.
Good to know
- This is an analog Turbo HD camera: it needs a compatible DVR, not an NVR.
- Power is 12 VDC ±25%, max. 4.4 W; one power adapter per camera is recommended.
- The white light is visible at night; with IR only, night video is in black and white.
Technical Specifications
| Model | DS-2CE16K0T-EXLPF |
| Image sensor | 3K CMOS |
| Max. resolution | 2960 × 1665 |
| Min. illumination | 0.02 Lux @ (F1.6, AGC ON), 0 Lux with IR |
| Lens | 2.8 mm or 3.6 mm fixed |
| Field of view | 2.8 mm: 101° (H), 64° (V), 125° (D); 3.6 mm: 80° (H), 51° (V), 98° (D) |
| Lens mount | M12 |
| Supplement light | IR and white light, each up to 20 m |
| Day/Night | ICR |
| Frame rate | TVI: 3K @ 20 fps, 4 MP and 1080p @ 25/30 fps; AHD: 5 MP @ 20 fps, 4 MP @ 25/30 fps; CVI: 4 MP @ 25/30 fps |
| WDR | Digital WDR |
| Image enhancement | DWDR, BLC, HLC, HLS |
| Video output | Switchable TVI / AHD / CVI / CVBS |
| Power supply | 12 VDC ±25% |
| Power consumption | Max. 4.4 W |
| Protection | IP67 |
| Material | Plastic |
| Dimensions | Ø 70 × 138.8 mm |
| Weight | Max. 150 g |
| Operating conditions | -40 °C to 60 °C, humidity 90% or less (non-condensing) |
