5MP Turbo HD Motorized Varifocal Bullet Camera | Hikvision DS-2CE16H0T-IT3ZF
5MP Turbo HD Motorized Varifocal Bullet Camera | Hikvision DS-2CE16H0T-IT3ZF
Couldn't load pickup availability
5MP Turbo HD Motorized Varifocal Bullet Camera | Hikvision DS-2CE16H0T-IT3ZF

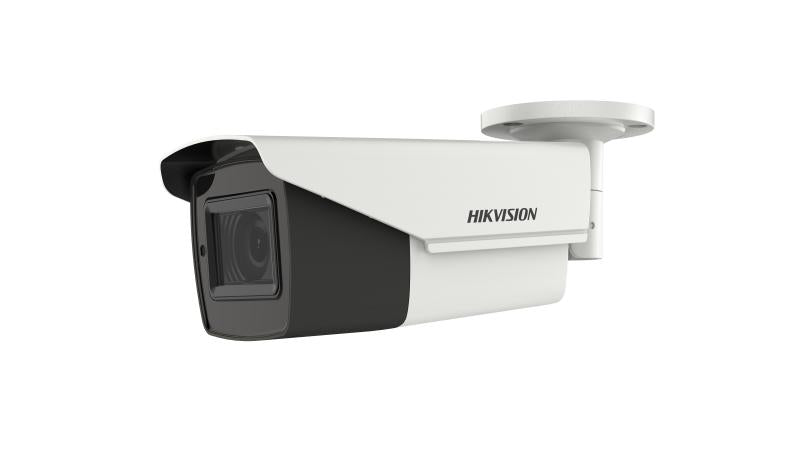

The Hikvision DS-2CE16H0T-IT3ZF is a 5 MP bullet camera for analog Turbo HD systems with a 2.7 to 13.5 mm motorized varifocal lens. It records 2560 × 1944, sees up to 40 m with IR at night, and is rated IP67 for outdoor use.
Motorized varifocal lens: The 2.7 to 13.5 mm lens changes the horizontal view from 95.7° (wide) to 29.1° (narrow). You can set a wide view of a yard or zoom in on a gate after the camera is mounted, instead of choosing a fixed lens in advance.
5 MP resolution: The 5 MP CMOS sensor records 2560 × 1944 at up to 20 fps, or 4 MP and 1080p at higher frame rates. More pixels mean more detail when you zoom into recordings.
IR night vision up to 40 m: IR lights the scene up to 40 m in darkness, with 0 Lux needed when IR is on. The IR-cut filter and Smart IR switch between color by day and black and white at night.
Works with most DVRs: One HD analog output can be switched between TVI, AHD, CVI and CVBS. Up-the-coax control (HIKVISION-C) lets you adjust settings from a compatible TVI recorder over the same coax cable.
Outdoor housing: The camera is rated IP67 against water and dust and works from -40 °C to 60 °C. The front cover is metal and the main body is plastic.
Good to know
- This is an analog Turbo HD camera: it needs a compatible DVR, not an NVR.
- Night video under IR is in black and white.
- Power is 12 VDC ±15%, max. 6.3 W.
Technical Specifications
| Model | DS-2CE16H0T-IT3ZF |
| Image sensor | 5 MP CMOS |
| Resolution | 2560 × 1944 |
| Frame rate | 5 MP @ 20 fps; 4 MP and 1080p @ 25/30 fps |
| Min. illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Lens | 2.7 mm to 13.5 mm motorized varifocal |
| Horizontal FOV | 95.7° to 29.1° |
| Lens mount | Φ14 |
| Day & Night | IR-cut filter |
| IR range | Up to 40 m |
| Menu functions | AGC, BLC, DWDR, white balance ATW/MWB, brightness, sharpness, DNR, mirror |
| Video output | 1 HD analog output, switchable TVI / AHD / CVI / CVBS |
| Communication | Up the coax, HIKVISION-C (TVI output) |
| Angle adjustment | Pan 0° to 360°, tilt 0° to 90°, rotate 0° to 360° |
| Power supply | 12 VDC ±15% |
| Power consumption | Max. 6.3 W |
| Protection | IP67 |
| Material | Front cover metal, main body plastic |
| Operating conditions | -40 °C to 60 °C, humidity 90% or less (non-condensing) |
| Dimensions | 84.5 × 92 × 255.1 mm |
| Weight | Approx. 665 g |
