5MP Turbo HD Motorized Varifocal Bullet LowLight Camera | Hikvision DS-2CE19H8T-(A)IT3ZF

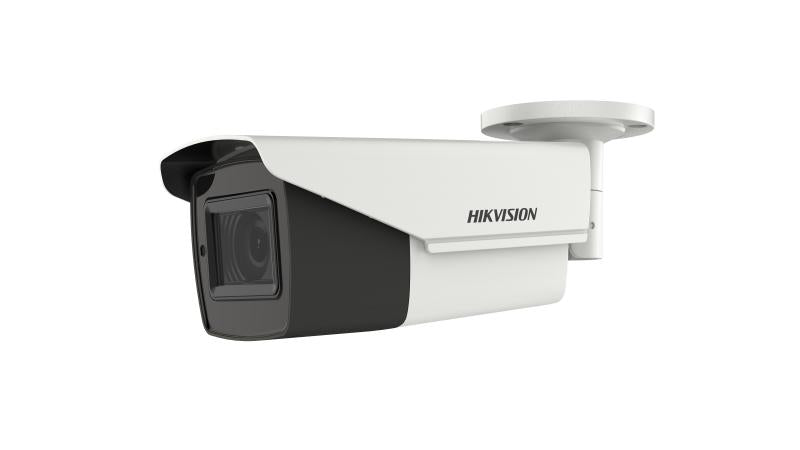

The Hikvision DS-2CE19H8T-(A)IT3ZF is a 5 MP Turbo HD bullet camera with a 2.7–13.5 mm motorized varifocal lens and auto focus. It records 2560 × 1944 video, sees up to 80 m in darkness with EXIR 2.0 infrared, and is IP67 rated for outdoor use.
Motorized varifocal lens with auto focus: The 2.7–13.5 mm lens changes the view from 92.3° wide down to 29.3° for distant detail. Zoom is motorized and the camera has auto focus, so the picture stays sharp after the view is changed.
Low-light performance: Minimum illumination is 0.003 Lux in color (F1.2, AGC ON) and 0 Lux with IR. The day/night mode can run Auto, Color or B/W, with an IR cut filter for accurate daytime color.
EXIR 2.0 up to 80 m: EXIR 2.0 with smart IR lights scenes up to 80 m away at night, which suits the long viewing distances the 13.5 mm end of the lens can reach.
130 dB true WDR and 3D DNR: True WDR of at least 130 dB balances bright and dark parts of the same scene, for example a gate with direct sunlight behind it. 3D DNR (levels 1 to 9) reduces noise in low light.
4-in-1 output and up-the-coax control: The output switches between TVI, AHD, CVI and CVBS. Over TVI the camera supports up-the-coax communication (HIKVISION-C), so its OSD menu can be opened from the DVR.
Two power versions: DS-2CE19H8T-IT3ZF runs on 9–15 VDC (max. 7.4 W). DS-2CE19H8T-AIT3ZF also accepts 24 VAC (9.6–14.4 VDC or 19.2–28.8 VAC, max. 10.5 W).
Good to know
- This is an analog Turbo HD camera: it needs a DVR that supports TVI, AHD, CVI or CVBS. 5 MP recording needs a DVR that supports 5 MP over TVI or AHD.
- Over CVI the camera outputs up to 4 MP.
- The title covers both the IT3ZF and the AIT3ZF (-A) version; the power figures differ as listed in the table.
Technical Specifications
| Model | DS-2CE19H8T-IT3ZF / DS-2CE19H8T-AIT3ZF |
| Camera type | 5 MP bullet (analog Turbo HD) |
| Image sensor | 5 MP progressive scan CMOS |
| Resolution | 2560 × 1944 |
| Frame rate | TVI: 5 MP @ 20 fps, 4 MP @ 25/30 fps, 2 MP @ 25/30 fps; AHD: 5 MP @ 20 fps, 4 MP @ 25/30 fps; CVI: 4 MP @ 25/30 fps; CVBS: PAL/NTSC |
| Min. illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Lens | 2.7–13.5 mm motorized varifocal, auto focus |
| Horizontal field of view | 92.3° to 29.3° |
| IR range | Up to 80 m (EXIR 2.0, smart IR) |
| WDR | ≥ 130 dB |
| Noise reduction | 3D DNR, level 1 to 9 |
| Privacy mask | 4 programmable privacy masks |
| Motion detection | 4 programmable areas |
| Video output | 1 HD analog output, switchable TVI / AHD / CVI / CVBS |
| Communication | Up the coax, HIKVISION-C (TVI output) |
| Power supply | IT3ZF: 9–15 VDC; AIT3ZF: 9.6–14.4 VDC or 19.2–28.8 VAC |
| Power consumption | IT3ZF: max. 7.4 W; AIT3ZF: max. 10.5 W |
| Protection | IP67 |
| Operating conditions | -40 °C to 60 °C, humidity 90% or less (non-condensing) |
| Material | Metal |
| Dimensions | 84.5 × 92 × 255.1 mm |
| Weight | IT3ZF: approx. 885 g; AIT3ZF: approx. 930 g |
📄 Datasheet: Download the official Hikvision DS-2CE19H8T-(A)IT3ZF datasheet (PDF)
