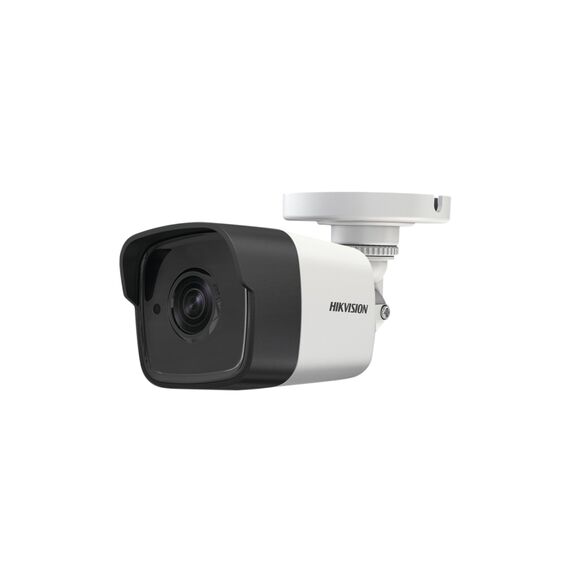

5MP Turbo HD Outdoor Bullet IR Camera | Hikvision DS-2CE16H0T-ITPF
The Hikvision DS-2CE16H0T-ITPF(C) is a 5 MP Turbo HD fixed mini bullet camera with a 2560 × 1944 image, EXIR 2.0 infrared night vision and an IP67 water- and dust-resistant plastic housing. It is an analog (coaxial) camera with switchable TVI / AHD / CVI / CVBS output, and it is available with a 2.8 mm or 3.6 mm fixed lens.


5 MP image: The 5 MP CMOS sensor delivers up to 2560 × 1944. That is more than double the pixels of a 1080p (1920 × 1080) image, so more detail is kept when you watch or zoom into recordings on your DVR.
4-in-1 video output: The output can be switched between TVI, AHD, CVI and CVBS. This means the camera can work with DVRs that use any of these analog standards.
EXIR 2.0 night vision: Built-in EXIR 2.0 infrared lighting and an IR-cut filter (ICR) switch the camera to black-and-white night mode in the dark, so it keeps recording at night without extra lighting.
Digital WDR and BLC: Digital wide dynamic range and back light compensation help in scenes with both bright and dark areas, so subjects in front of a bright background are easier to see.
Built for outdoors: The IP67-rated housing is water and dust resistant, and the camera works from -40 °C to 60 °C, so it is suited to outdoor installation.
Available lenses
We sell this camera with a 2.8 mm lens (DS-2CE16H0T-ITPF(2.8mm)(C)) or a 3.6 mm lens (DS-2CE16H0T-ITPF(3.6mm)(C)). The 2.8 mm lens gives a wider view, and the 3.6 mm lens gives a narrower view with more detail at a distance.
Good to know
This is an analog Turbo HD camera, not an IP camera: it needs a DVR that supports TVI, AHD, CVI or CVBS and is connected with coaxial cable. It is powered by a 12 VDC supply.
Technical Specifications
| Model | DS-2CE16H0T-ITPF(C) |
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2560 × 1944 |
| Lens | Fixed, 2.8 mm or 3.6 mm |
| Lens Versions Sold | DS-2CE16H0T-ITPF(2.8mm)(C), DS-2CE16H0T-ITPF(3.6mm)(C) |
| Video Output | Switchable TVI / AHD / CVI / CVBS |
| Night Vision | EXIR 2.0 infrared |
| Day & Night | ICR (IR-cut filter) |
| WDR | Digital WDR |
| Backlight Compensation | BLC |
| Communication | HIKVISION-C |
| Housing Material | Plastic |
| Protection | IP67 |
| Power Supply | 12 VDC |
| Operating Temperature | -40 °C to 60 °C |
📄 Datasheet: Download the official Hikvision DS-2CE16H0T-ITPF(C) datasheet (PDF)
