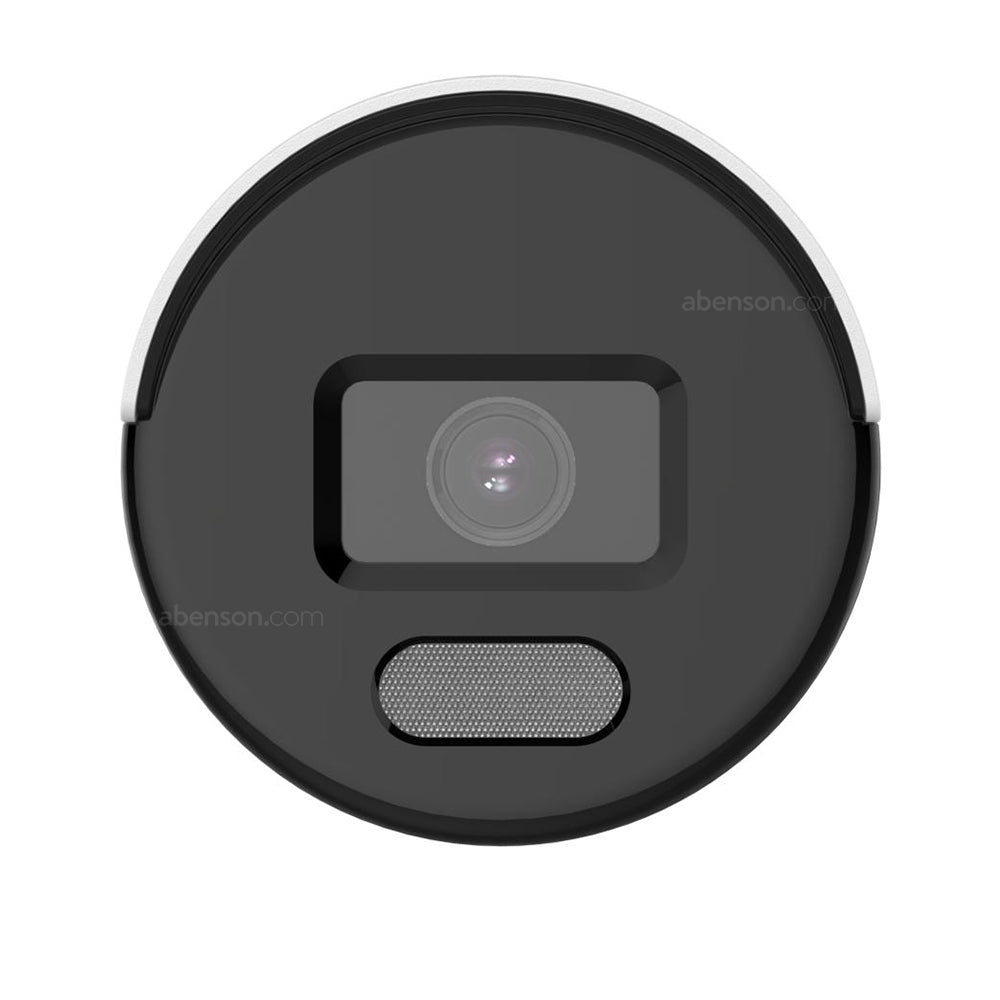

6MP ColorVu Full-Color Bullet Network Camera | Hikvision DS-2CD1067G2-L
6MP ColorVu Full-Color Bullet Network Camera | Hikvision DS-2CD1067G2-L
Couldn't load pickup availability
6MP ColorVu Full-Color Bullet Network Camera | Hikvision DS-2CD1067G2-L
The Hikvision DS-2CD1067G2-L is a 6 MP ColorVu fixed bullet network camera for indoor and outdoor use. Its F1.0 lens, sensitive 1/2.4" sensor and white supplement light (up to 30 m) are designed to keep the picture in colour 24 hours a day, at a resolution of up to 3200 × 1800.
24/7 Colour Imaging: The F1.0 aperture collects more light, and the colour minimum illumination is 0.001 Lux (0 Lux with the light on). When the scene gets too dark, the smart white supplement light, with a range of up to 30 m, keeps the image in colour instead of switching to black and white.
6 MP Resolution: The main stream records at up to 3200 × 1800 at 20 fps, with H.265+, H.265, H.264+ and H.264 compression. H.265+ lowers the bit rate, which saves hard-disk space on the recorder and network bandwidth.
Human and Vehicle Detection: Motion detection can trigger an alarm only for the selected target types, human or vehicle. Video tampering and exception alarms are also supported.
Clear Image Against Backlight: 120 dB WDR, BLC, HLC and 3D DNR help balance bright and dark areas.
Built for Outdoors: The aluminium alloy body is rated IP67 against water and dust and IK10 against impact. It works from -30 °C to 60 °C and is powered by 12 VDC or by PoE (IEEE 802.3af), so a single network cable can carry power and data.
Who it's for / Works with
ONVIF (Profile S), ISAPI and SDK for use with network video recorders and video management software, plus the Hik-Connect app and iVMS-4200 client software listed in the official datasheet.
Good to know
- This -L version has no built-in microphone and no on-board microSD slot (the datasheet lists the microphone for the U model and the memory card slot for the F model only).
- The supplement light is white light only (no IR).
- The camera is made with a 2.8 mm or a 4 mm lens; field of view and detection distances depend on the lens.
Technical Specifications
| Model | DS-2CD1067G2-L |
| Image sensor | 1/2.4" Progressive Scan CMOS |
| Max. resolution | 3200 × 1800 (6 MP) |
| Min. illumination | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light |
| Shutter time | 1/3 s to 1/100,000 s |
| Lens | Fixed focal lens, 2.8 mm or 4 mm versions, M12 mount |
| Aperture | F1.0 |
| Supplement light | White light, up to 30 m, smart supplement light |
| Main stream | 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video compression | Main stream: H.265+/H.265/H.264+/H.264; sub-stream: H.265/H.264/MJPEG |
| Video bit rate | 32 Kbps to 16 Mbps |
| WDR | 120 dB |
| Image enhancement | BLC, HLC, 3D DNR |
| Privacy mask | 4 programmable polygon privacy masks |
| Basic events | Motion detection (human and vehicle target types), video tampering, exception |
| Ethernet | 1 RJ45 10/100 Mbps self-adaptive port |
| API | ONVIF (Profile S), ISAPI, SDK |
| Simultaneous live view | Up to 6 channels |
| Client | iVMS-4200, Hik-Connect |
| Power | 12 VDC ± 25%, 0.45 A, max. 5.5 W; PoE: IEEE 802.3af, Class 3, max. 6.7 W |
| Material | Aluminium alloy body |
| Dimensions | Ø 76.6 × 164.4 mm |
| Weight | Approx. 410 g |
| Operating conditions | -30 °C to 60 °C, humidity 95% or less (non-condensing) |
| Protection | IP67, IK10 |
