8" Ceiling Speaker 35W -DSP5012
The DSPPA DSP5012 is an 8-inch coaxial two-way ceiling speaker rated at 35 W for 70 V / 100 V line systems. It covers 55 Hz to 20 kHz with a wide diffusion angle, for clear voice and music in indoor spaces.

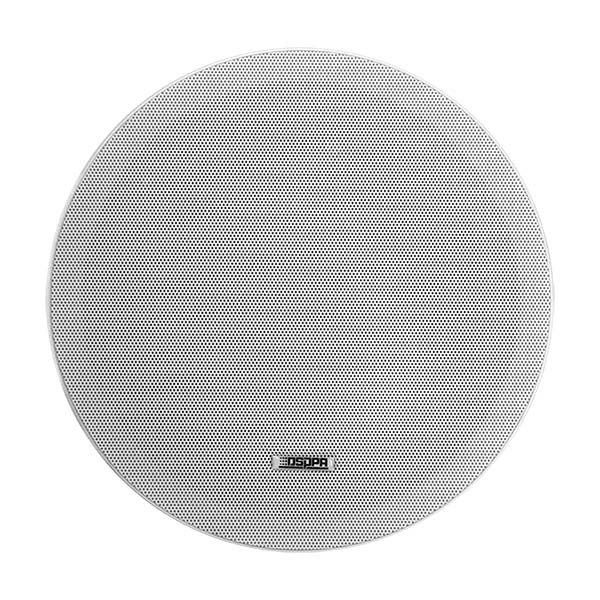

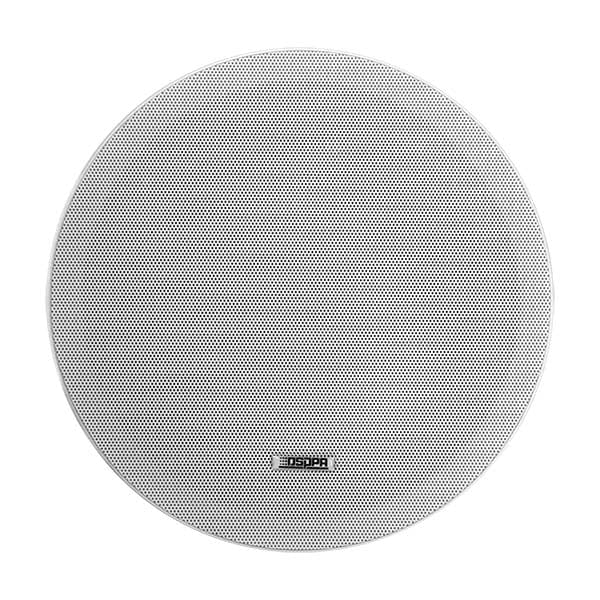

Slim frameless look. An ultra-narrow edge design with RAL white coating lets the speaker blend into indoor ceilings. Only a clean round grille is visible.

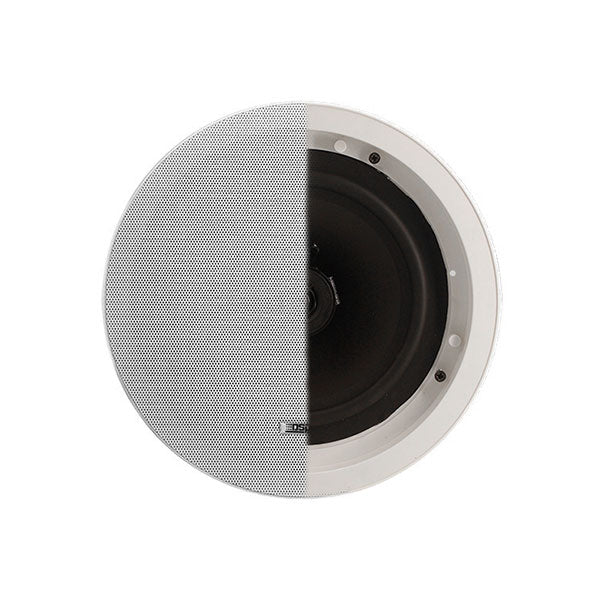

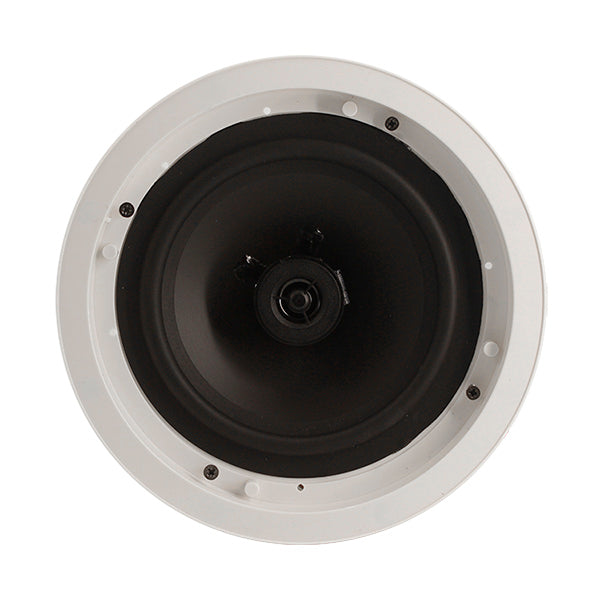

Coaxial two-way sound. An 8-inch woofer and a tweeter share one axis, and the diffractive loading of the treble spreads high frequencies wide and evenly. DSPPA lists a wide diffusion angle for clear voice and music reproduction.
Moisture-resistant woofer. The woofer cone is treated to resist water and moisture. A rear cover is available as an option for stronger low-frequency sound.
Tested for reliability. It complies with the IEC 268-5 power handling capability (PHC) standard and runs continuously for 100 hours at rated power. It also passed the SAFE test, withstanding twice the rated power for a short time.
Quick installation. Rotary clamps hold the speaker in the ceiling, so fitting is fast and the speaker stays secure. DSPPA describes the clamp design as easy to install, durable and reliable.
Who it's for / Works with
The DSP5012 connects to 70 V / 100 V line PA amplifiers. DSPPA makes an 8 Ω version under a different model code, DSP5012L.
Good to know
- The rear cover is optional; it is not confirmed as included.
- The ceiling cut-out size is not stated by DSPPA; Φ262 × 100 mm is the speaker size.
Technical Specifications
| Model | DSP5012 |
| Driver | 8" × 1, coaxial two-way |
| Rated power | 35 W |
| Line voltage | 70 V / 100 V |
| Sensitivity (1 m, 1 W) | 88 ± 3 dB |
| Max SPL (1 m) | 103 ± 3 dB |
| Frequency response | 55 Hz - 20 kHz |
| Dimensions | Φ262 × 100 mm |
| Weight | 2 kg |
| Finish | RAL white coating |
📄 Datasheet: Download the official DSPPA DSP5012 datasheet (PDF)
