UGREEN Adapter PCIe 3.0 x4 to M.2 NVME | 70503

UGREEN Adapter PCIe 3.0 x4 to M.2 NVME | 70503

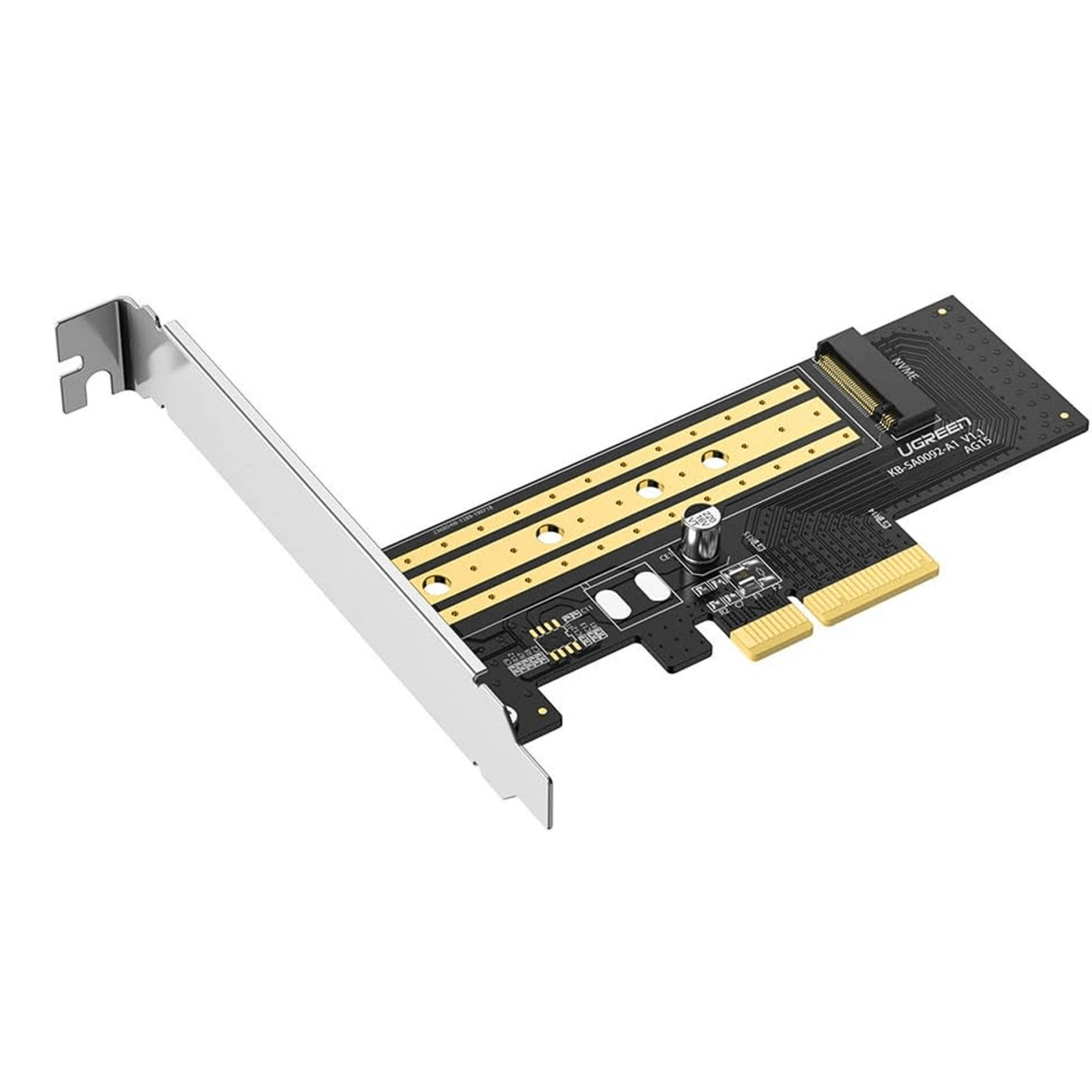

The UGREEN CM302 (item 70503) is an expansion card that lets you install an M.2 NVMe SSD in a desktop PC through a PCIe slot. It takes M-Key NVMe SSDs in 2230, 2242, 2260 and 2280 sizes and connects them over PCIe 3.0 x4 at up to 32 Gbps.

Add an NVMe SSD through a PCIe slot: If your motherboard has no free M.2 slot, or no M.2 slot at all, this card adds one through a PCIe slot. The PCIe 3.0 x4 link runs at up to 32 Gbps.

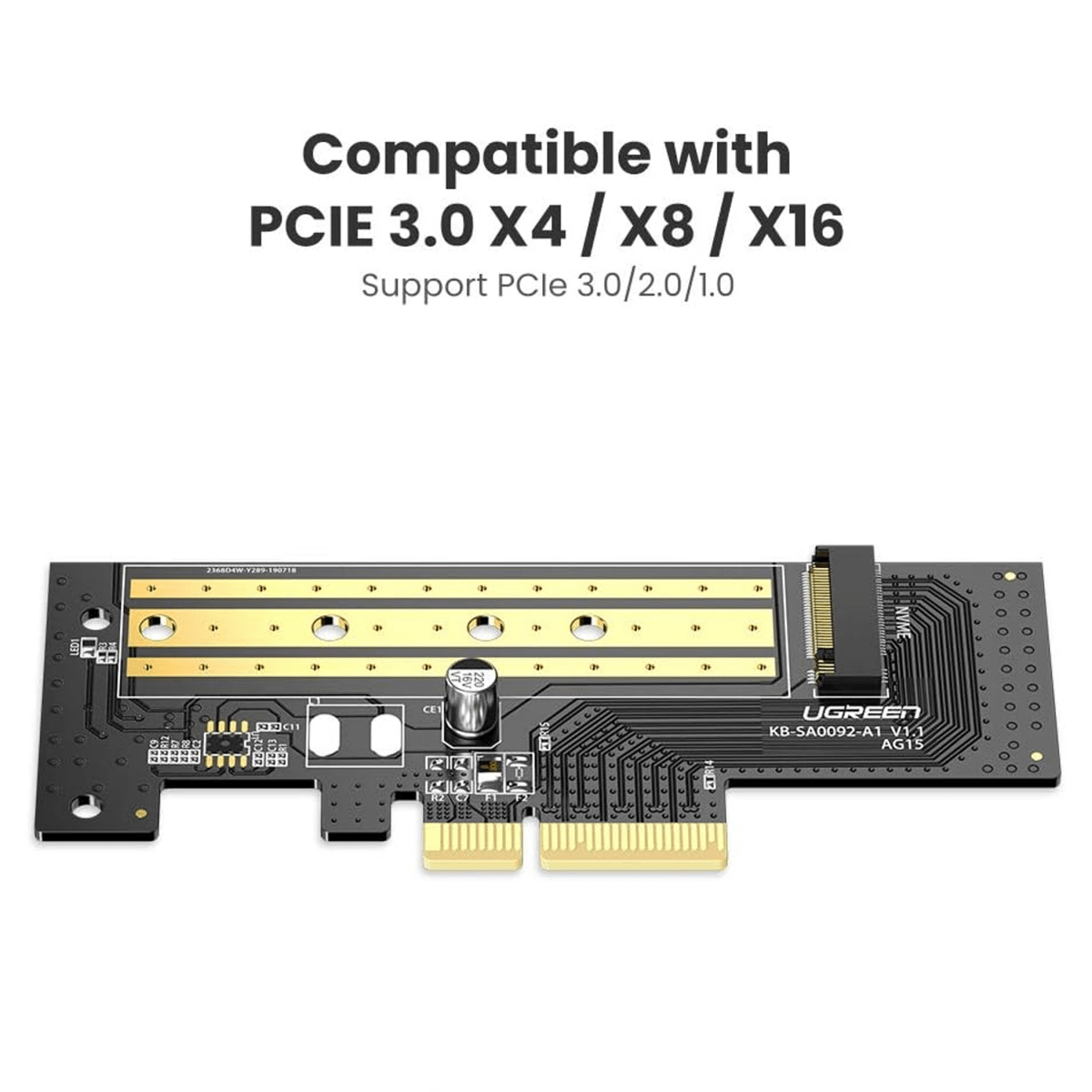

Fits x4, x8 and x16 slots: The card plugs into a PCIe x4, x8 or x16 slot and is backward compatible with PCIe 2.0 and 1.0 motherboards, so it can also be used in older desktops.

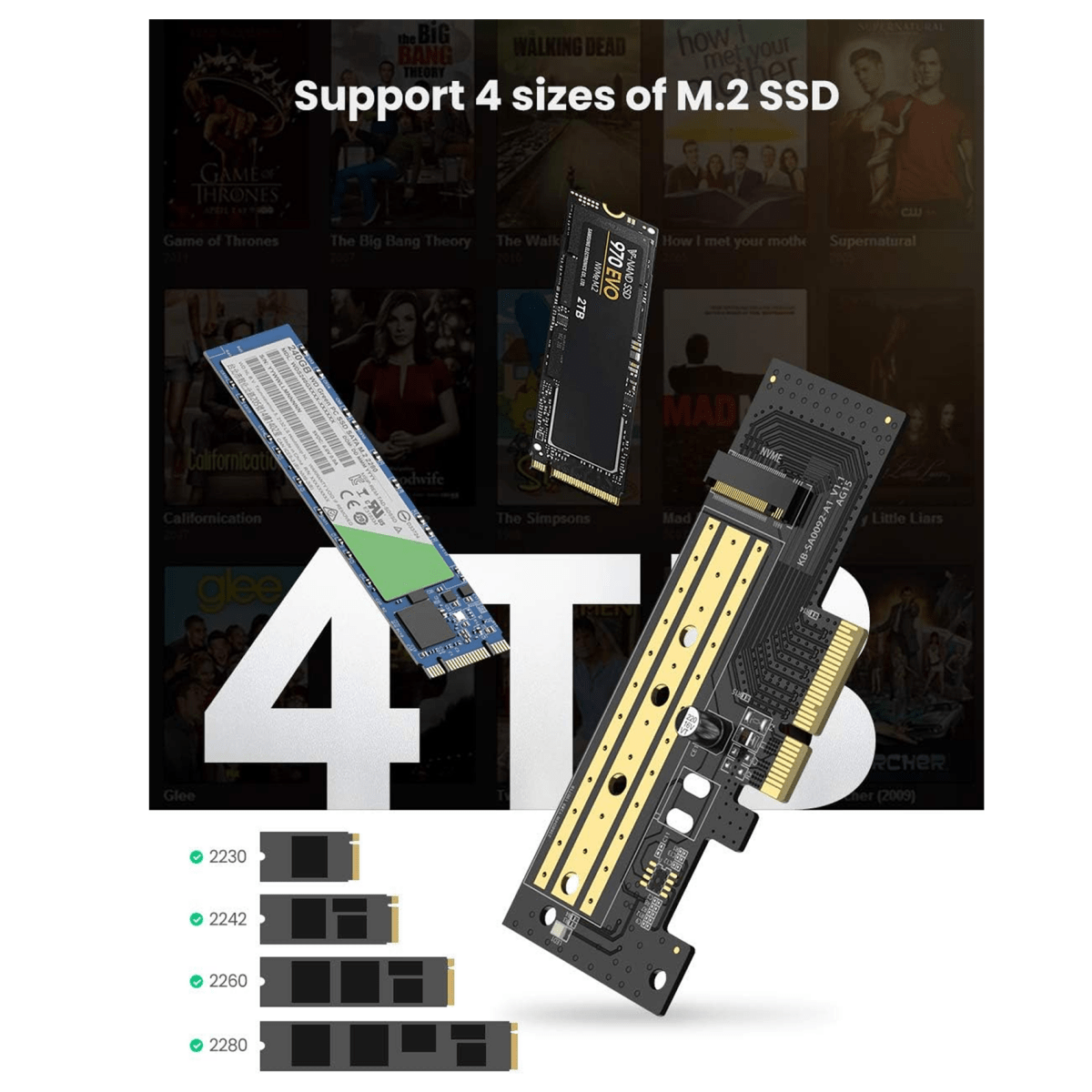

Four SSD lengths: Mounting positions for 2230, 2242, 2260 and 2280 SSDs mean the same card works with short and full-length M.2 NVMe drives.

No driver needed: On Windows and Linux the card works without installing a driver.

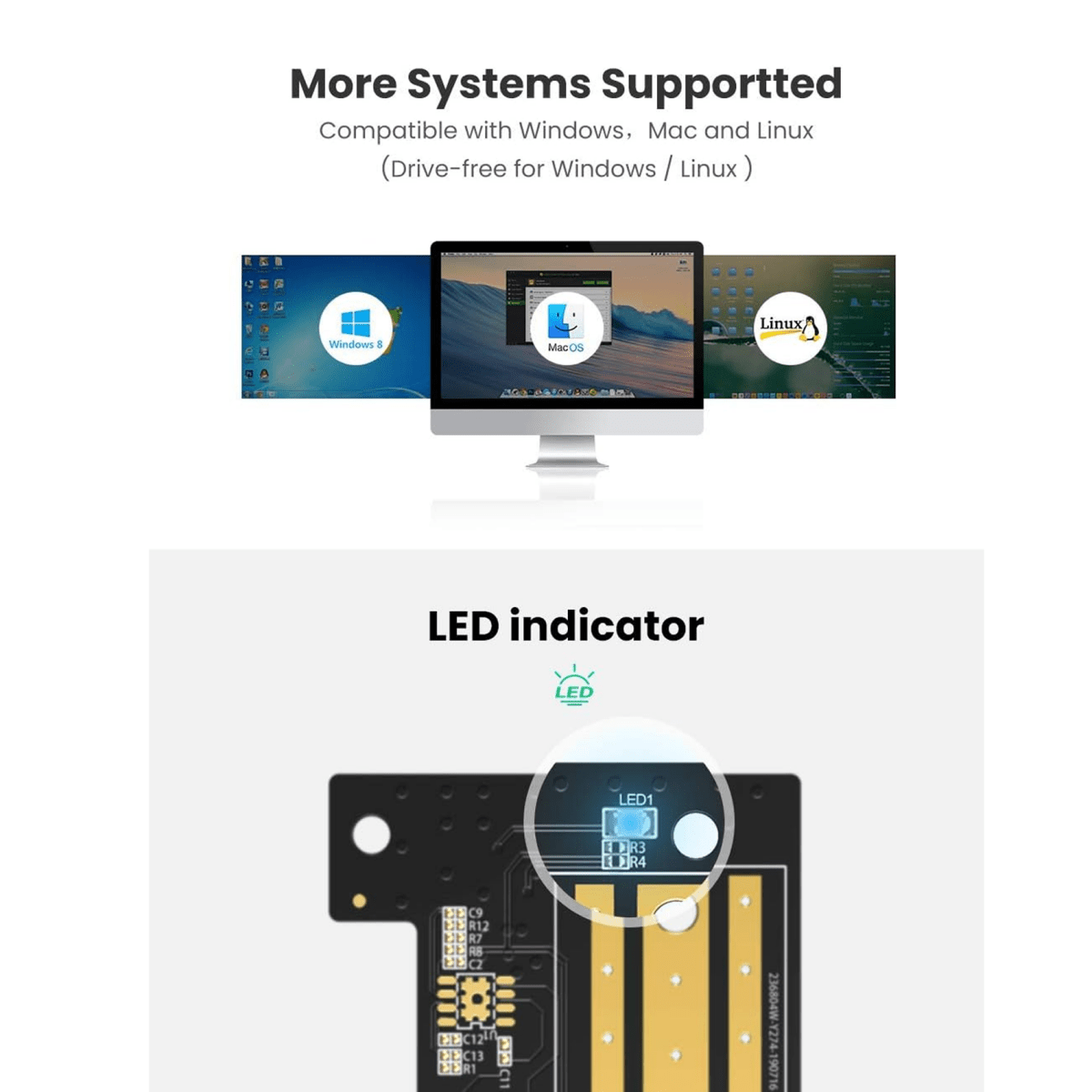

Activity LED: A status LED lights when the card is powered and flashes while data is being transferred, which helps you check that the SSD is working.

Who it's for / Works with

Desktop computers with a free PCIe x4, x8 or x16 slot, running Windows or Linux, and M.2 M-Key NVMe SSDs.

Good to know

Only M-Key NVMe (PCIe) SSDs are supported. M.2 SATA (NGFF / B-Key) SSDs do not work with this card. The card installs in a PCIe slot inside a desktop computer.

Technical Specifications
