Archer AC1200 Dual Band Wi-Fi Router, Multi-Mode 3-in-1 | Archer C54

Archer AC1200 Dual Band Wi-Fi Router, Multi-Mode 3-in-1 | Archer C54

Description:

Faster AC Wi-Fi: AC1200 dual-band is ideal for HD video streaming and high-speed downloading.

Far-Reaching Coverage: 4× antennas and Beamforming delivers extensive Wi-Fi coverage and reliable connections.

Multi-Mode 3-in-1: Supports Router, Access Point, and Range Extender modes for added flexibility.

Parental Controls: Manages when and how connected devices can access the internet.

Guest Network: Provides separate access for guests in order to secure the host network.

Smooth HD Streaming: Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming.

IPv6 Supported: Compatible with the IPv6 (the latest Internet Protocol version 6).

Compact and Mountable: Designed to conserve space and complement any décor.

TP-Link Archer C54 – AC1200 Dual-Band Router

Wireless

Standards & Protocols

◆ Wi-Fi 5 (802.11ac)
◆ IEEE 802.11ac/n/a – 5 GHz
◆ IEEE 802.11n/b/g – 2.4 GHz

Wi-Fi Speeds (AC1200)

◆ 5 GHz: 867 Mbps
◆ 2.4 GHz: 300 Mbps

Coverage

◆ Suitable for 3 Bedroom Houses
◆ 4× Fixed Antennas
◆ Beamforming for enhanced signal direction

Capacity & Modes

◆ Dual-Band
◆ MU-MIMO
◆ Working Modes:
– Router Mode
– Access Point Mode
– Range Extender Mode

Security

◆ SPI Firewall
◆ Access Control
◆ IP & MAC Binding
◆ Application Layer Gateway
◆ Guest Network (2.4 GHz & 5 GHz)
◆ Wi-Fi Encryption: WEP / WPA / WPA2 / WPA/WPA2-Enterprise (802.1x)

Hardware

◆ Processor: Single-Core CPU

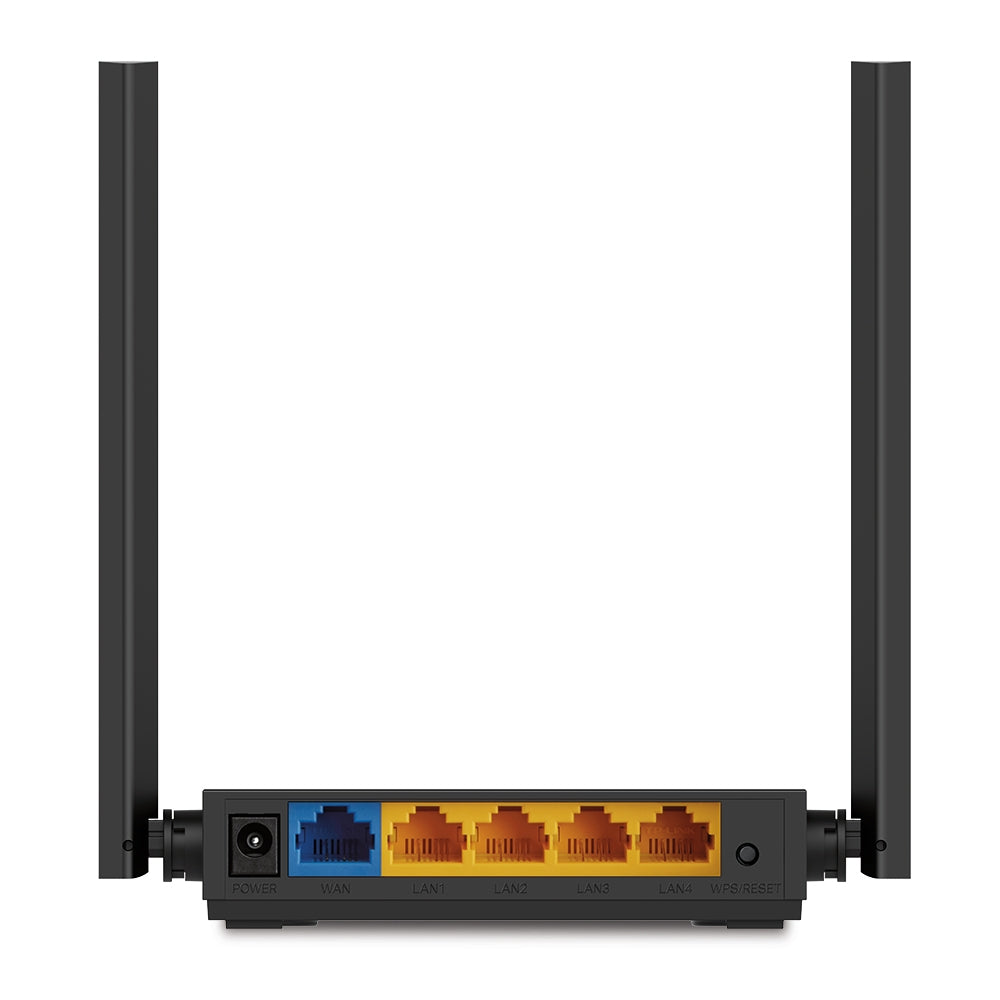

◆ 1× 10/100 Mbps WAN Port
◆ 4× 10/100 Mbps LAN Ports
◆ WPS/Reset Button
◆ Power: 9V ⎓ 0.85A

Software Features

Protocols

◆ IPv4 / IPv6

Parental Controls

◆ URL Filtering
◆ Time Controls

WAN Types

◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ PPTP
◆ L2TP

QoS

◆ QoS by Device

NAT Forwarding

◆ Port Forwarding
◆ Port Triggering
◆ DMZ
◆ UPnP

IPTV

◆ IGMP Proxy
◆ IGMP Snooping
◆ Bridge
◆ Tag VLAN

DHCP

◆ Server
◆ Address Reservation
◆ DHCP Client List

DDNS

◆ NO-IP
◆ DynDNS

Management

◆ Tether App
◆ Web Interface

Test Data

Transmission Power

◆ CE EIRP:
– <20dBm (2.4 GHz)
– <23dBm (5 GHz)
◆ FCC: <30dBm (2.4 GHz & 5 GHz)

Reception Sensitivity

5 GHz:
◆ 11a 6Mbps: -93dBm
◆ 11a 54Mbps: -78dBm
◆ 11ac HT20 MCS8: -69dBm
◆ 11ac HT40 MCS9: -66dBm
◆ 11ac HT80 MCS9: -62dBm

2.4 GHz:
◆ 11g 54Mbps: -78dBm
◆ 11n HT20 MCS7: -74dBm
◆ 11n HT40 MCS7: -71dBm

Physical

◆ Dimensions: 115 × 106.7 × 24.3 mm
◆ Operating Temperature: 0°C ~ 40°C
◆ Storage Temperature: -40°C ~ 60°C
◆ Operating Humidity: 10% ~ 90% Non-Condensing
◆ Storage Humidity: 5% ~ 90% Non-Condensing
◆ Certifications: FCC, CE, RoHS

Package Contents

◆ Archer C54 Router
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide
