Archer AC1200 Wireless Dual Band Gigabit Router | Archer C64

Archer C6 AC1200 Wireless MU-MIMO WiFi Router

Description:

802.11ac Wave2 WiFi – 867 Mbps on the 5 GHz band and 400 Mbps on the 2.4 GHz band

Boosted WiFi Coverage – 4 external antennas provide stable wireless connections and optimal coverage

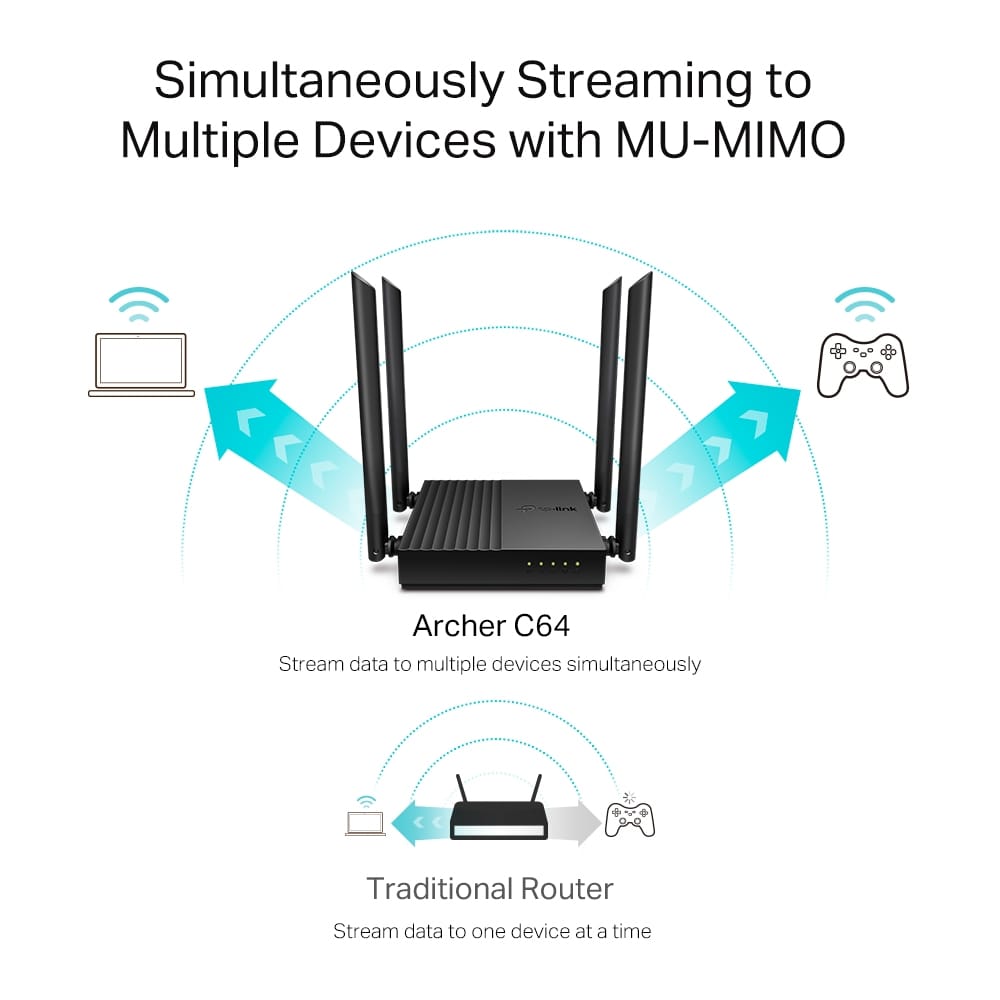

MU-MIMO – Easy network management at your fingertips with TP-Link TetherMU-MIMO achieves 2X efficiency by communicating with up to 2 devices at once

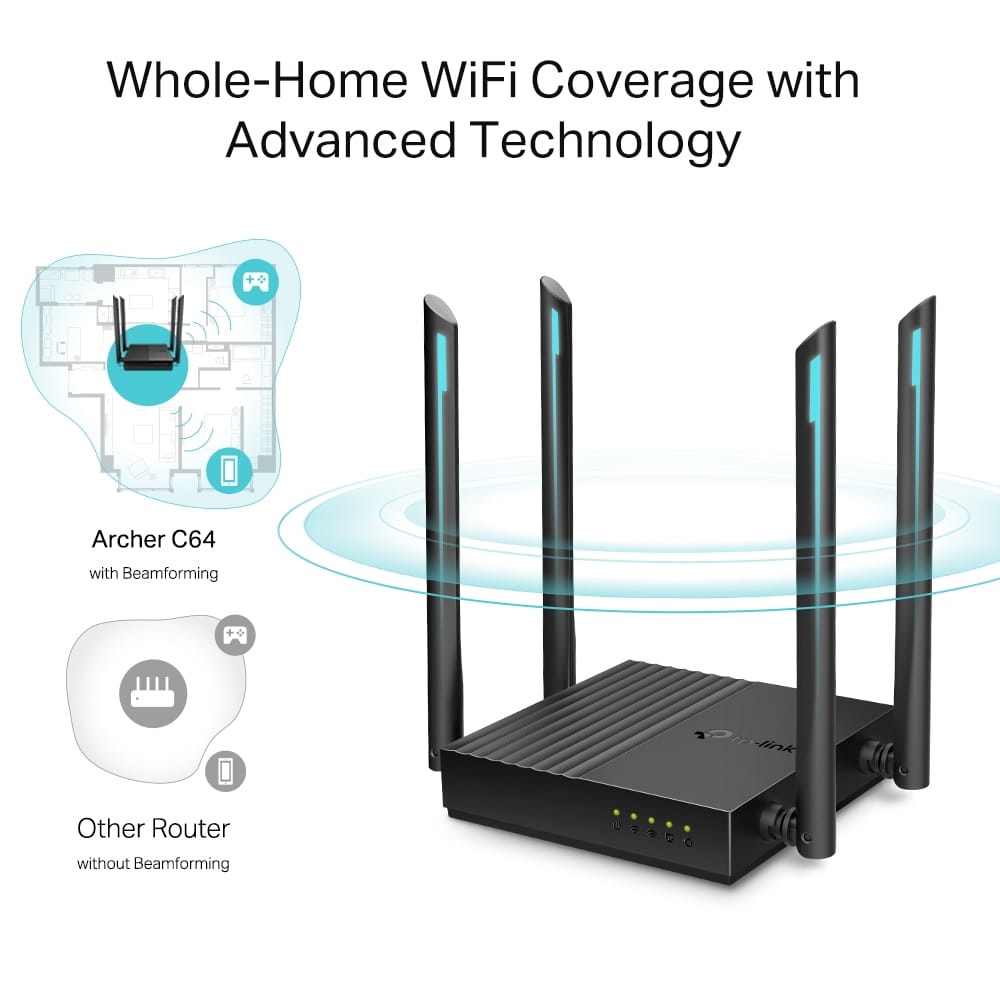

Beamforming – Beamforming technology delivers a highly efficient wireless connection

AP Mode – Supports Access Point mode to create a new WiFi access point

Intelligent Connection – Smart Connect directs clients to the less congested band and Airtime Fairness optimizes the time usage

Easy Setup – Easy network management at your fingertips with TP-Link Tether

EasyMesh-Compatible - Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage

TP-Link Archer C64 – AC1200 Dual-Band Wi-Fi 5 Router

Wireless

Standards & Protocols

◆ Wi-Fi 5 (802.11ac)
◆ IEEE 802.11ac/n/a – 5 GHz
◆ IEEE 802.11n/b/g – 2.4 GHz

Wi-Fi Speeds (AC1200)

◆ 5 GHz: 867 Mbps
◆ 2.4 GHz: 400 Mbps

Coverage

◆ Suitable for 3 Bedroom Houses
◆ 4× Fixed High-Performance Antennas
◆ Beamforming for focused signal strength

Capacity & Performance

◆ Dual-Band
◆ MU-MIMO
◆ Airtime Fairness
◆ Working Modes: Router Mode / Access Point Mode

Security

◆ SPI Firewall
◆ Access Control
◆ IP & MAC Binding
◆ Guest Network (2.4 GHz & 5 GHz)
◆ Wi-Fi Encryption: WPA / WPA2 / WPA3 / WPA/WPA2-Enterprise (802.1x)

Hardware

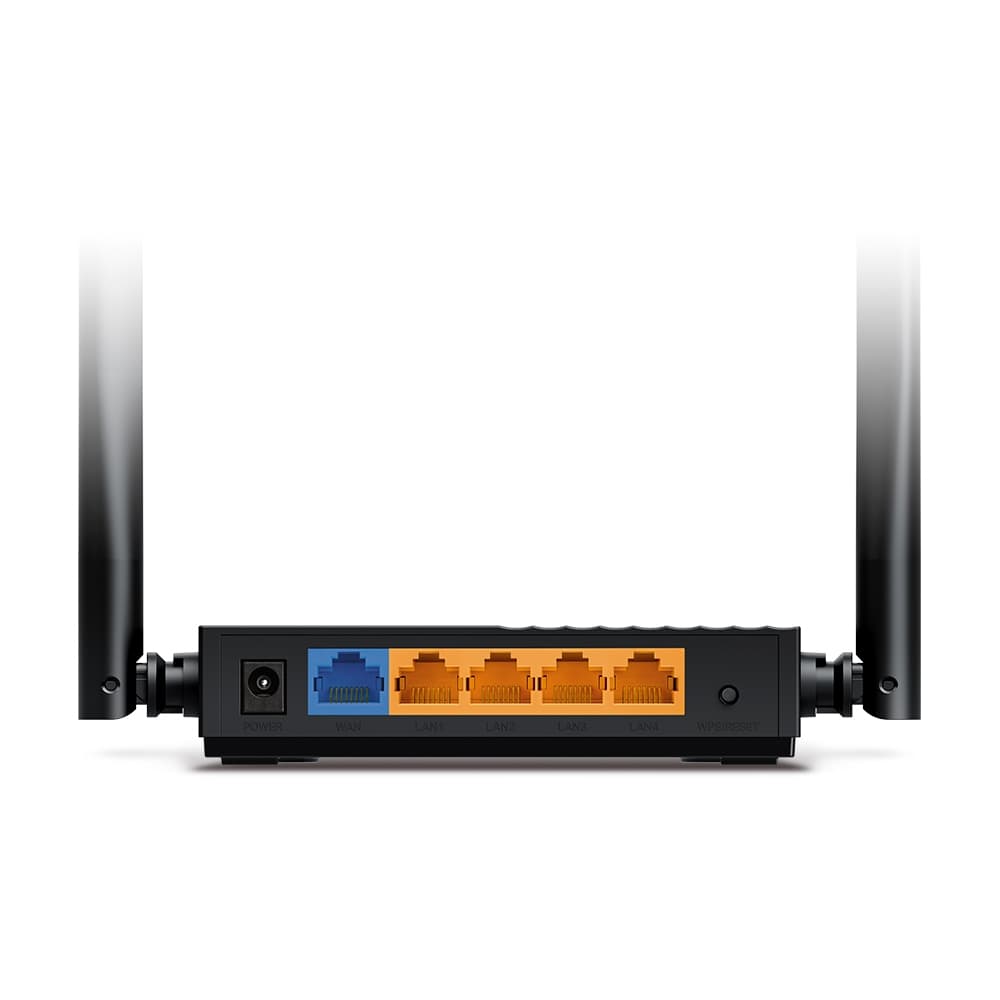

◆ 1× Gigabit WAN Port
◆ 4× Gigabit LAN Ports
◆ WPS/Reset Button
◆ Power: 12V ⎓ 1A

Software Features

Protocols

◆ IPv4 / IPv6

EasyMesh

Supports EasyMesh for seamless roaming and extended coverage with compatible devices.

Parental Controls

◆ URL Filtering
◆ Time Controls

WAN Types

◆ Dynamic IP
◆ Static IP
◆ PPPoE (Dual Access)
◆ PPTP (Dual Access)
◆ L2TP (Dual Access)

QoS

◆ QoS by Device

Cloud & DDNS

◆ OTA Firmware Upgrade
◆ TP-Link ID
◆ DDNS (TP-Link / NO-IP / DynDNS)

NAT Forwarding

◆ Port Forwarding
◆ Port Triggering
◆ UPnP
◆ DMZ

IPTV

◆ IGMP Proxy
◆ IGMP Snooping
◆ Bridge
◆ Tag VLAN

DHCP

◆ Server
◆ DHCP Client List
◆ Address Reservation

Management

◆ Tether App
◆ Web Interface

Test Data

Transmission Power

◆ CE: <20dBm (2.4 GHz), <23dBm (5.15–5.25 GHz)
◆ FCC: <30dBm (2.4 GHz & 5 GHz)

Reception Sensitivity

5 GHz:
◆ 11a 6Mbps: -95dBm
◆ 11a 54Mbps: -77dBm
◆ 11ac VHT20 MCS8: -71dBm
◆ 11ac VHT40 MCS9: -67dBm
◆ 11ac VHT80 MCS9: -63dBm

2.4 GHz:
◆ 11g 6Mbps: -96dBm
◆ 11g 54Mbps: -78dBm
◆ 11n HT20 MCS7: -77dBm
◆ 11n HT40 MCS7: -74dBm
◆ 11ac VHT20 MCS8: -73dBm
◆ 11ac VHT40 MCS9: -68dBm

Physical

◆ Dimensions: 120 × 120 × 27.9 mm
◆ Operating Temperature: 0°C ~ 40°C
◆ Operating Humidity: 10% ~ 90% (Non-Condensing)
◆ Storage Humidity: 5% ~ 90% (Non-Condensing)
◆ Certifications: CE, RoHS

Package Contents

◆ Archer C64 Router
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide
