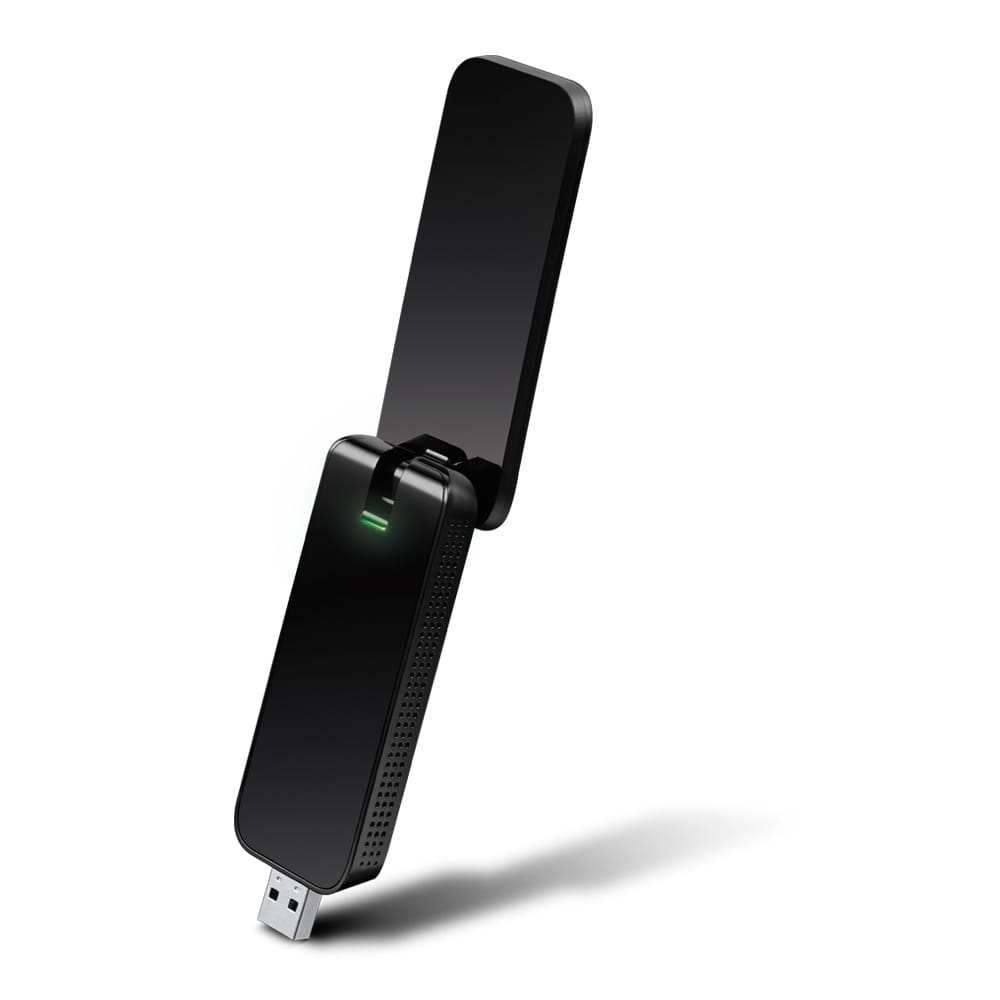

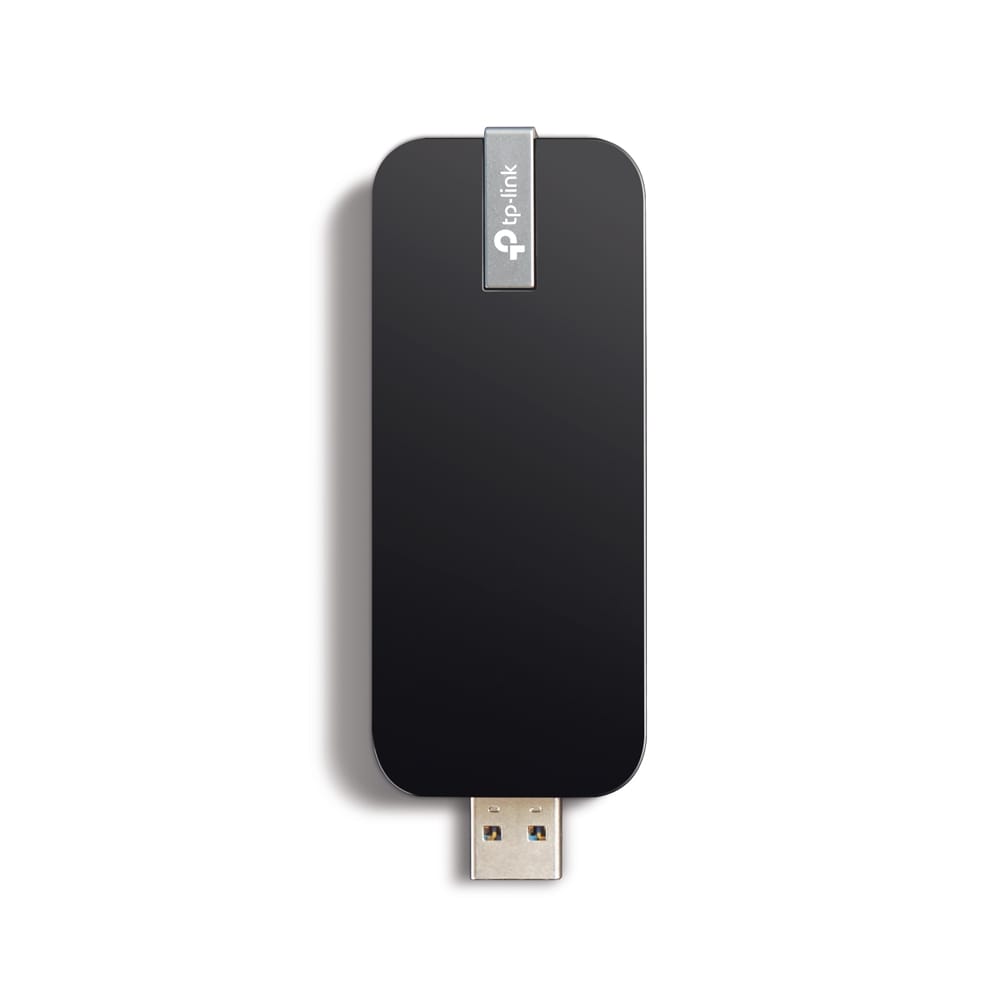

Archer AC1300 Dual Band Wireless USB Adapter| Archer T4U

◆ Ultra-fast Wi-Fi – 1300Mbps wireless speeds (400Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard*

◆ Dual Band Wireless ◆ 2.4GHz and 5GHz bands for flexible connectivity

◆ High gain antennas – Improved range, signal quality and transmission performance

◆ MU-MIMO –Delivers highly efficient wireless connection**

◆ Super Speed USB 3.0 Port ◆ Up to 10x faster transfer speeds than USB 2.0***

◆ WPS Button◆ Easy wireless security encryption at the push of the WPS button

Higher Gain,Superior Coverage,Faster Streaming

AC1300 High Gain Wireless
MU-MIMO USB Adapter
Archer T4U

Dual Band Wi-Fi for Faster Connections

Wireless AC technology means Archer T4U delivers connections that are up to 3x faster than with the previous Wireless N standard. High-speed Wi-Fi (up to 867Mbps over the 5GHz band and 400Mbps over the 2.4GHz band) means Archer T4U is able to support all your online activities, from HD video streaming to lag-free online gaming and web surfing.

High Gain Antennas for a Targeted Signal

With two high gain antennas, Archer T4U greatly extends Wi-Fi range and coverage compared to typical wireless adapter. A stable Wi-Fi network across your home makes for an ideal surfing experience.

Boosted Throughput with MU-MIMO

Thanks to MU-MIMO technology, Archer T4U can provide two simultaneous data streams, improving the throughput and efficiency of the entire network when working with a compatible MU-MIMO router.

USB 3.0 for Superior Transfer Speeds

Experience blazing-fast data transfers of up to 4.8Gbps with USB 3.0 — the latest USB connectivity standard. USB 3.0 transfers data up to 10x faster than USB 2.0 and is also backwards compatible with USB 2.0. Combined with 802.11ac Wi-Fi, USB 3.0 makes Archer T4U ideal for HD streaming, online gaming and large file downloads.

•

  Easy Setup

  Simple software installation
  with the intuitive Utility on
  the provided CD

•

  WPS Button

  Easy wireless security encryption
  at a push of the WPS button

•

  Operating System

  Supports Windows11/10/8.1/8/7,
  Mac OS 10.15 and earlier

•

  Beamforming

  Delivers targeted
  signal for highly efficient
  wireless connections

TP-Link Archer T4U

AC1300 High Gain Wireless MU-MIMO USB Adapter

━━━━━━━━━━━━━━━━━━

Hardware Features

Interface: USB 3.0
Button: WPS
Dimensions: 92.47 × 31.55 × 13.9 mm (3.64 × 1.24 × 0.55 in.)
Antennas: 2 × High Gain External Antennas

━━━━━━━━━━━━━━━━━━

Wireless Performance

Wireless Standards: IEEE 802.11ac / a / n / g / b
Frequency: Dual Band 2.4GHz & 5GHz

Speed

5GHz:
802.11ac: Up to 867Mbps
802.11n: Up to 300Mbps
802.11a: Up to 54Mbps

2.4GHz:
802.11n: Up to 400Mbps
802.11g: Up to 54Mbps
802.11b: Up to 11Mbps

Transmission Power: <20dBm (EIRP)

Reception Sensitivity

5GHz:
11a 6Mbps: -91dBm
11a 54Mbps: -77dBm
11n HT20: -74dBm
11n HT40: -71dBm
11ac HT20: -70dBm
11ac HT40: -66dBm
11ac HT80: -62dBm

2.4GHz:
11b 11Mbps: -86dBm
11g 54Mbps: -74dBm
11n HT20: -72dBm
11n HT40: -70dBm

━━━━━━━━━━━━━━━━━━

Wireless Modes & Security

Wireless Modes: Ad-Hoc / Infrastructure
Wireless Security: 64/128-bit WEP, WPA-PSK / WPA2-PSK
Modulation Technology: DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

━━━━━━━━━━━━━━━━━━

Certifications

CE, FCC, RoHS

━━━━━━━━━━━━━━━━━━

Package Contents

Archer T4U AC1300 USB Adapter
Quick Installation Guide
Resource CD

━━━━━━━━━━━━━━━━━━

System Requirements

Windows 11 / 10 / 8.1 / 8 / 7
Mac OS 10.15 and earlier

━━━━━━━━━━━━━━━━━━

Environmental Conditions

Operating Temperature: 0°C – 40°C
Storage Temperature: -40°C – 70°C
Operating Humidity: 10% – 90% Non-Condensing
Storage Humidity: 5% – 90% Non-Condensing

◆ Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) AP limitations, including rated performance, location, connection quality, and AP condition.

◆ Use of MU-MIMO requires your APs to also support MU-MIMO.

◆ Numbers are based on testing conducted by the USB-IF and your computers are required to also support USB 3.0

◆ To ensure compatibility, you may need to update the adapter’s drivers after an OS update. You can find our latest drivers in the download center at tp-link.com/en/download-center.
