AX11000 Next-Gen Tri-Band Gaming Router

Description:

Ultra-Fast Wi-Fi for Extreme Gaming – AX11000 speed machine that delivers Wi-Fi Speeds Over 10 Gbps: 4804 Mbps (5 GHz Gaming) + 4804 Mbps (5 GHz) + 1148 Mbps (2.4 GHz)¹

Game Accelerator – Detect and optimize gaming streams, to ensure your gaming stays immersive

Game Protector – Keep your accounts and documents safe with a free lifetime subscription of Homecare™ security system.⁷

Game Statistics – Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.

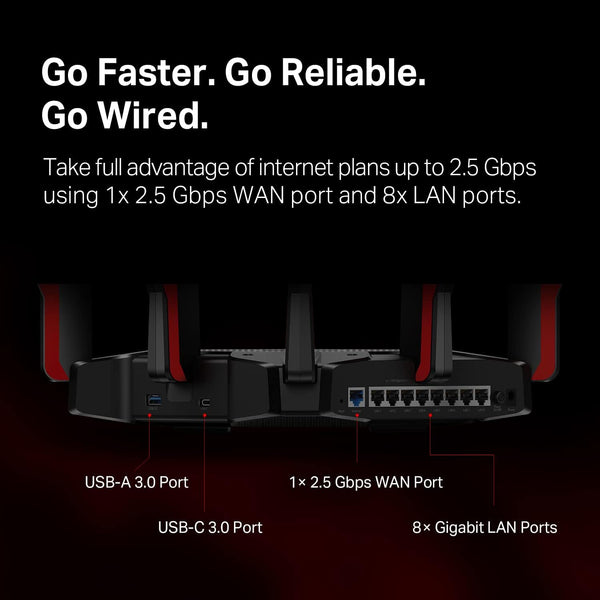

Ultra Connectivity ◆ 2.5 Gbps WAN port and eight Gigabit LAN ports, 2 USB 3.0 in Type A and Type C provide extensive connectivity.⁶

Powerful Processing – 1.8 GHz Quad-Core CPU and 3 coprocessors ensure your network performance always at peak run.

Highly Efficient – OFDMA increases the avg. throughput and reduces the lag.²

Easy and Smart – Link to your router via Bluetooth and set it up in minutes with the powerful Tether app.

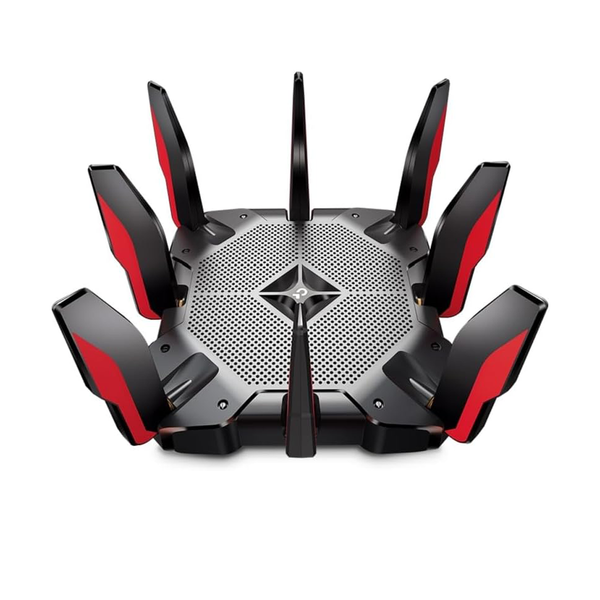

TP-Link Archer AX11000 – AX11000 Tri-Band Wi-Fi 6 Gaming Router

Wireless

Standards & Protocols

◆ Wi-Fi 6 (802.11ax)
◆ IEEE 802.11ax/ac/n/a – 5 GHz
◆ IEEE 802.11ax/n/b/g – 2.4 GHz

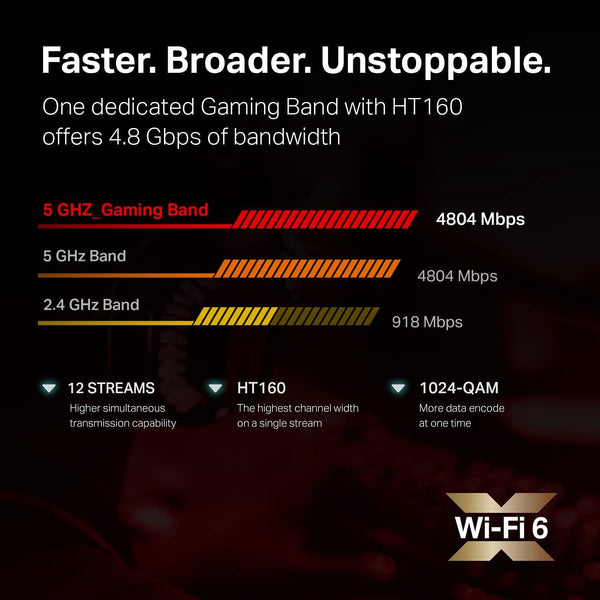

Wi-Fi Speeds (AX11000)

◆ 5 GHz: 4804 Mbps (802.11ax, HE160)
◆ 5 GHz: 4804 Mbps (802.11ax, HE160)
◆ 2.4 GHz: 1148 Mbps (802.11ax)

Wi-Fi Range

◆ Suitable for 4–6 Bedroom Houses

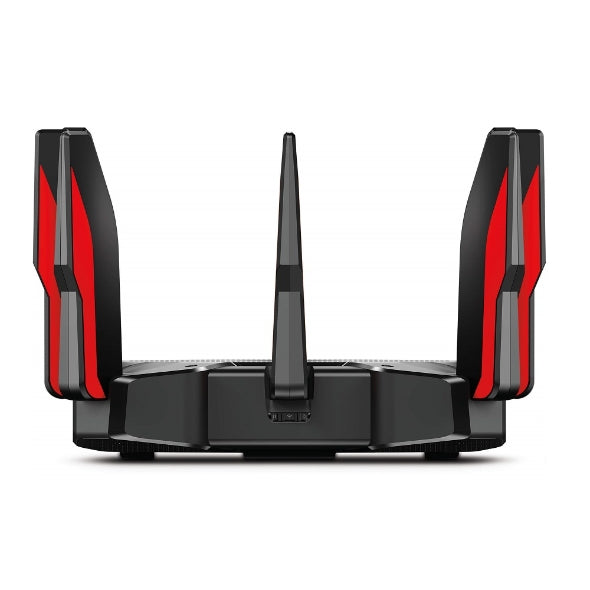

◆ 8× Detachable High-Performance Antennas
◆ Beamforming
◆ High-Power FEM
◆ 4T4R Architecture

Wi-Fi Capacity

◆ Very High
◆ Tri-Band Allocation
◆ 4×4 MU-MIMO
◆ OFDMA
◆ Airtime Fairness
◆ DFS
◆ 12 Streams

Working Modes

◆ Router Mode
◆ Access Point Mode

Security

Network Security

◆ SPI Firewall
◆ Access Control
◆ IP & MAC Binding
◆ Application Layer Gateway

HomeCare™ Security Suite

◆ Antivirus Protection
◆ Malicious Site Checker
◆ Port Intrusion Prevention
◆ Infected Device Isolation
◆ Notification & Logs

Guest Network

◆ 1× 5 GHz Guest Network
◆ 1× 2.4 GHz Guest Network

VPN

VPN Server: OpenVPN, PPTP
VPN Client: OpenVPN, PPTP, L2TP

Wi-Fi Encryption

◆ WPA / WPA2 / WPA3
◆ WPA/WPA2-Enterprise (802.1x)

Hardware

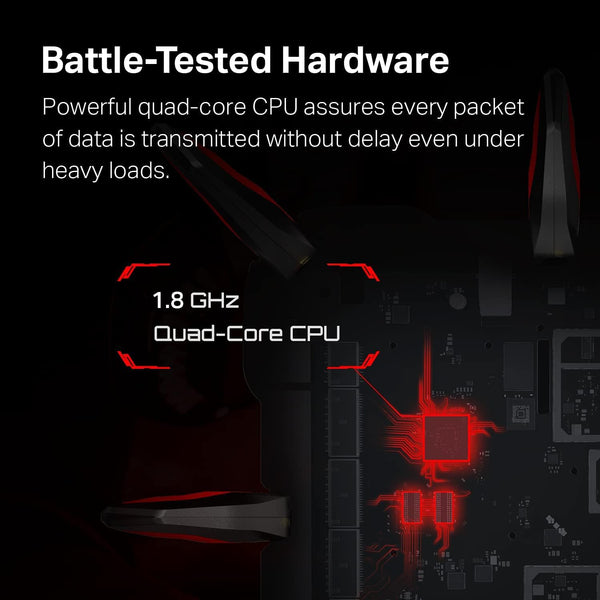

Processor

◆ 1.8 GHz 64-Bit Quad-Core CPU

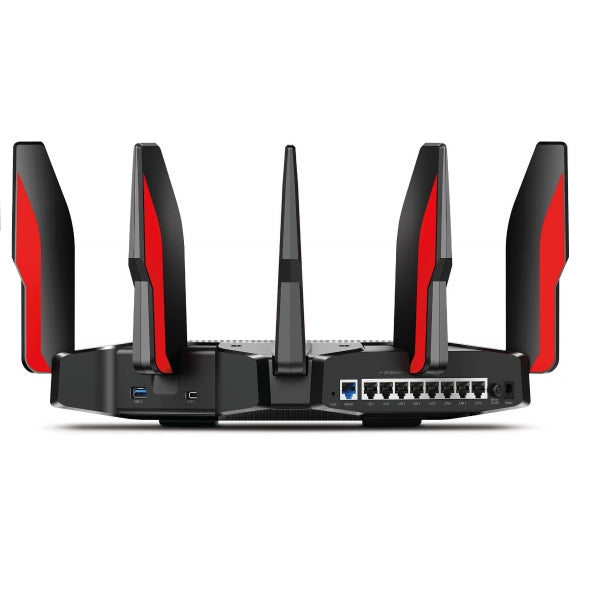

Ethernet Ports

◆ 1× 2.5 Gbps WAN
◆ 8× Gigabit LAN
◆ Link Aggregation (LAG) on 2× LAN ports

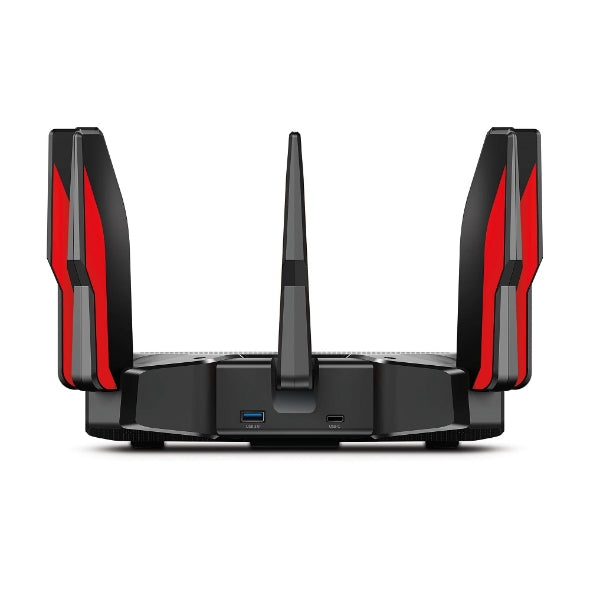

USB

◆ 1× USB-C 3.0
◆ 1× USB-A 3.0

Supported Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server

Buttons

◆ Wi-Fi On/Off
◆ Power On/Off
◆ LED On/Off
◆ WPS
◆ Reset

◆ Power Supply: 12V ⎓ 5A

Software

Protocols

◆ IPv4
◆ IPv6

Game Center

◆ Game Accelerator
◆ Game Statistics Dashboard
◆ Game Protector (HomeCare™)

Parental Controls (HomeCare™)

◆ Custom Profiles
◆ Content Filtering
◆ App & URL Blocking
◆ Time Limits & Bedtime Scheduling
◆ Usage Reports

WAN Types

◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ PPTP
◆ L2TP

QoS

◆ Game Accelerator QoS
◆ QoS by Device
◆ QoS by Application

Cloud Services

◆ Auto / OTA Firmware Upgrade
◆ TP-Link ID
◆ DDNS

NAT Forwarding

◆ Port Forwarding
◆ Port Triggering
◆ DMZ
◆ UPnP

IPTV

◆ IGMP Proxy
◆ IGMP Snooping
◆ Bridge
◆ Tag VLAN

DHCP

◆ Server
◆ Address Reservation
◆ DHCP Client List

Management

◆ Tether App
◆ Web Interface

OneMesh™

◆ OneMesh Supported

Physical

◆ Dimensions: 288 × 288 × 184 mm
(11.3 × 11.3 × 7.2 in)

Environment

◆ Operating Temperature: 0°C to 40°C
◆ Storage Temperature: -40°C to 70°C
◆ Operating Humidity: 10%–90% Non-Condensing
◆ Storage Humidity: 5%–90% Non-Condensing

Certifications

◆ FCC
◆ CE
◆ RoHS

Package Contents

◆ Archer AX11000 Wi-Fi Router
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide
