Archer AX12 / AX1500 Wi-Fi 6 Router

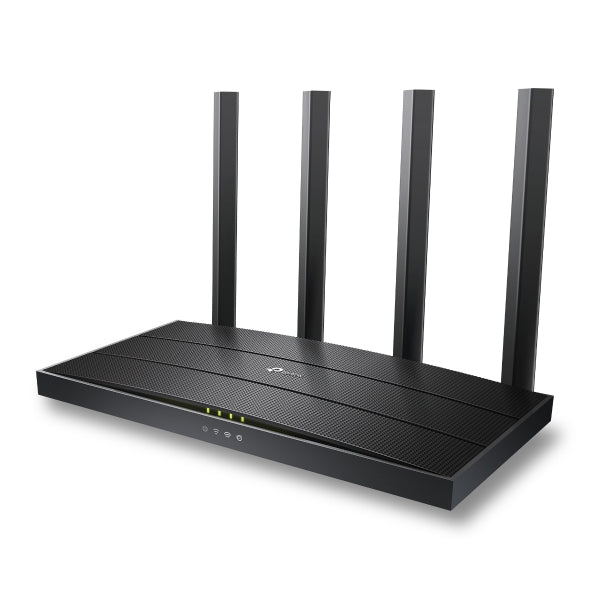

The TP-Link Archer AX12 is a dual-band AX1500 router with Wi-Fi 6 on the 5 GHz band (up to 1201 Mbps) and 300 Mbps on 2.4 GHz. It has four fixed external antennas, one Gigabit WAN port and three Gigabit LAN ports, and it is set up with the Tether app or a web browser.
Wi-Fi 6 on 5 GHz: The 5 GHz band uses 802.11ax (Wi-Fi 6) for up to 1201 Mbps, so Wi-Fi 6 phones and laptops get faster and more efficient connections. OFDMA and Airtime Fairness help the router share airtime between many devices, and it supports 4 streams.
Four antennas with Beamforming: Four fixed high-performance antennas and Beamforming focus the signal toward your devices. TP-Link rates the coverage for a 2–3 bedroom house.
Gigabit wired ports: One Gigabit WAN port connects to your modem or fiber terminal, and three Gigabit LAN ports connect wired devices at full Gigabit speed.
Security and control: The router supports WPA3 as well as WPA2, has an SPI firewall and access control, and offers guest networks on both bands. Built-in OpenVPN and PPTP VPN servers let you reach your home network from outside, and parental controls give URL filtering and time controls. It can also run in Access Point mode.
Who it's for / Works with
Homes of about 2–3 bedrooms that want to move to Wi-Fi 6. It works with any device that has Wi-Fi or an Ethernet port.
Good to know
Wi-Fi 6 (802.11ax) is on the 5 GHz band only; the 2.4 GHz band uses 802.11n at up to 300 Mbps. Wi-Fi 6 speeds need Wi-Fi 6 client devices.
What's in the Box
Archer AX12 router, power adapter, RJ45 Ethernet cable, quick installation guide.
Technical Specifications
| Model | Archer AX12 |
| Wi-Fi Standard | IEEE 802.11ax/ac/n/a (5 GHz), IEEE 802.11n/b/g (2.4 GHz) |
| Wi-Fi Speed | AX1500: 1201 Mbps (5 GHz, 802.11ax) + 300 Mbps (2.4 GHz, 802.11n) |
| Wi-Fi Features | Beamforming, OFDMA, Airtime Fairness, 4 streams |
| Antennas | 4× fixed high-performance antennas |
| Ethernet Ports | 1× Gigabit WAN, 3× Gigabit LAN |
| Buttons | WPS/Reset button |
| Power | 12 V ⎓ 1 A |
| Working Modes | Router, Access Point |
| Security | WPA2-PSK, WPA3-Personal, WPA/WPA2-Enterprise, SPI firewall, access control |
| Guest Network | 2.4 GHz and 5 GHz |
| VPN Server | OpenVPN, PPTP |
| Parental Controls | URL filtering, time controls |
| Protocols | IPv4, IPv6 |
| Management | Tether app, web interface |
| Dimensions (W × D × H) | 215 × 117 × 32 mm |
📄 Datasheet: Download the official TP-Link Archer AX12 datasheet (PDF)
