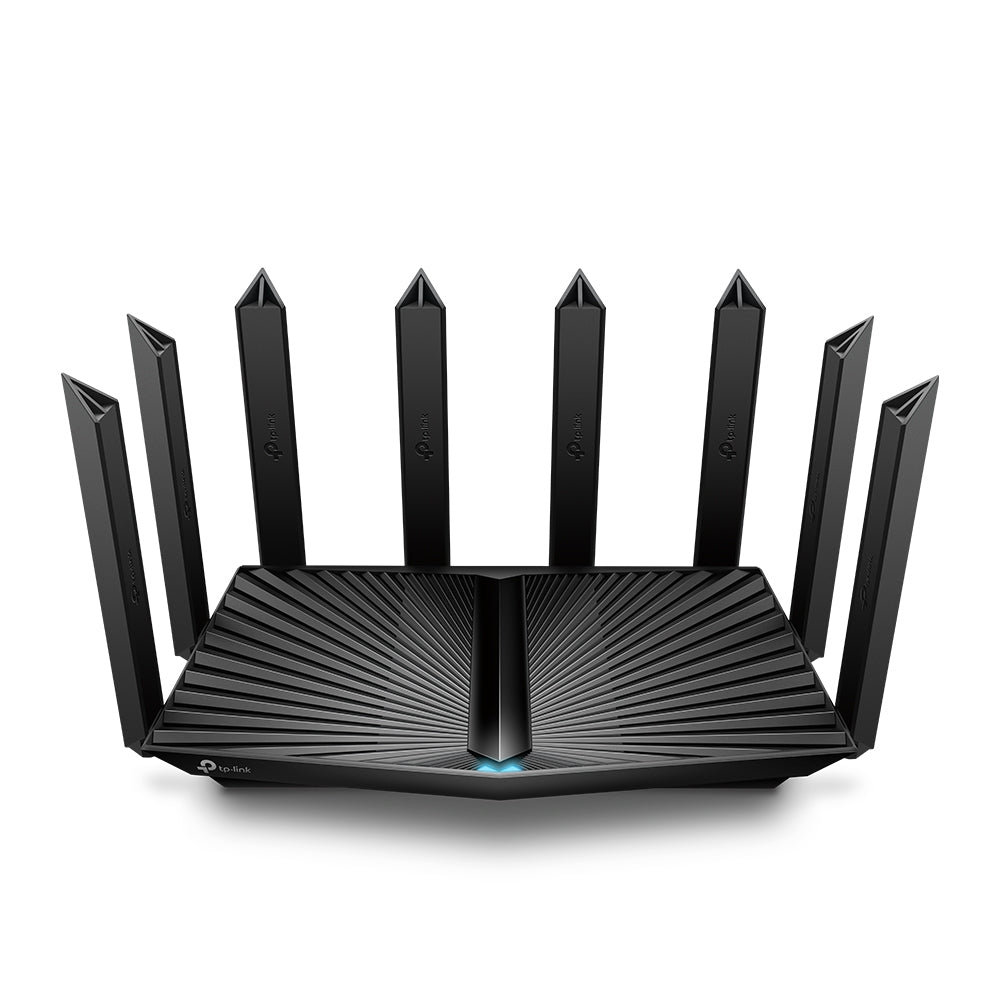

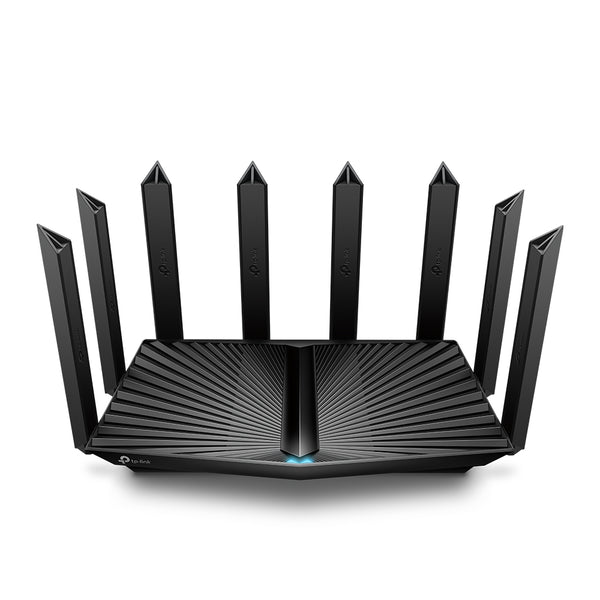

Archer AX95 AX7800 Tri-Band 8-Stream Wi-Fi 6 Router

Description:

Faster Tri-Band AX7800 WiFi 6: Up to 7.8 Gbps (4804 Mbps + 2402 Mbps + 574 Mbps) WiFi for faster browsing, streaming, and downloading, all at the same time.¹

Ultra Connectivity: 1× 2.5 Gbps WAN/LAN port + 1× 1 Gbps WAN/LAN port + 3× Gigabit LAN ports + 2× USB ports ensure max flexibility and boosted throughput.

Maximized Coverage: Eight high-gain antennas equipped with Beamforming ensure vast coverage.

More Devices with Less Lag: OFDMA and MU-MIMO technology deliver data to multiple devices, simultaneously.¹

Powerful CPU: 1.7 GHz quad-core processor ensures fast transmission speeds and smooth operation of numerous devices and applications.

OneMesh™: Creates a Mesh network by connecting to a TP-Link OneMesh Extender for seamless whole-home coverage.

HomeShield: Customize your home network with enhanced security and control.^₅

Refined Security: WPA3 reinforces Wi-Fi encryption and guest network for improved security.

TP-Link Archer AX95 – AX7800 Tri-Band Wi-Fi 6 Router

Wireless

Standards & Protocols

◆ Wi-Fi 6 (802.11ax)
◆ IEEE 802.11ax/ac/n/a – 5 GHz
◆ IEEE 802.11ax/n/b/g – 2.4 GHz

Wi-Fi Speeds (AX7800)

◆ 5 GHz-1: 4804 Mbps (802.11ax, HE160)
◆ 5 GHz-2: 2402 Mbps (802.11ax)
◆ 2.4 GHz: 574 Mbps (802.11ax)

Wi-Fi Range

◆ Ideal for 4-Bedroom Houses
◆ 8× Fixed High-Performance Antennas
◆ Beamforming
◆ High-Power FEM
◆ 4T4R Architecture

Wi-Fi Capacity

◆ Very High
◆ Tri-Band Allocation
◆ 4×4 MU-MIMO
◆ OFDMA
◆ Airtime Fairness
◆ DFS
◆ 8 Streams

Working Modes

◆ Router Mode
◆ Access Point Mode

Security

Network Security

◆ SPI Firewall
◆ Access Control
◆ IP & MAC Binding
◆ Application Layer Gateway

HomeShield Security

◆ Real-Time IoT Protection
◆ Malicious Site Blocker
◆ Intrusion Prevention System
◆ DDoS Attack Prevention
◆ Home Network Scanner

Guest Network

◆ 1× 5 GHz-1 Guest Network
◆ 1× 5 GHz-2 Guest Network
◆ 1× 2.4 GHz Guest Network

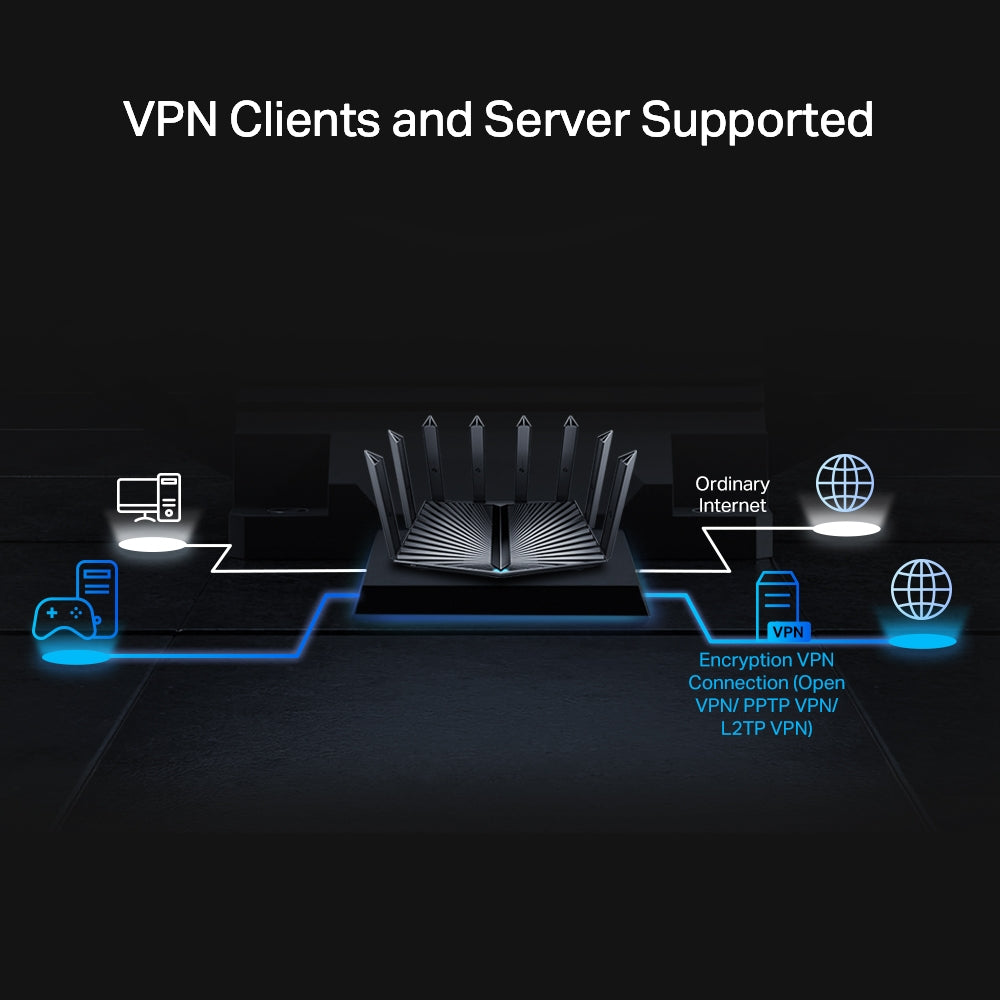

VPN

VPN Server: OpenVPN, PPTP, L2TP
VPN Client: OpenVPN, PPTP, L2TP

Wi-Fi Encryption

◆ WPA / WPA2 / WPA3
◆ WPA/WPA2-Enterprise (802.1x)

Hardware

Processor

◆ 1.7 GHz Quad-Core CPU

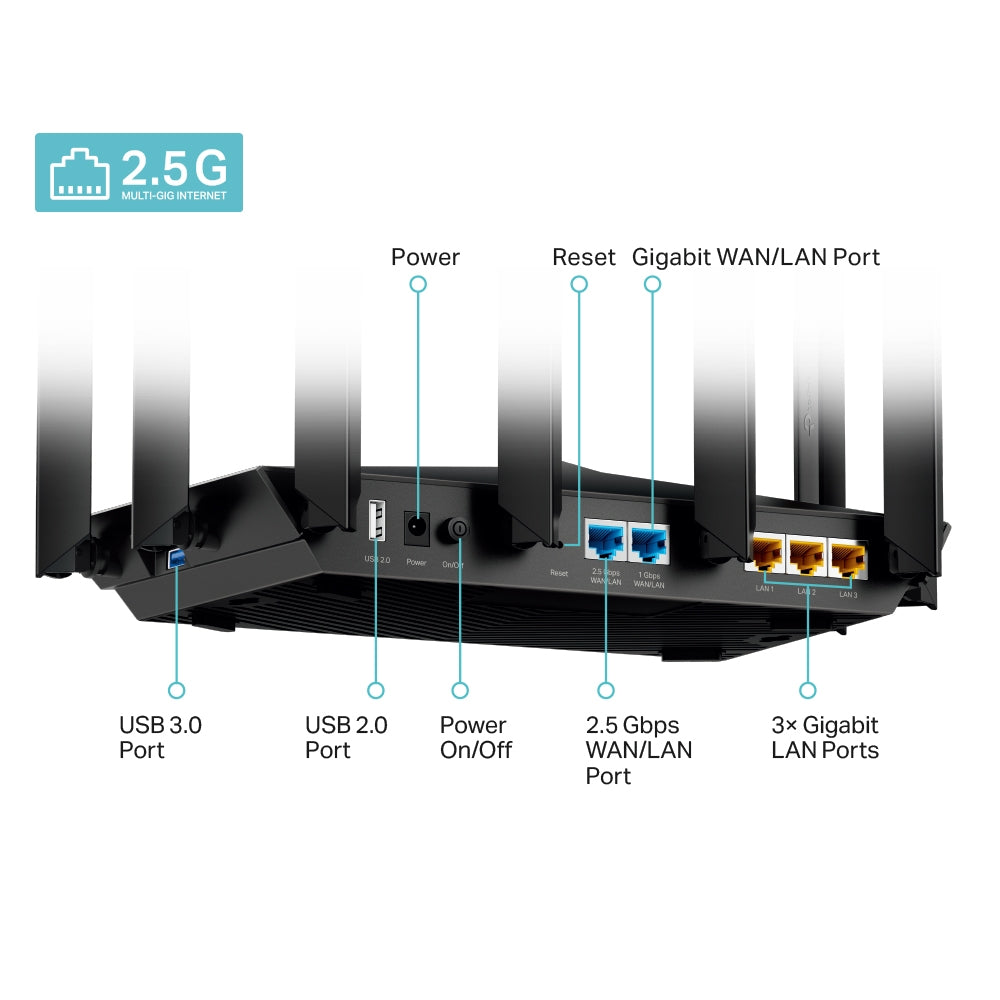

Ethernet Ports

◆ 1× 2.5 Gbps WAN/LAN
◆ 1× 1 Gbps WAN/LAN
◆ 3× 1 Gbps LAN

USB

◆ 1× USB 3.0
◆ 1× USB 2.0

Supported Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions: FTP Server, Media Server, Samba Server

Buttons

◆ LED On/Off
◆ WPS
◆ Wi-Fi On/Off
◆ Power On/Off
◆ Reset

◆ Power Supply: 12V ⎓ 3.3A

Software

Protocols

◆ IPv4
◆ IPv6

Service Kit

◆ HomeShield

OneMesh™

◆ OneMesh Supported

Parental Controls (HomeShield)

◆ Custom Profiles
◆ Professional Content Filter Library
◆ Family Time / Bedtime / Off Time
◆ Time Rewards
◆ Online Time Ranking
◆ Pause Internet
◆ Weekly & Monthly Reports

WAN Types

◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ PPTP
◆ L2TP

QoS

◆ QoS by Device

Cloud Services

◆ Auto Firmware Upgrade
◆ TP-Link ID
◆ DDNS

NAT Forwarding

◆ Port Forwarding
◆ Port Triggering
◆ DMZ
◆ UPnP

IPTV

◆ IGMP Proxy
◆ IGMP Snooping
◆ Bridge
◆ Tag VLAN

DHCP

◆ Server
◆ Address Reservation
◆ DHCP Client List

DDNS

◆ TP-Link
◆ NO-IP
◆ DynDNS

Management

◆ Tether App
◆ Web Interface

Physical

◆ Dimensions: 277.3 × 183.9 × 57.3 mm
(10.9 × 7.2 × 2.3 in)

Environment

◆ Operating Temperature: 0°C to 40°C
◆ Storage Temperature: -40°C to 70°C
◆ Operating Humidity: 10%–90% Non-Condensing
◆ Storage Humidity: 5%–90% Non-Condensing

Certifications

◆ FCC
◆ CE
◆ RoHS

Package Contents

◆ Archer AX95 Router
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide
