Description:

Game Band – Tri-Band structure provides a 4.8 Gbps Game Band exclusive for your gaming rigs and brings pure immersion.^{† ‡}

Game Accelerator – Detect and optimize gaming streams, to ensure your gaming stays immersive.

Game Statistics – Real-time latency, game duration and network resource allocation in a glance with fine-tuned UI.

Game Protector – Keep your accounts and documents safe with Homecare™ security system.

Expansive Coverage – 8 antennas, Beamforming, high-power FEM, 4T4R combine to deliver WiFi coverage up to a 4-bedroom house.

2.5 Gbps Wired Connection – Unleash the potential of your next-level bandwidth network with a 2.5 Gbps WAN/LAN port.

Powerful Processing – 1.5 GHz Quad-Core CPU ensure your network performance always at peak run.

Easy Setup – Set it up in minutes with the powerful Tether app.

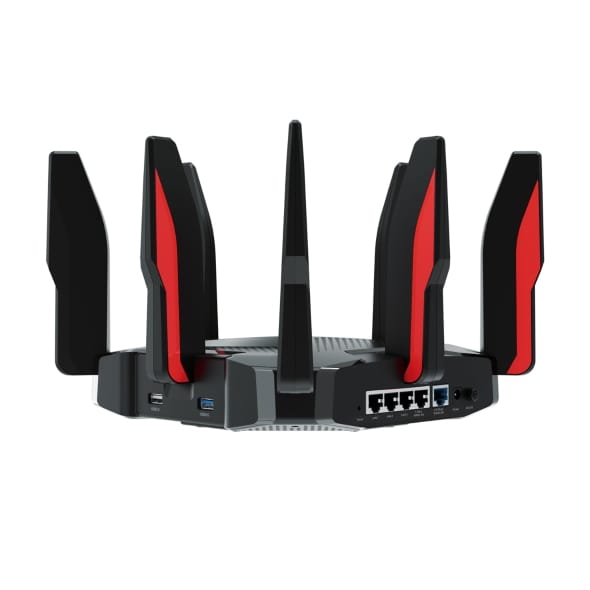

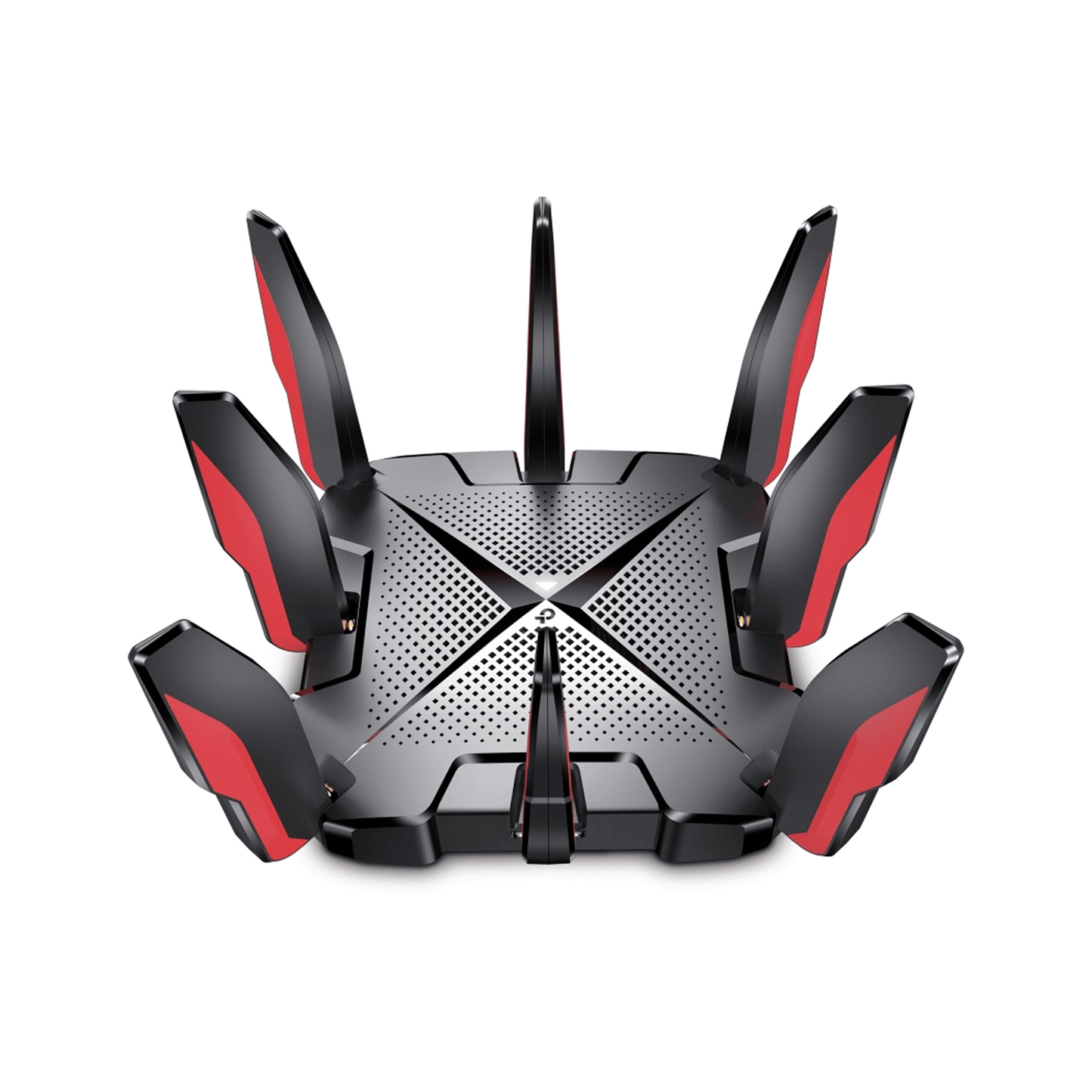

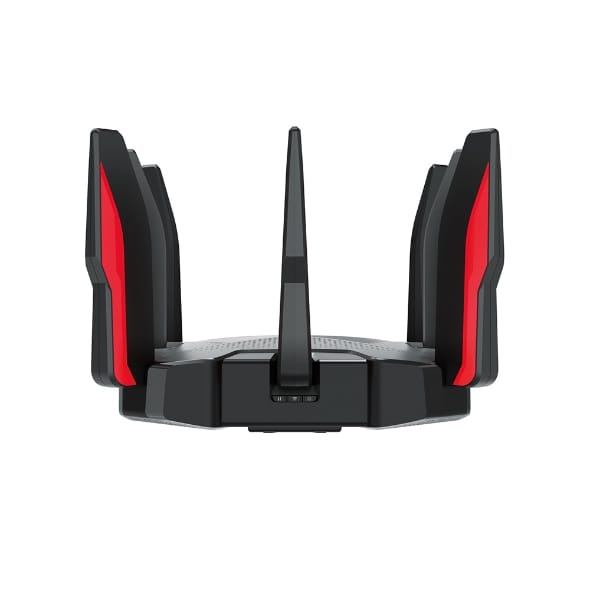

TP-Link Archer GX90 – AX6600 Tri-Band Wi-Fi 6 Gaming Router

Wireless

Standards & Protocols

◆ Wi-Fi 6 (802.11ax)
◆ IEEE 802.11ax/ac/n/a – 5 GHz
◆ IEEE 802.11ax/n/b/g – 2.4 GHz

Wi-Fi Speeds (AX6600)

◆ 5 GHz (Gaming Band): 4804 Mbps (802.11ax, HE160)
◆ 5 GHz: 1201 Mbps (802.11ax)
◆ 2.4 GHz: 574 Mbps (802.11ax)

Wi-Fi Range

◆ Ideal for 4-Bedroom Houses
◆ 8× Detachable High-Performance Antennas
◆ Beamforming
◆ High-Power FEM
◆ 4T4R Architecture

Wi-Fi Capacity

◆ Very High
◆ Tri-Band Allocation
◆ 4×4 MU-MIMO
◆ OFDMA
◆ Airtime Fairness
◆ DFS
◆ 8 Streams

Working Modes

◆ Router Mode
◆ Access Point Mode

Security

Network Security

◆ SPI Firewall
◆ Access Control
◆ IP & MAC Binding
◆ Application Layer Gateway

HomeCare™ Security

◆ Antivirus
◆ Malicious Site Checker
◆ Port Intrusion Prevention
◆ Infected Device Isolation
◆ Notifications & Logs

Guest Network

◆ 1× 5 GHz Guest Network
◆ 1× 2.4 GHz Guest Network

VPN

VPN Server: OpenVPN, PPTP
VPN Client: OpenVPN, PPTP, L2TP

Wi-Fi Encryption

◆ WEP
◆ WPA / WPA2
◆ WPA/WPA2-Enterprise (802.1x)

Hardware

Processor

◆ 1.5 GHz Quad-Core CPU

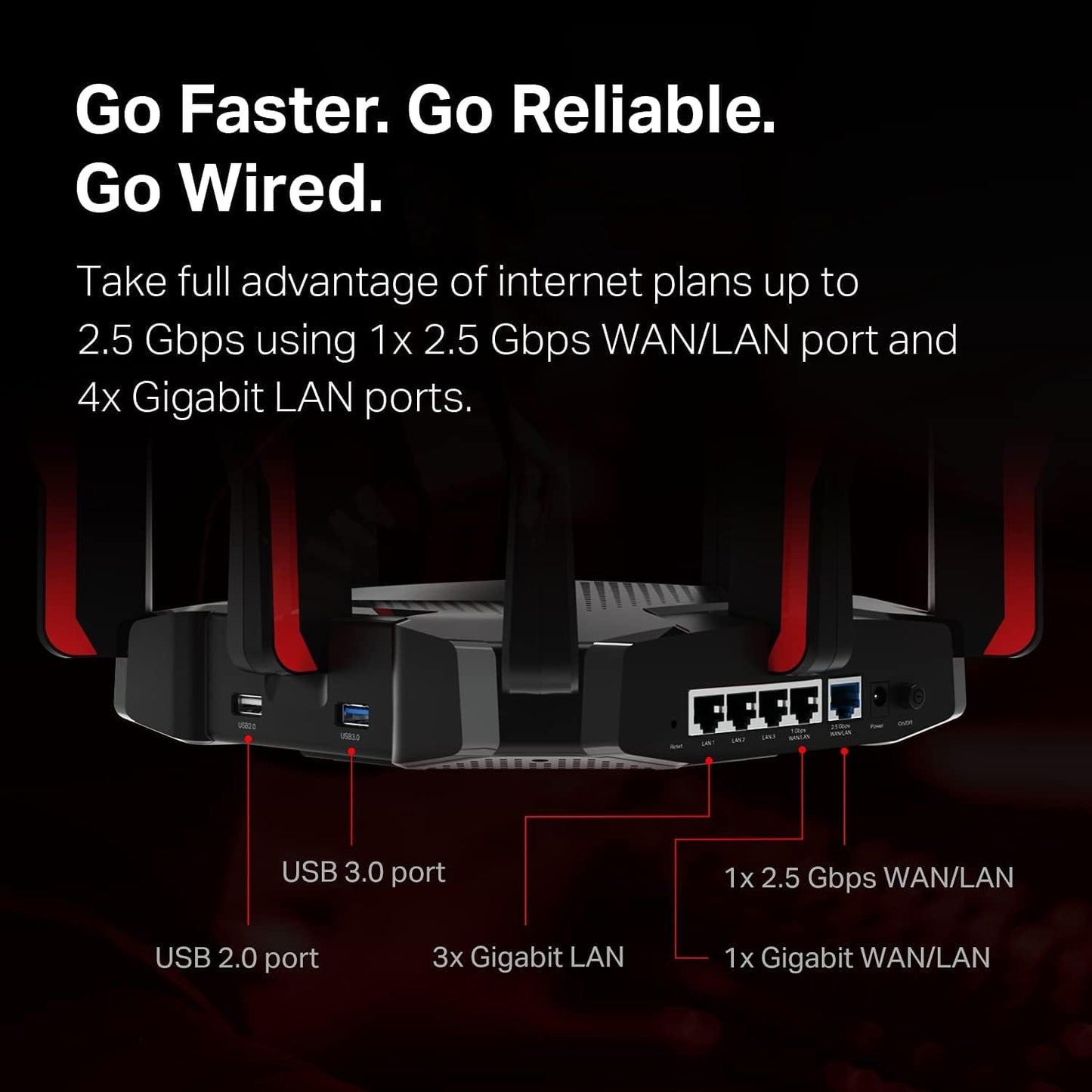

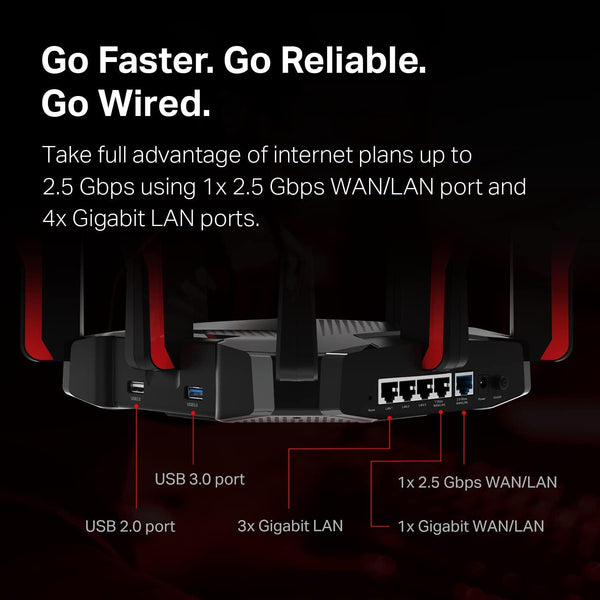

Ethernet Ports

◆ 1× 2.5 Gbps WAN/LAN
◆ 1× Gigabit WAN/LAN
◆ 3× Gigabit LAN

USB

◆ 1× USB 3.0
◆ 1× USB 2.0

Supported Formats: NTFS, exFAT, HFS+, FAT32
Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server

Buttons

◆ Wi-Fi On/Off
◆ Power On/Off
◆ LED On/Off
◆ WPS
◆ Reset

◆ Power Supply: 12V ⎓ 5A

Software

Protocols

◆ IPv4
◆ IPv6

Game Center

◆ Game Accelerator
◆ GeForce NOW™ QoS
◆ Game Statistics Dashboard
◆ Game Protector (HomeCare™)

Parental Controls (HomeCare™)

◆ Custom Profiles
◆ Content Filtering
◆ App & URL Blocking
◆ Time Limits & Scheduling
◆ Usage Reports

WAN Types

◆ Dynamic IP
◆ Static IP
◆ PPPoE
◆ PPTP
◆ L2TP

QoS

◆ Game Accelerator QoS
◆ GeForce NOW™ QoS
◆ QoS by Device
◆ QoS by Application

Cloud Services

◆ Auto / OTA Firmware Upgrade
◆ TP-Link ID
◆ DDNS

NAT Forwarding

◆ Port Forwarding
◆ Port Triggering
◆ DMZ
◆ UPnP

IPTV

◆ IGMP Proxy
◆ IGMP Snooping
◆ Bridge
◆ Tag VLAN

DHCP

◆ Server
◆ Address Reservation
◆ DHCP Client List

OneMesh™

◆ OneMesh Supported

Management

◆ Tether App
◆ Web Interface

Physical

◆ Dimensions: 212 × 212 × 51.8 mm
(8.3 × 8.3 × 2.0 in)

Environment

◆ Operating Temperature: 0°C to 40°C
◆ Storage Temperature: -40°C to 70°C
◆ Operating Humidity: 10%–90% Non-Condensing
◆ Storage Humidity: 5%–90% Non-Condensing

Certifications

◆ FCC
◆ CE
◆ RoHS

Package Contents

◆ Archer GX90 Wi-Fi Router
◆ Power Adapter
◆ RJ45 Ethernet Cable
◆ Quick Installation Guide
