Tenda AX3000 Dual Band Gigabit Wi-Fi 6 Router | Tenda TX9
The Tenda TX9 is an AX3000 dual-band Wi-Fi 6 router with up to 2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. It has four Gigabit Ethernet ports (1 WAN + 3 LAN), a dual-core 1.6 GHz processor and four external 6 dBi antennas, and it can be managed from the Tenda app.

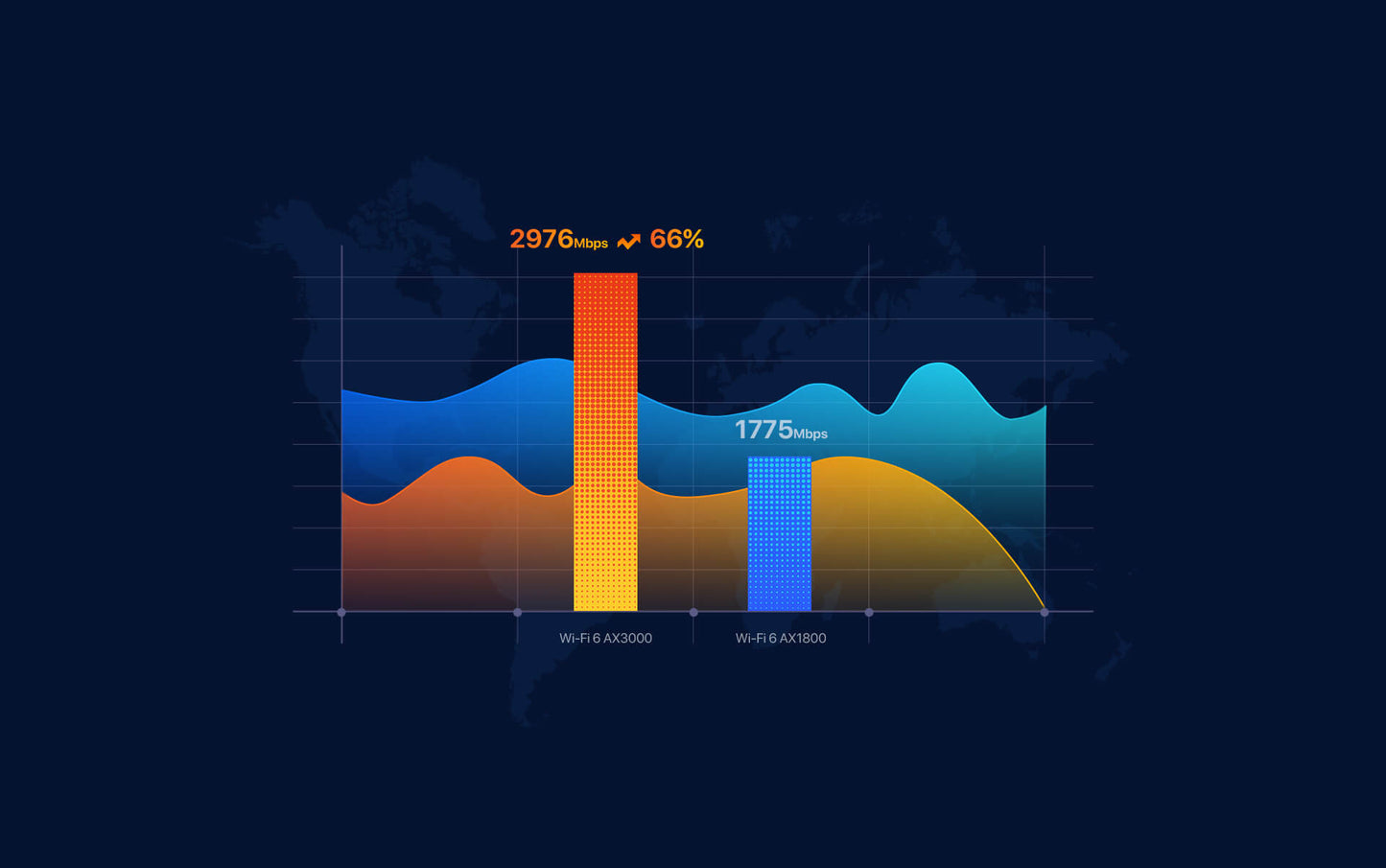

AX3000 Wi-Fi 6: Both bands of the TX9 support Wi-Fi 6, with a combined rate of up to 2976 Mbps (2402 Mbps on 5 GHz plus 574 Mbps on 2.4 GHz). Phones and laptops with Wi-Fi 6 get the most from it, while older Wi-Fi devices still connect.
160 MHz on 5 GHz: The 5 GHz band supports 160 MHz channel width, which Tenda says doubles the speed compared with 80 MHz, so several people can stream or game at the same time.


Dual-core processor and 4 antennas: A dual-core 1.6 GHz processor with NPU handles many connected devices, and four external 6 dBi antennas spread the signal. Tenda rates the coverage for small and medium-sized homes.

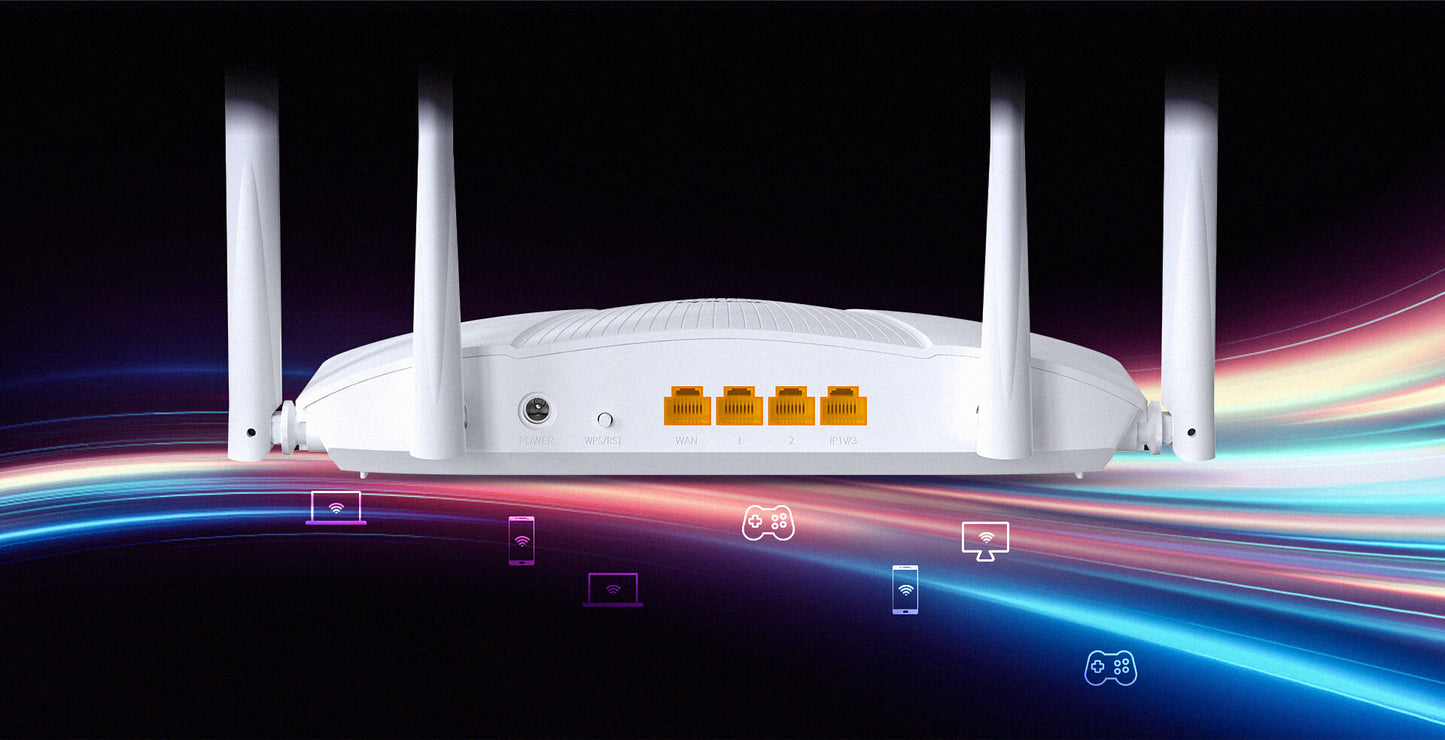

Four Gigabit ports: One Gigabit WAN port connects to your internet line and three Gigabit LAN ports connect a PC, TV, game console or NVR by cable, so wired devices get the full speed of your internet plan.

Security and home features: WPA3 encryption, IPv6, a guest network and parental control (with black list and white list) are built in. The Tenda app lets you manage the router at home or remotely.


Good to know
Wi-Fi rates are the maximum link rates given by Tenda; real speed depends on your devices, distance and internet plan. The 2976 Mbps figure is the 5 GHz and 2.4 GHz rates added together.
What's in the Box
Wireless router × 1, power adapter × 1, Ethernet cable × 1, installation guide × 1.
Technical Specifications
| Model | TX9 |
| Wi-Fi Standard | Wi-Fi 6, IEEE 802.11b/g/n/a/ac/ax |
| Wi-Fi Class | AX3000 |
| Wireless Rate | 5 GHz: 2402 Mbps, 2.4 GHz: 574 Mbps |
| Channel Width | Up to 160 MHz (5 GHz) |
| Processor | Dual-core 1.6 GHz with NPU |
| Antennas | 4 × 6 dBi external |
| Ports | 1 × 10/100/1000 Mbps WAN, 3 × 10/100/1000 Mbps LAN |
| Number of Ports | 4 (1 × Gigabit WAN, 3 × Gigabit LAN) |
| Wireless Security | WPA3-SAE/WPA2-PSK |
| Features | IPv6, guest network, parental control (black list / white list) |
| Management | Tenda app (local and remote) |
| Power Adapter | Output DC 12 V 1.5 A |
| Dimensions (L × W × H) | 272.44 × 162.85 × 43.71 mm |
📄 Datasheet: Download the official Tenda TX9 datasheet (PDF)
