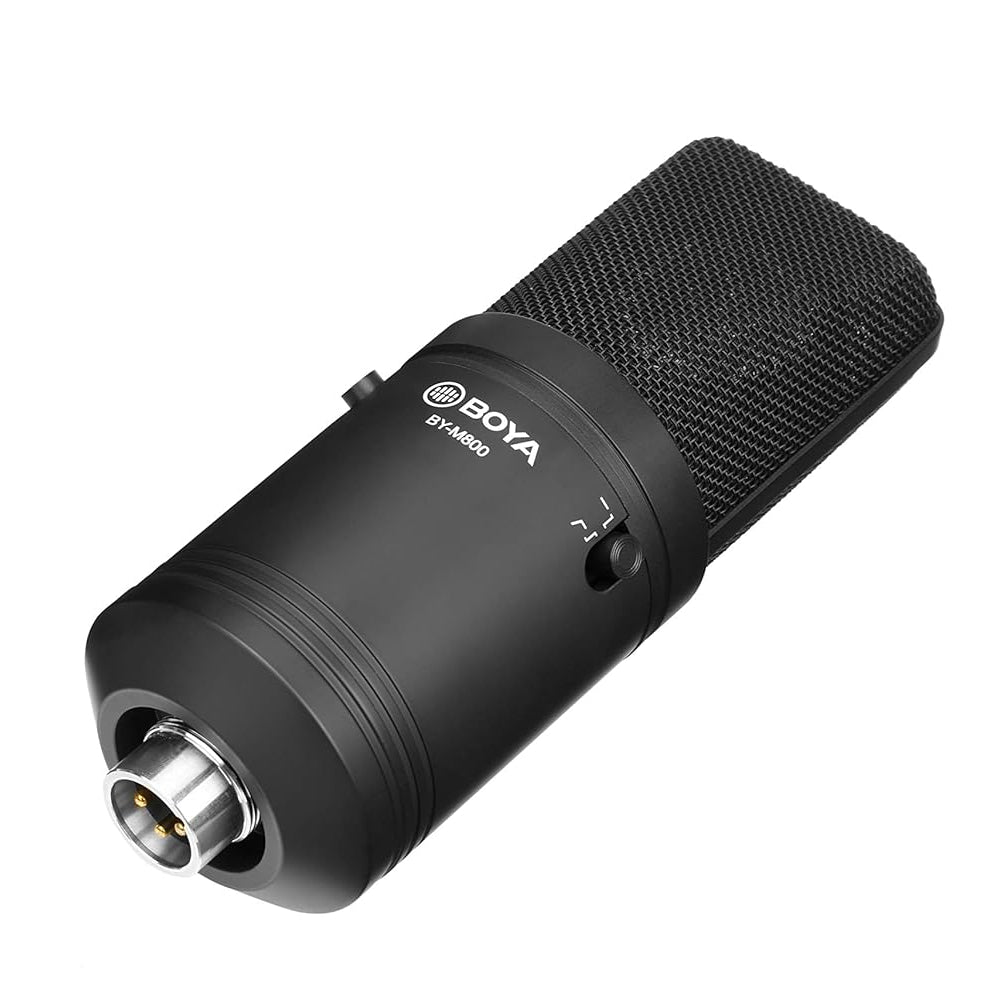

BOYA BY-M800 Cardioid Condenser Microphone
BOYA BY-M800 Cardioid Condenser Microphone
Couldn't load pickup availability
BOYA BY-M800 Cardioid Condenser Microphone
Description:
The BOYA BY-M800 is a large-diaphragm cardioid condenser microphone with a smooth, flat, wide-range frequency response, made for vocal and general instrument recording in home, project and professional studios. The cardioid pattern focuses on sound in front of the capsule and rejects off-axis sound from the sides and back.
It has a -10dB pad switch for extra headroom with loud sources and a low-cut (high-pass) filter switch at 150 Hz to remove low-frequency hum and rumble. The all-metal housing connects through a standard XLR connector and needs 24V or 48V phantom power from an audio interface, mixer or preamp.
Key Features:
- Large gold-sputtered 34 mm diaphragm
- Cardioid pickup pattern

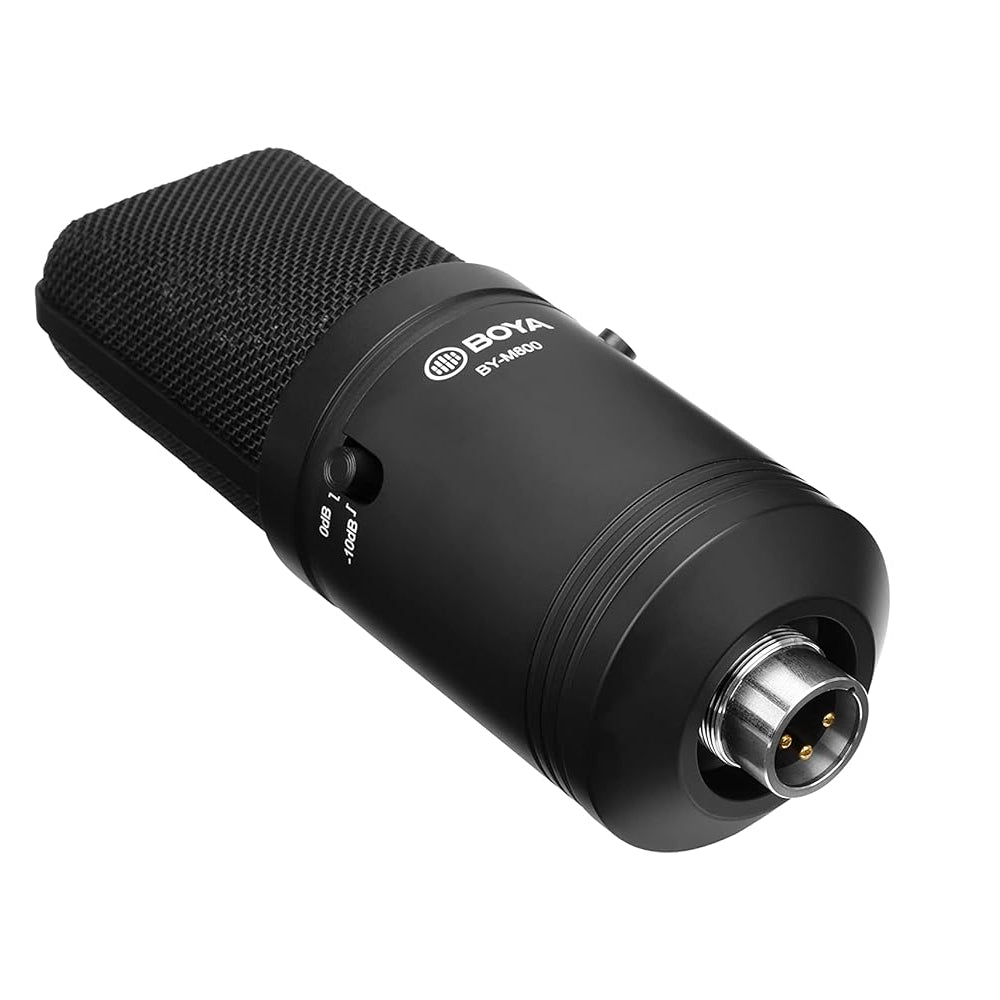

- Selectable -10dB pad
- Low-cut filter switch (150 Hz)
- 24V or 48V phantom power via standard XLR connector
- Shock mount and pop filter included
- 3/8" and 5/8" stand thread
Specifications:
| Acoustic Principle | Condenser |
| Polar Pattern | Cardioid |
| Diaphragm | 34 mm |
| Frequency Response | 20 Hz - 20 kHz |
| Sensitivity | -33 ± 3 dB (0 dB = 1 V/Pa @ 1 kHz) |
| Signal-to-Noise Ratio | 80 dB or more |
| Output Impedance | 200 Ω |
| Power Requirements | 24V or 48V phantom power |
| Connector | XLR |
| Cable Length | 3 m |
| Dimensions | 207 x 115 x 162 mm |
| Weight | 642 g |
In the Box:

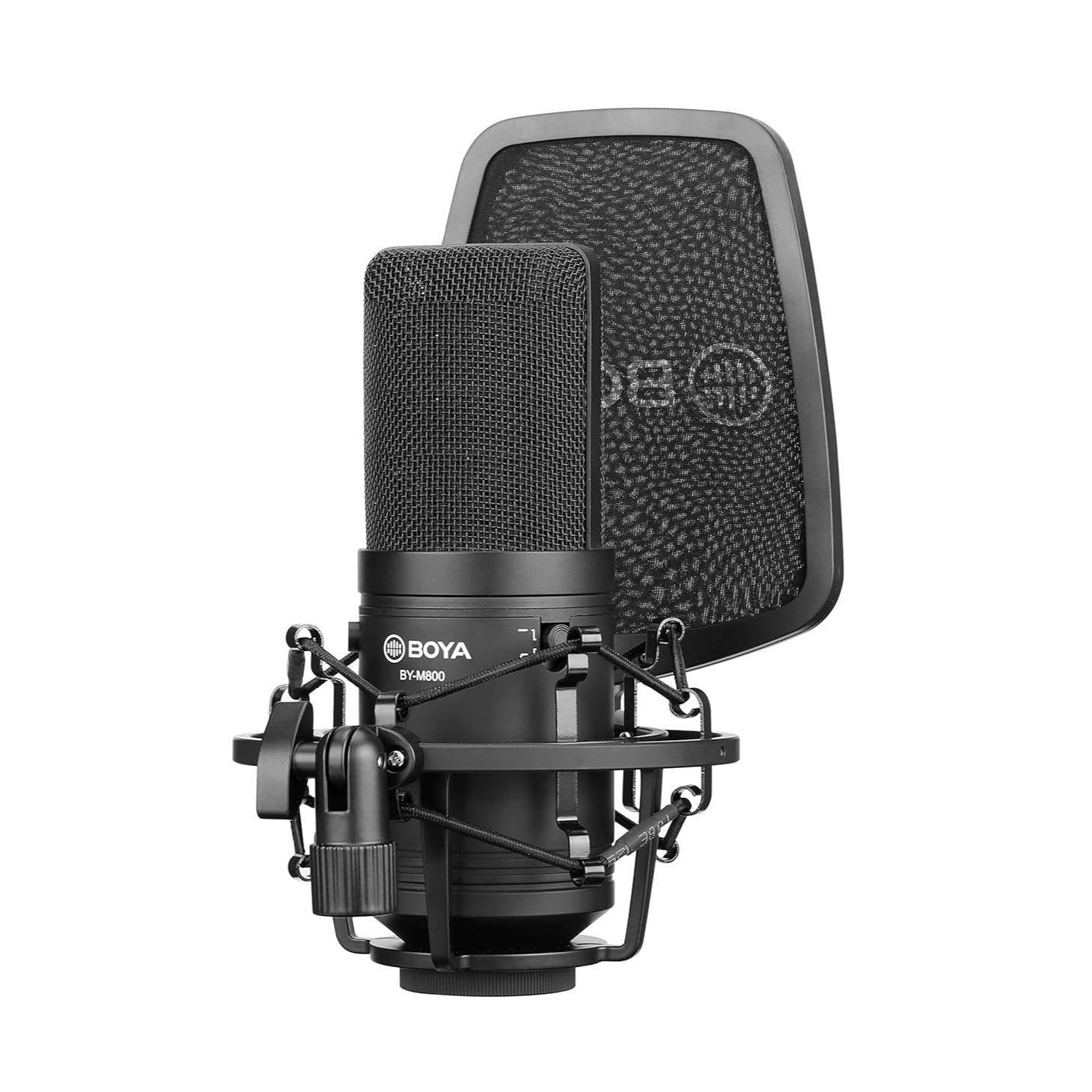

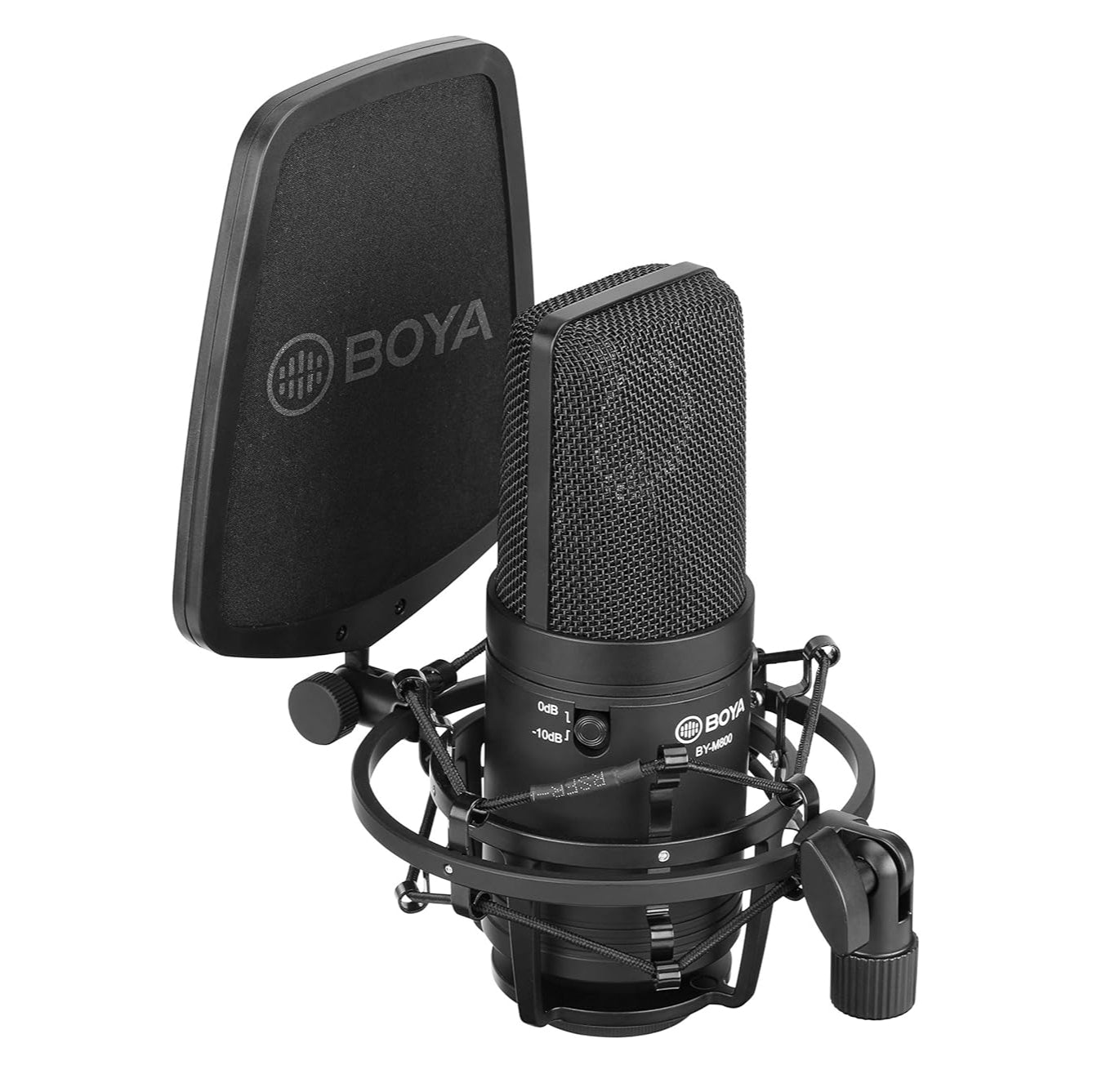

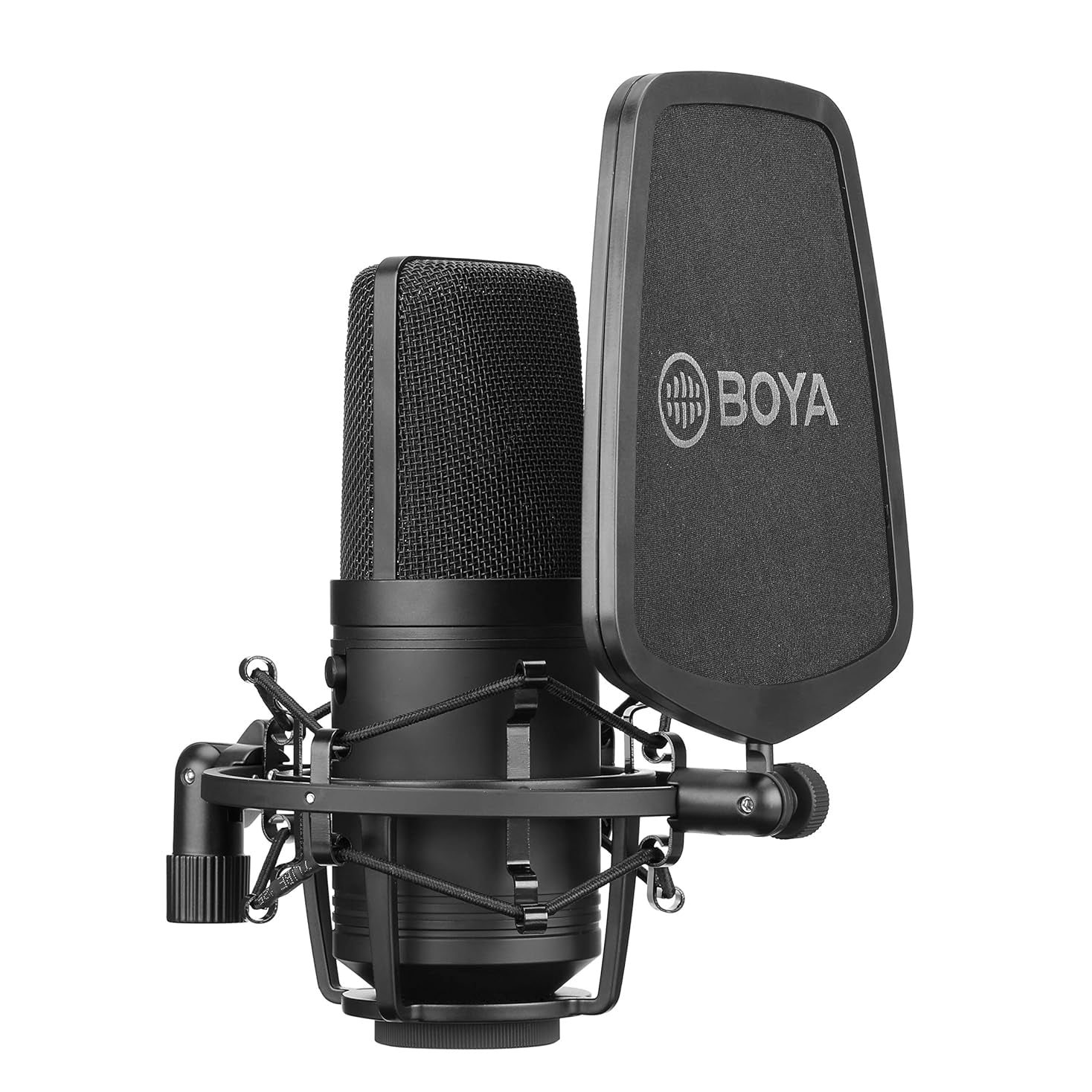

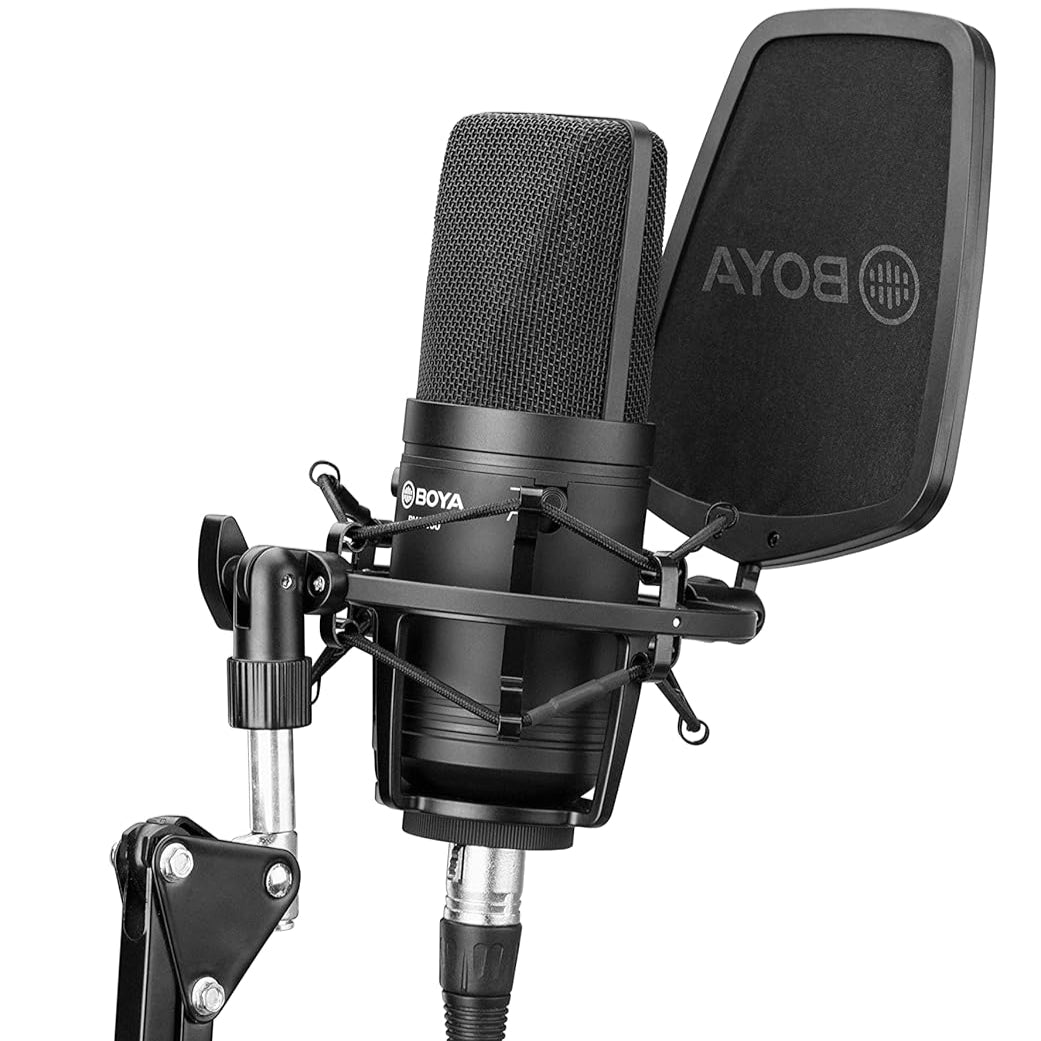

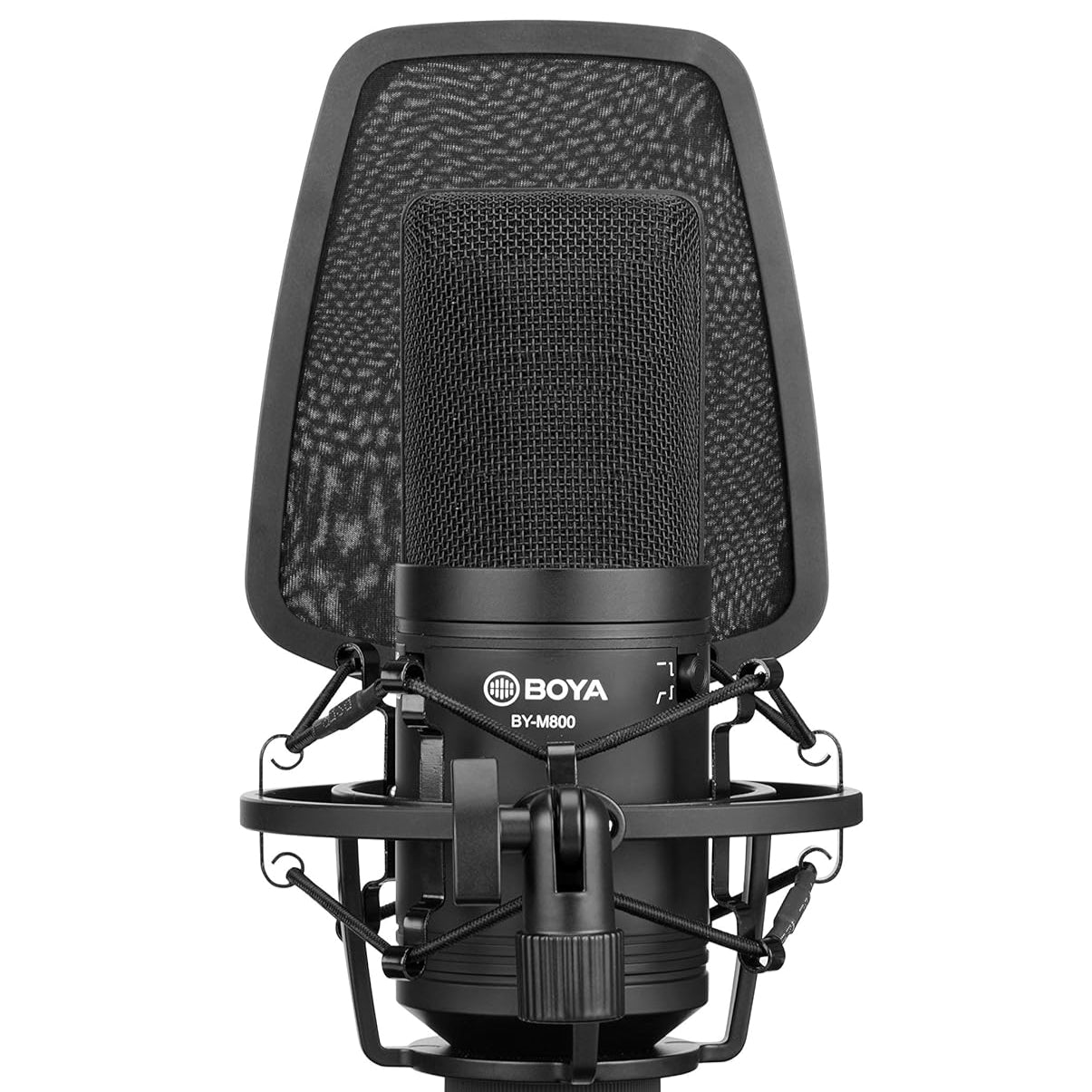

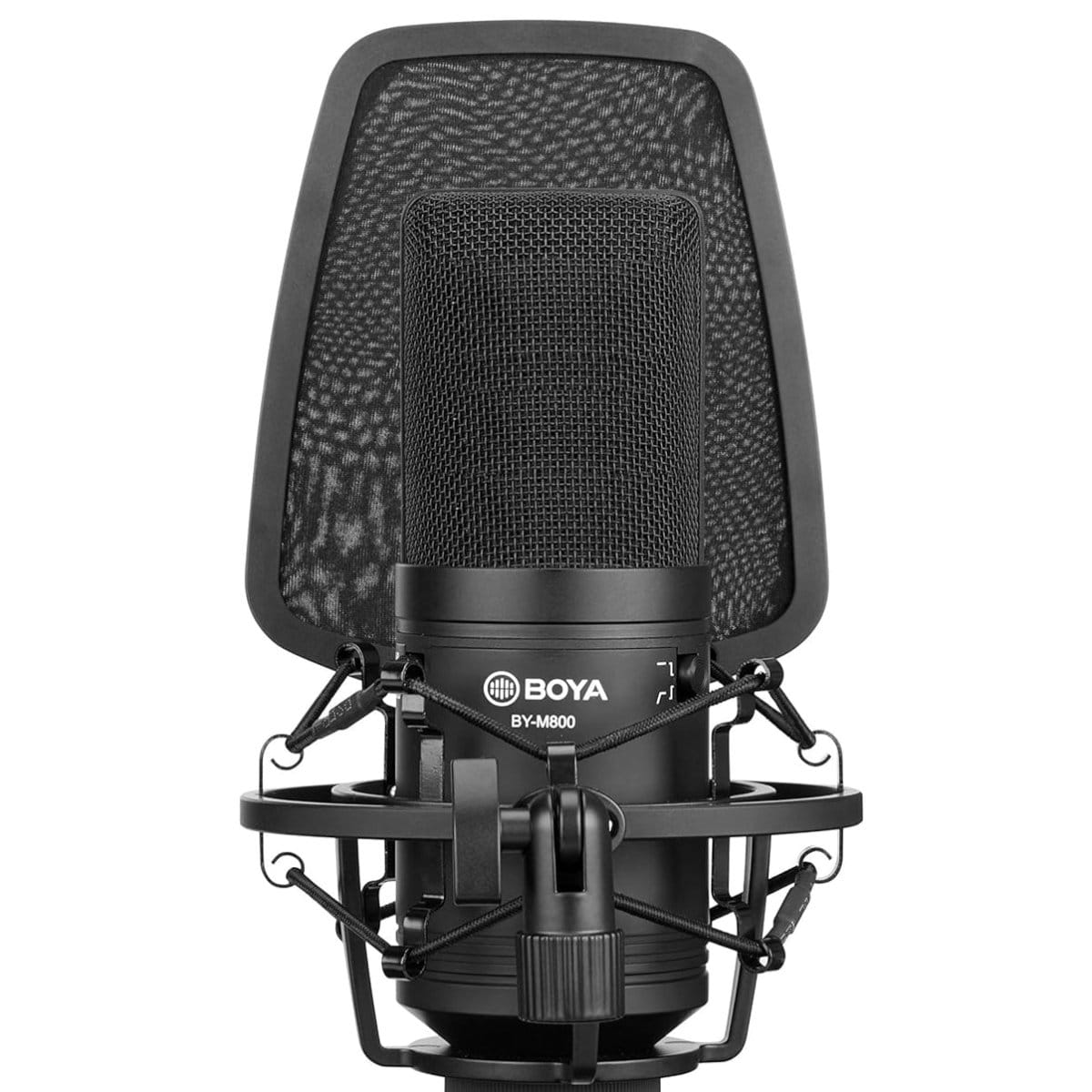

BY-M800 condenser microphone, studio pop shield, shock mount, 3 m balanced XLR cable.
Good to know:
The BY-M800 is an XLR condenser microphone and needs phantom power (24V or 48V). It does not connect directly to a USB port or a smartphone; use an audio interface or mixer with phantom power.
