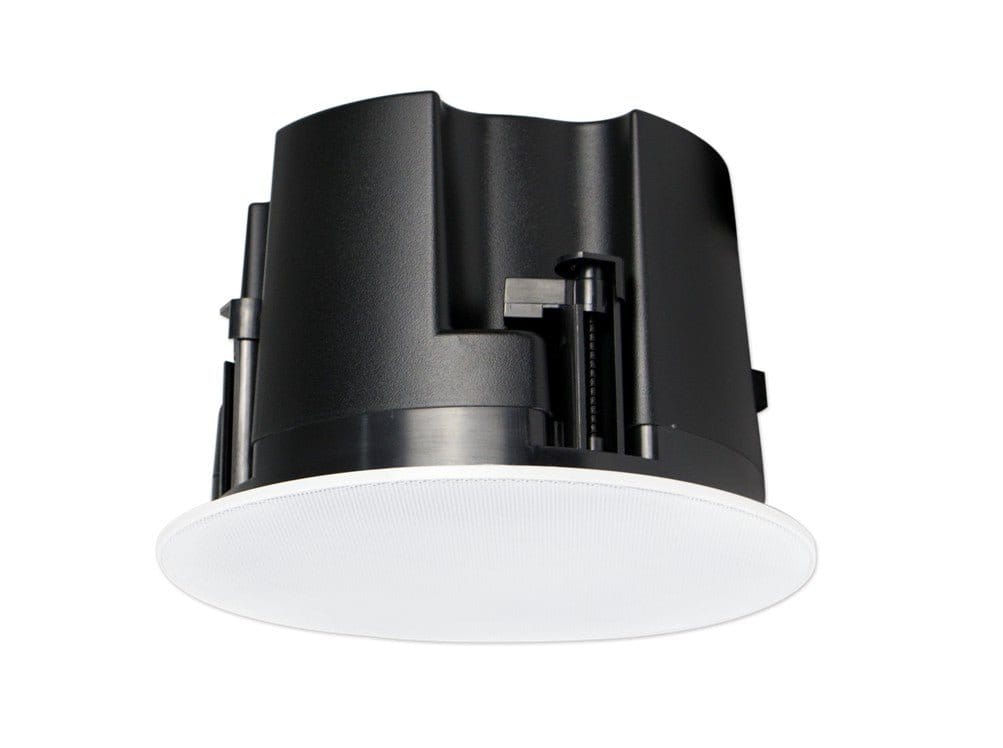

CMX CSK-613HTM Frameless Ceiling Speaker | 13W 100V Ceiling Speaker
The CMX CSK-613HTM is a professional frameless ceiling speaker designed for commercial background music and public address systems. Featuring a built-in 100V transformer, elegant frameless grille design, and high-efficiency full-range driver, the CSK-613HTM is ideal for hotels, offices, restaurants, retail stores, schools, and distributed audio installations.
Key Features
◆ 6-inch frameless ceiling speaker
◆ Built-in 100V transformer for PA systems
◆ 13W rated power output
◆ Frameless architectural grille design
◆ Full-range speaker driver for clear voice and music reproduction
◆ Wide sound dispersion coverage
◆ Quick spring-clip ceiling installation
◆ Durable ABS enclosure with metal grille
◆ Elegant low-profile white finish
◆ Suitable for background music and paging systems
◆ Compatible with 70V / 100V distributed audio systems
Technical Specifications
| Specification |
Details |
| Model |
CSK-613HTM |
| Speaker Type |
Frameless Ceiling Speaker |
| Rated Power |
13W |
| Line Voltage |
100V |
| Speaker Driver |
6" Full-Range Driver |
| Frequency Response |
90Hz – 18kHz |
| SPL (1W/1m) |
93 ±3dB |
| Mounting Type |
Spring Clip Ceiling Mount |
| Material |
ABS Enclosure & Metal Grille |
| Color |
White |
| Installation Type |
Ceiling Mount |
Applications
◆ Background music systems
◆ Commercial PA systems
◆ Offices and meeting rooms
◆ Restaurants and cafés
◆ Hotels and hospitality venues
◆ Retail stores and supermarkets
◆ Schools and educational facilities
◆ Mosques and prayer halls
Package Contents
◆ CMX CSK-613HTM Ceiling Speaker
◆ Mounting Accessories
◆ User Manual
Additional Information
Brand: CMX Audio
Model: CSK-613HTM
Type: Frameless Ceiling Speaker
Official Website: CMX Audio
