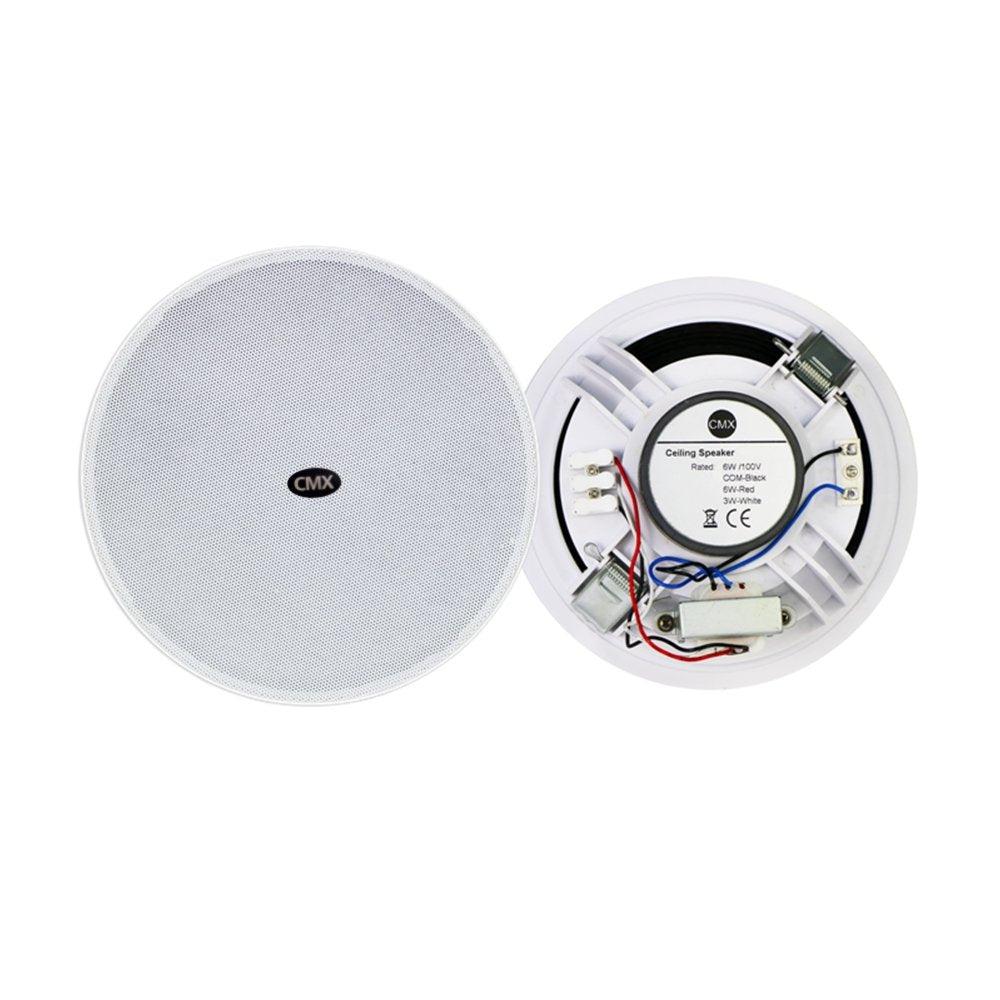

CMX CSK-66HF Frameless Ceiling Speaker | 6W / 3W 100V Ceiling Speaker
CMX CSK-66HF Frameless Ceiling Speaker | 6W / 3W 100V Ceiling Speaker
Couldn't load pickup availability
CMX CSK-66HF Frameless Ceiling Speaker | 6W / 3W 100V Ceiling Speaker
The CMX CSK-66HF is a frameless 6-inch ceiling speaker designed for commercial background music and public address systems. Featuring a built-in 100V transformer, quick spring-clip installation, and a clean frameless design, the CSK-66HF is ideal for offices, retail stores, restaurants, hotels, schools, and hospitality audio installations.
Key Features
◆ 6-inch frameless ceiling speaker
◆ Built-in 100V transformer for PA systems
◆ 6W / 3W selectable power taps
◆ Frameless modern ceiling design
◆ Full-range speaker driver for clear voice and music
◆ Quick spring-clip mounting system
◆ ABS enclosure with metal grille
◆ White finish suitable for commercial interiors
◆ Ideal for background music and paging systems
◆ Compatible with 70V / 100V distributed audio systems
Technical Specifications
| Specification | Details |
|---|---|
| Model | CSK-66HF |
| Speaker Type | Frameless Ceiling Speaker |
| Rated Power | 6W / 3W |
| Line Voltage | 100V |
| Speaker Driver | 6" Full-Range Driver |
| Frequency Response | 100Hz – 15kHz |
| SPL (1W/1m) | 93 ±3dB |
| Mounting Type | Spring Clip Quick Mount |
| Material | ABS Enclosure & Metal Grille |
| Color | White |
| Installation Type | Ceiling Mount |
Applications
◆ Background music systems
◆ Commercial PA systems
◆ Offices and meeting rooms
◆ Restaurants and cafés
◆ Hotels and hospitality venues
◆ Retail stores and supermarkets
◆ Schools and educational facilities
◆ Mosques and prayer halls
Package Contents
◆ CMX CSK-66HF Ceiling Speaker
◆ Mounting Accessories
◆ User Manual
Additional Information
Brand: CMX Audio
Model: CSK-66HF
Type: Frameless Ceiling Speaker
Official Website: CMX Audio
Official Product Page: CSK-66HF Ceiling Speaker
