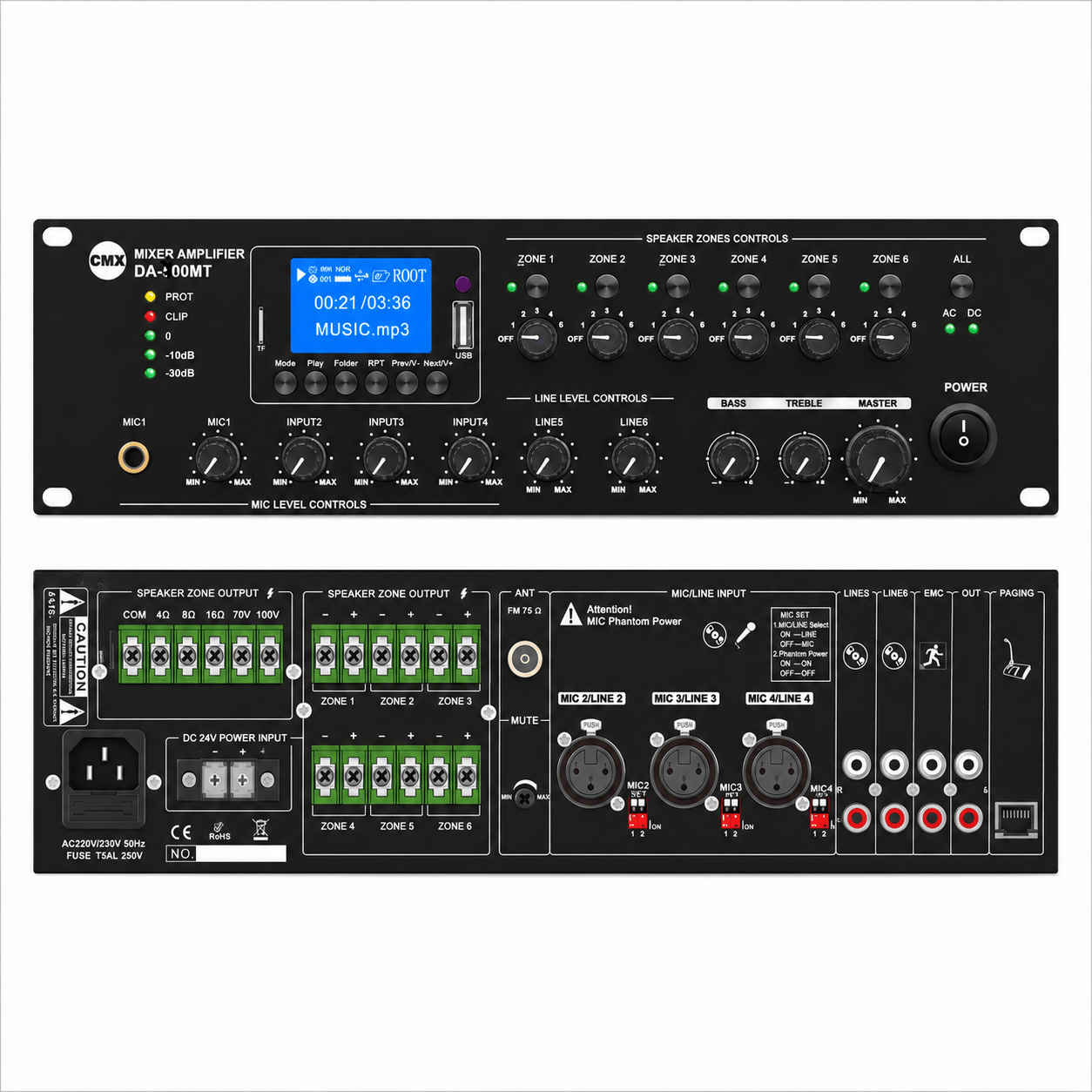

CMX DA-240MT 6-Zone Mixer Amplifier | 240W Bluetooth PA Amplifier
CMX DA-240MT 6-Zone Mixer Amplifier | 240W Bluetooth PA Amplifier
Couldn't load pickup availability

CMX DA-240MT 6-Zone Mixer Amplifier | 240W Bluetooth PA Amplifier
The CMX DA-240MT is a professional 6-zone digital mixer amplifier designed for commercial PA systems, paging, and background music distribution. With 240W output power, independent zone selection, Bluetooth streaming, USB/SD playback, FM radio, microphone priority, and support for both high-impedance and low-impedance speaker systems, the DA-240MT is ideal for schools, mosques, offices, hotels, supermarkets, factories, and large commercial audio installations.
Key Features
◆ 240W RMS power output
◆ 6 independent speaker zones with zone selection control
◆ Built-in Bluetooth wireless audio streaming
◆ USB and SD card MP3 playback
◆ Integrated FM radio tuner
◆ Supports 70V / 100V and 4–16Ω speaker systems
◆ LCD multimedia display with front control panel
◆ 3 microphone inputs and 2 AUX inputs
◆ Mic 1 balanced XLR input with phantom power
◆ Telephone paging and EMC emergency input
◆ VOX priority muting function
◆ Independent bass, treble, and master volume controls
◆ LED indicators for signal, clip, protection, and power
◆ Short-circuit, overload, overheating, and clip protection
◆ Forced-air cooling system
◆ AC and 24V DC dual power operation
◆ Professional rack-mountable metal chassis
Technical Specifications
| Specification | Details |
|---|---|
| Model | DA-240MT |
| Amplifier Type | 6-Zone Digital Mixer Amplifier |
| Rated Power Output | 240W |
| Speaker Zones | 6 Zones |
| Speaker Outputs | 70V / 100V / 4–16Ω |
| Audio Sources | Bluetooth, USB, SD Card, FM Radio |
| Mic Inputs | 3 |
| AUX Inputs | 2 |
| Telephone Paging Input | Yes |
| EMC Input | Yes |
| Mic 1 Connector | Balanced XLR with Phantom Power |
| Frequency Response | 60Hz – 15kHz |
| THD | <0.5% |
| Signal-to-Noise Ratio | ≥85dB |
| Cooling | Forced Air Cooling |
| Protection | Overload, Short Circuit, Thermal, Clip |
| Power Supply | AC 110–240V & 24V DC |
| Installation Type | Rack Mount |
Applications
◆ Public address systems
◆ Multi-zone background music systems
◆ Schools and educational facilities
◆ Mosques and prayer halls
◆ Hotels and hospitality venues
◆ Retail stores and supermarkets
◆ Factories and warehouses
◆ Paging and announcement systems
◆ Commercial multi-zone audio installations
Package Contents
◆ CMX DA-240MT Mixer Amplifier
◆ Remote Control
◆ Power Cable
◆ User Manual
Additional Information
Brand: CMX Audio
Model: DA-240MT
Type: 6-Zone Mixer Amplifier
Official Website: CMX Audio
Official Product Series: DA-MT Series Mixer Amplifiers
