Cudy RE1200 Outdoor AC1200 Wi-Fi Range Extender
Cudy RE1200 Outdoor AC1200 Wi-Fi Range Extender
Couldn't load pickup availability
Cudy RE1200 Outdoor AC1200 Wi-Fi Range Extender

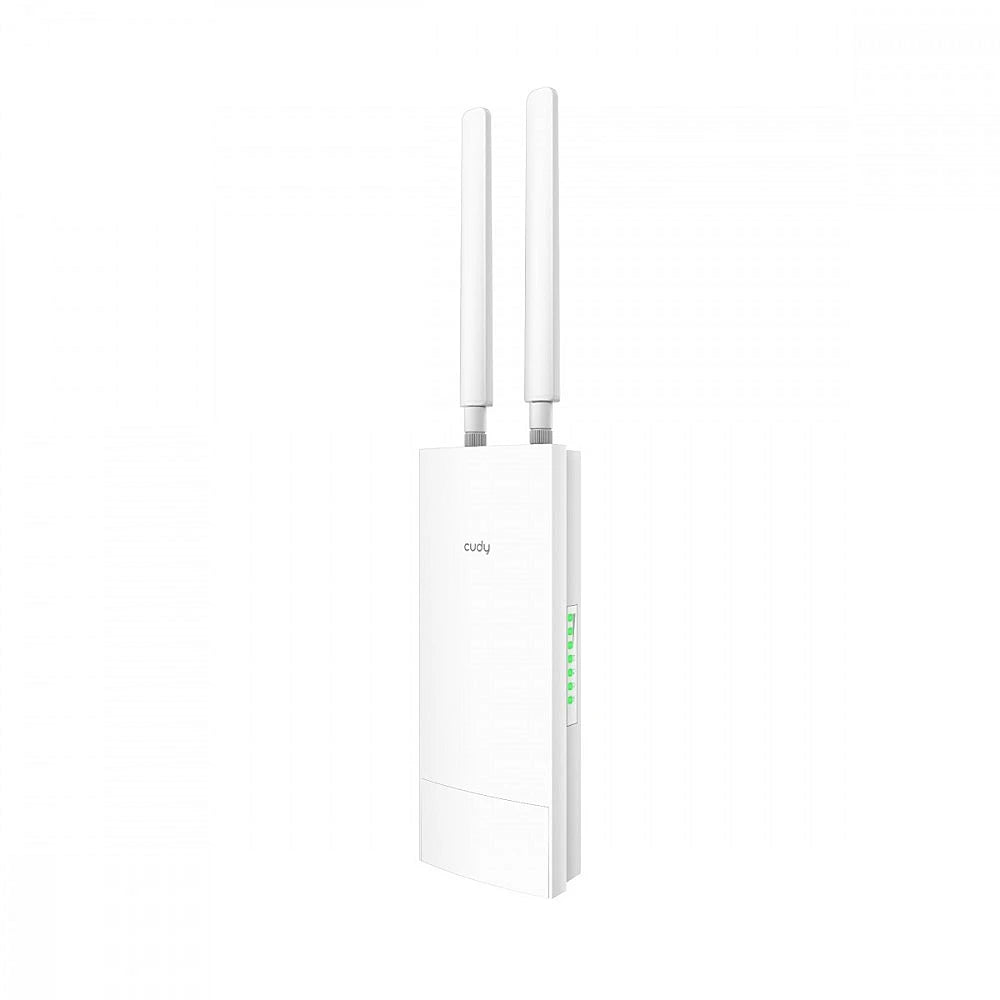

The Cudy RE1200 Outdoor is an AC1200 dual-band Wi-Fi 5 range extender and access point in an IP65 weatherproof case. It delivers up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, is powered by 24 V passive PoE through its Ethernet cable, and mounts on a wall or pole to bring Wi-Fi to gardens, yards and other outdoor areas.
AC1200 dual-band Wi-Fi: The two bands work at the same time: 867 Mbps on 5 GHz for faster devices and 300 Mbps on 2.4 GHz for longer reach. MU-MIMO and beamforming help it serve several devices and direct the signal toward them.
Built for outdoor use: The unit has an IP65 water- and dust-proof housing and 4 kV lightning surge protection on the Ethernet port. Cudy rates it for operation from -20 to 60 °C, so it can stay installed outdoors all year.
Single-cable power (24 V passive PoE): Power and data travel over one Ethernet cable from the included 24 V passive PoE adapter. You only need one cable run to the mounting point, and the adapter stays indoors.
Extender or access point: Use it as a wireless extender to repeat an existing Wi-Fi network, or as an access point connected by cable to your router. Setup with a Cudy Mesh router can be done by WPS or Ethernet.
Cudy Mesh satellite: With a Cudy Mesh router or access point, the RE1200 Outdoor can join the network as a mesh satellite node, so outdoor coverage becomes part of the same Wi-Fi network as your indoor devices.

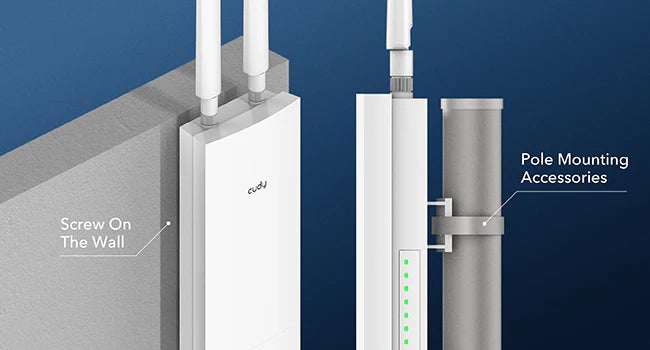

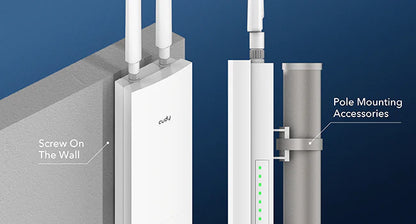

Detachable antennas and mounting kit: Two detachable dual-band antennas with RP-SMA connectors are included, together with a kit for wall or pole mounting.
Who it's for / Works with
Requires an existing router or gateway. The mesh feature works with Cudy Mesh routers and access points.
Good to know

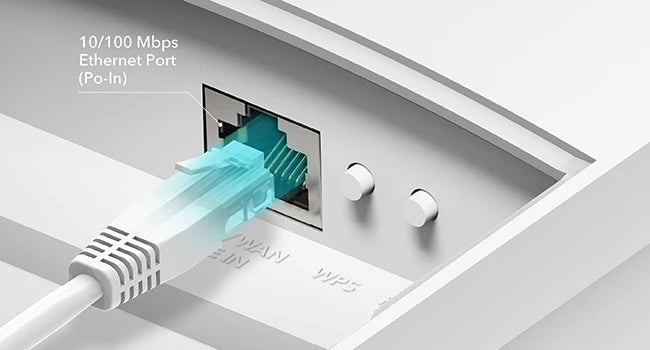

The Ethernet port is 10/100 Mbps. The unit is powered by 24 V passive PoE from the included adapter. The PoE adapter is not waterproof and must be installed indoors.
What's in the Box
RE1200 Outdoor unit, 2 x detachable Wi-Fi antennas, 24 V passive PoE adapter, Ethernet cable (1 m), mounting kit, installation guide.
Technical Specifications
| Model | RE1200 Outdoor (V1.0) |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac/n/g/b/a), dual-band |
| Wi-Fi Speed | 5 GHz: up to 867 Mbps; 2.4 GHz: up to 300 Mbps |
| Wireless Functions | MU-MIMO, beamforming, Cudy Mesh satellite |
| Channel Width | 20/40/80 MHz |
| Operation Modes | Wireless Extender, Access Point |
| Antennas | 2 x detachable dual-band, RP-SMA |
| Ethernet Port | 1 x 10/100 Mbps RJ45 (PoE in) |
| Buttons | Reset, WPS |
| Power | 24 V passive PoE (adapter included) |
| Weather Protection | IP65 (unit only, not the PoE adapter) |
| Surge Protection | 4 kV lightning protection (Ethernet port) |
| Operating Temperature | -20 to 60 °C |
| Storage Temperature | -40 to 70 °C |
| Mounting | Wall, pole (kit included) |
| Dimensions | Unit 240 x 100 x 53.7 mm; antenna 197.5 x 21.6 x 15.5 mm |
| Weight | 415 g |
📄 Datasheet: Download the official Cudy RE1200 Outdoor datasheet (PDF)
