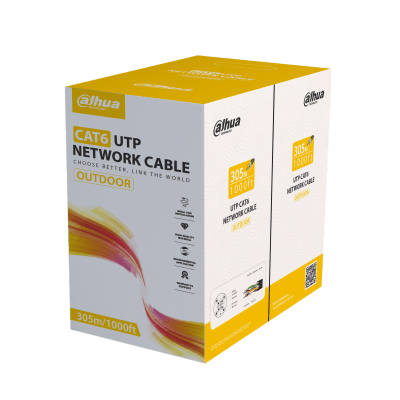

Dahua PFM920-6UN 305m Outdoor CAT6 U/UTP Network Cable | 24AWG Pure Copper

Dahua PFM920-6UN 305m Outdoor CAT6 U/UTP Network Cable | 24AWG Pure Copper

Product Description

The Dahua PFM920-6UN is a professional 305-meter Outdoor CAT6 U/UTP Network Cable designed for reliable Ethernet and Power over Ethernet (PoE) installations. It features a high-purity 99.97% oxygen-free copper conductor and a durable black PE outer sheath with a certain degree of waterproof protection, making it suitable for outdoor networking, CCTV, IP camera and other structured cabling applications.

With a 24AWG conductor, CAT6 construction and a 305m carton, the PFM920-6UN provides a practical solution for professional network and surveillance installations where reliable copper connectivity is required.

Key Features

🔌 Pure Copper Conductor — 99.97% high-purity oxygen-free copper

📏 305m Box — Approximately 1,000 ft of cable per carton

🌐 CAT6 U/UTP — Suitable for Ethernet networking and structured cabling

⚡ PoE Compatible — Designed to support Power over Ethernet applications

🌧️ Outdoor Construction — Black PE outer sheath with a certain degree of waterproof protection

💪 24AWG — 0.53mm ± 0.02mm conductor structure

🛡️ Durable Construction — HDPE insulation and protective outer sheath

🌡️ Outdoor Temperature Range — Operating temperature from -20°C to +60°C

♻️ RoHS Compliant — Environmentally friendly materials

🔥 Flame Test Compliant — IEC 60332-1-2

✅ 10-Year Warranty — Manufacturer warranty specified by Dahua

Technical Specifications

Model: PFM920-6UN

Cable Type: Outdoor U/UTP CAT6 Network Cable

Brand: Dahua

Cable Length: 305m ± 2m

Cable Category: CAT6

Shielding: U/UTP

Conductor Material: Oxygen-Free Copper

Copper Purity: 99.97%

Conductor Gauge: 24AWG

Conductor Structure: 0.53mm ± 0.02mm

Insulation Material: HDPE

Minimum Insulation Thickness: 0.21mm

Inner Sheath Material: PVC

Inner Sheath Diameter: 5.6mm ± 0.4mm

Outer Sheath Material: PE / MDPE

Outer Sheath Color: Black

Installation Bending Radius: More than 8× the outer cable diameter

Operating Temperature: -20°C to +60°C

Installation Temperature: 0°C to +50°C

Storage Temperature: -10°C to +40°C

Maximum Attenuation: 34.8dB/100m @ 250MHz

Return Loss: ≥17.3dB/100m @ 250MHz

Flame Standard: IEC 60332-1-2

Package: 305m carton

Net Weight: 13.5kg ± 0.6kg

Gross Weight: 14.5kg ± 0.6kg

Applications

📹 IP Camera & CCTV Installations

⚡ PoE Network Devices

🏢 Outdoor Network Infrastructure

🌐 Ethernet Structured Cabling

🏠 Residential & Commercial Networking

🏭 Professional Surveillance Systems
