DSPPA 250W 100V 6 Zones Mixing Amplifier /MP610P

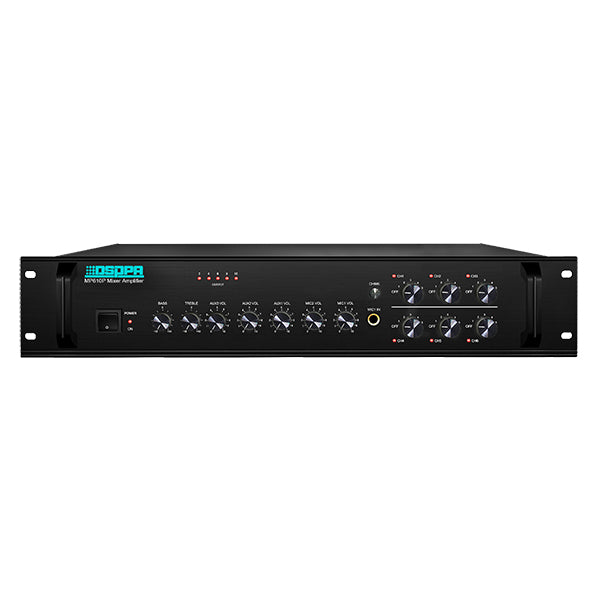

The DSPPA MP610P is a 250W mixing amplifier with a 6-zone speaker selector, and each zone has its own volume control. It has 2 unbalanced microphone inputs and 3 AUX inputs, with bass, treble and master volume controls, and drives 100V lines or 4-16 Ω speakers.
6 Zones: The speaker output is split into 6 zones, each with individual volume control. You can play music or announcements in some areas and set a different level in others.
Paging Priority: Mic 1 has priority and muting function, so announcements come through over the music. A built-in chime is provided for speech and paging notification.

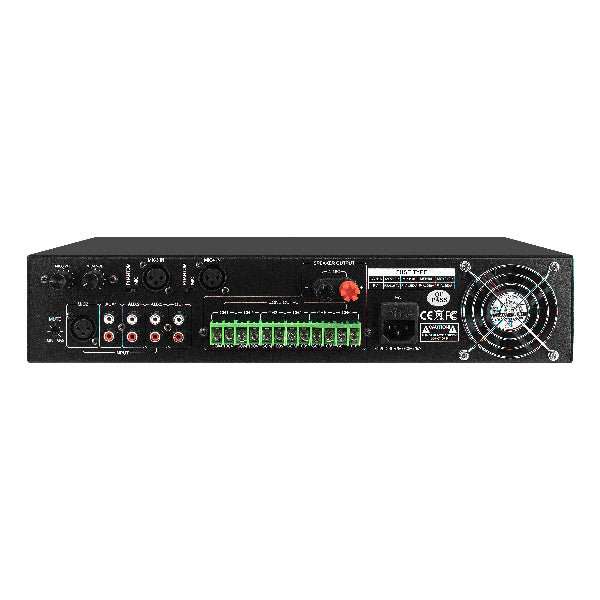

Inputs and Output: There are 2 microphone inputs and 3 AUX line inputs, each with individual volume control. An AUX line output is provided for power extension.
Tone Control: Bass and treble controls shape the speaker output, and a master volume sets the overall level.
Output Options: The speaker output is selectable between 100V and 4-16 Ω for different uses.
Who it's for / Works with
DSPPA lists uses such as supermarkets and classrooms.
Good to know
Power requirement is AC 220V / 50 Hz.
Technical Specifications
| Model | MP610P |
| Rated output | 250W |
| Speaker output | 100V & 4-16 Ω |
| Zones | 6, each with individual volume |
| Inputs | 2 MIC (unbalanced), 3 AUX |
| Output | 1 AUX line output |
| Input sensitivity | Mic < 3.5 mV, Line < 300 mV |
| Frequency response | 80 Hz – 16 kHz (±3 dB) |
| Distortion | < 0.5% (1 kHz) |
| Protection | AC fuse, DC voltage, overload, short-circuit |
| Power requirements | AC 220V / 50 Hz |
| Power consumption | 500W |
| Unit size (L × W × H) | 484 × 355 × 88 mm |
| Packing size (L × W × H) | 555 × 455 × 185 mm |
| Net / gross weight | 14 kg / 16 kg |
📄 Datasheet: Download the official DSPPA MP610P datasheet (PDF)
