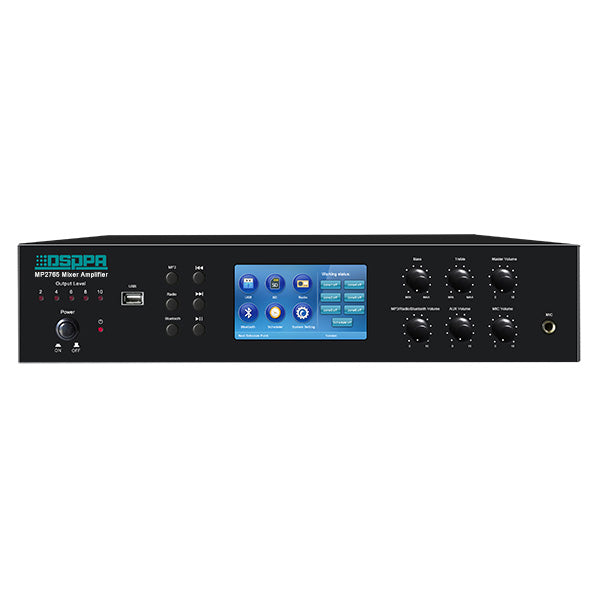

DSPPA 650W 6 Zones Mixer Amplifier | MP2765

DSPPA 650W 6 Zones Mixer Amplifier | MP2765

The Integrated Mixer Amplifier MP2765 is a 6 zones mix amplifier integrated with the functions of U disk, SD card, tuner, radio, Bluetooth, zones and timer. With various functions, including song files playing, radio, schedule time etc. Touch screen control, all graphical interface, the operation is very simple and user-friendly. The device can meet the requirements of the users and can be widely applied.

Features

◆ Rate power:650W Power output: 100V
◆ Support USB/SD/MP3/AM & FM/Bluetooth/schedule player Built-in Bluetooth receiver module.

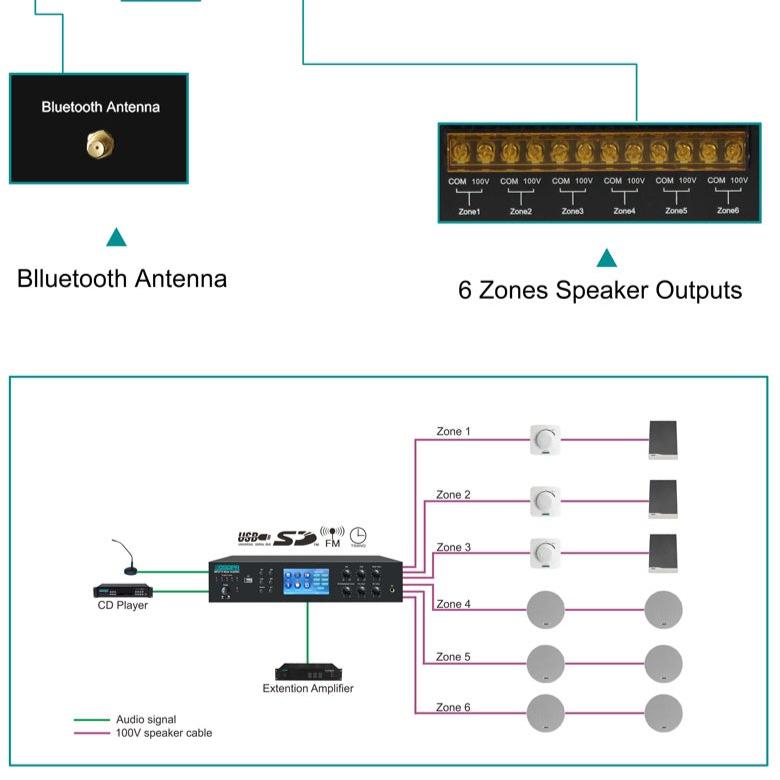

◆ 6 zones output with separated switch control
◆ 4.3” TFT capacitance touch screen.
◆ 1 AUX ,1 Mic input ,1 AUX output.
◆ Built-in 4G MP3 program memory.
◆ Built-in radio; it can be manually / automatically searched and can store 40 radio channels.
◆ Separate volume control for MP3/FM/Bluetooth, AUX, Mic inputs

DSPPA 650W 6 Zones Mixer Amplifier | MP2765 Specifications:

General
Type: 100V Public Address Mixing Amplifier
Output Method: 100V Constant Voltage
Power Supply: AC 220–240V / 50–60Hz
Protection: AC Fuse, DC Output Protection, Overload Protection
Mute Function: Microphone Input Priority with 0 to -30dB Attenuation

━━━━━━━━━━━━━━━━━━

Power & Consumption
Rated Output Power: 650W
Power Consumption: 800W

━━━━━━━━━━━━━━━━━━

Audio Specifications
Harmonic Distortion: <0.5% (1kHz, 1/3 Rated Power)
LINE Frequency Response: 50Hz – 18kHz (±3dB)
MIC Frequency Response: 40Hz – 16kHz (±3dB)
SNR:
MIC: 70dB
LINE: 85dB

Tone Control:
Bass: ±10dB (100Hz)
Treble: ±10dB (10kHz)

━━━━━━━━━━━━━━━━━━

Input / Output
MIC Input: 600Ω – 10mV (±10%)
LINE Input: 10kΩ – 300mV (±10%), Unbalanced
AUX Output: 100Ω – 1V (0dBV)

━━━━━━━━━━━━━━━━━━

Physical Specifications
Dimensions: 430 × 360 × 88 mm
