DSPPA 8 Channel Audio Mixer /DMX08

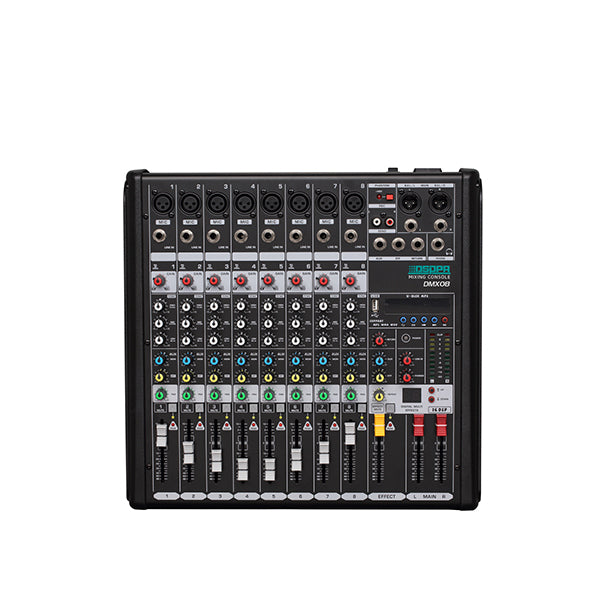

The DSPPA DMX08 is an 8-channel mixing console that mixes microphones and line sources into a stereo output and group outputs. It adds built-in DSP effects, USB playback and recording, and Bluetooth music playback, in a body of 385 × 367 × 100 mm.
8 balanced microphone channels. The DMX08 has 8 XLR balanced mono channel inputs with a low-noise circuit design and large headroom. Each mono channel also has a TRS line input, so it takes microphones or line-level sources.
Per-channel control. Every channel has a 3-band EQ (high 12 kHz, mid 2.5 kHz, low 80 Hz, ±15 dB), a MUTE switch and a 60 mm fader. You can shape and balance each voice or instrument separately.
Outputs, AUX and return. There is 1 stereo bus output and 2 AUX bus outputs (including FX), plus 1 return and 1 RAC output. AUX sends can feed an external effects unit or a monitor system, and a phones socket lets you listen to the mix.
Phantom power and effects. Built-in 48 V phantom power runs condenser microphones without an external supply. 16 built-in DSP effects can be added to the mix directly.
USB, Bluetooth and metering. USB audio playback and USB recording are supported, and Bluetooth plays MP3 music from a phone. An LED display shows the playback status and a 10-segment, three-colour meter shows the levels.
Who it's for / Works with
DSPPA says the stereo input channels take TRS and RCA line inputs, so the mixer connects to microphones, line-level devices and stereo synthesizers.
Good to know
- Power supply is 100-240 V, 50 Hz.
- The 30 W figure in DSPPA's table is not explained further, so it is not listed here as amplifier power.
Technical Specifications
| Model | DMX08 |
| Mono channel inputs | 8 × XLR balanced (with TRS line input) |
| Max. output level | 18 dB |
| S/N | ≥ 83 dB |
| THD | ≤ 0.02% @ 0 dB, 1 kHz |
| Frequency response | 20 Hz - 20 kHz ±0.5 dB |
| Channel crosstalk | < -75 dB @ 1 kHz |
| Input impedance | MIC 600 Ω; LINE 10 kΩ |
| Stereo input impedance | 10 kΩ |
| Output impedance | 100 Ω |
| Input level | MIC IN -60 dB; LINE IN -40 dB |
| Channel gain | -30 dB |
| 3-band EQ | ±15 dB (HI 12 kHz, MID 2.5 kHz, LOW 80 Hz) |
| Phantom power | 48 V |
| DSP effects | 16 |
| Outputs | 1 stereo bus, 2 AUX bus (incl. FX), 1 return, 1 RAC |
| Power supply | 100-240 V, 50 Hz |
| Product dimensions | 385 × 367 × 100 mm |
| Net / gross weight | 4 kg / 5 kg |
📄 Datasheet: Download the official DSPPA DMX08 datasheet (PDF)
