DSPPA PA Wall Mount Speaker | DSP112

DSPPA PA Wall Mount Speaker | DSP112

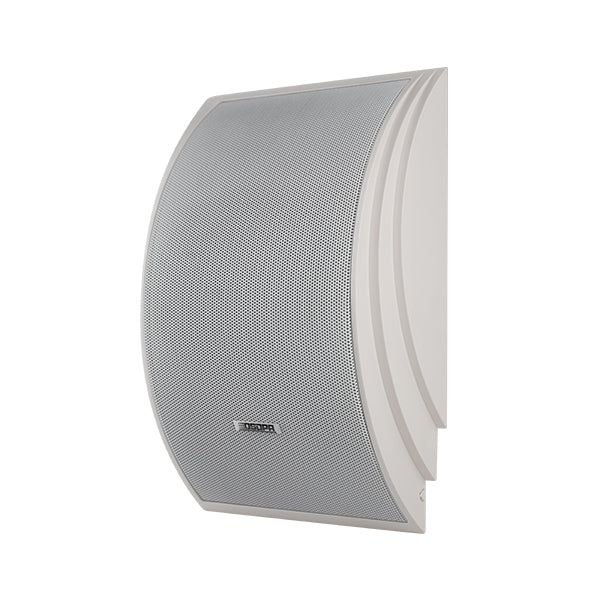

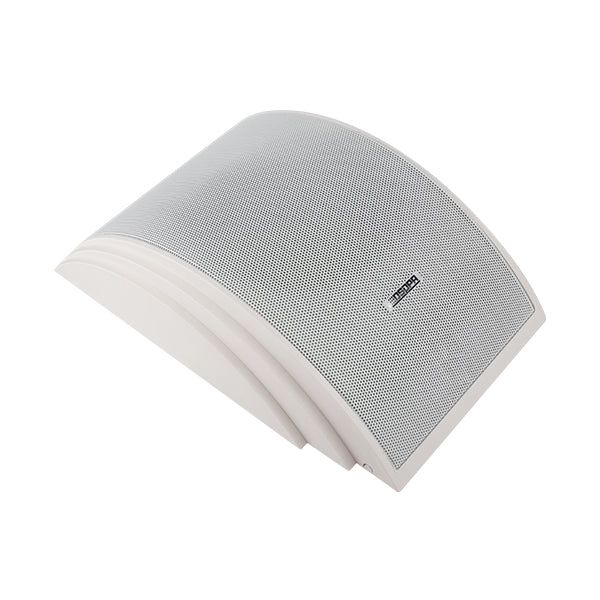

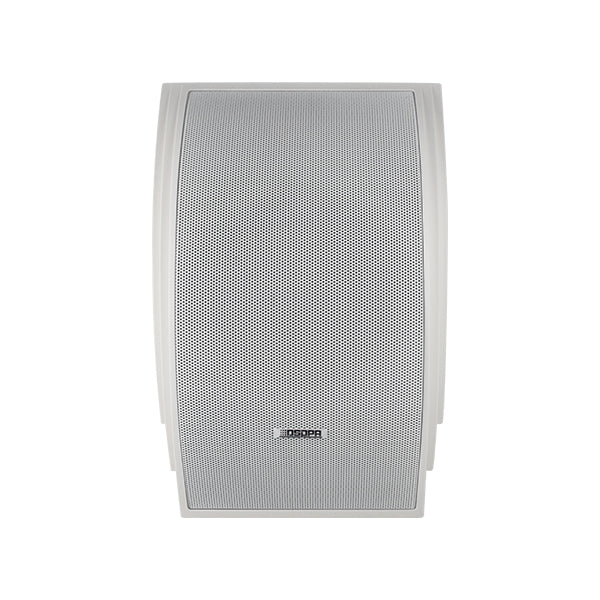

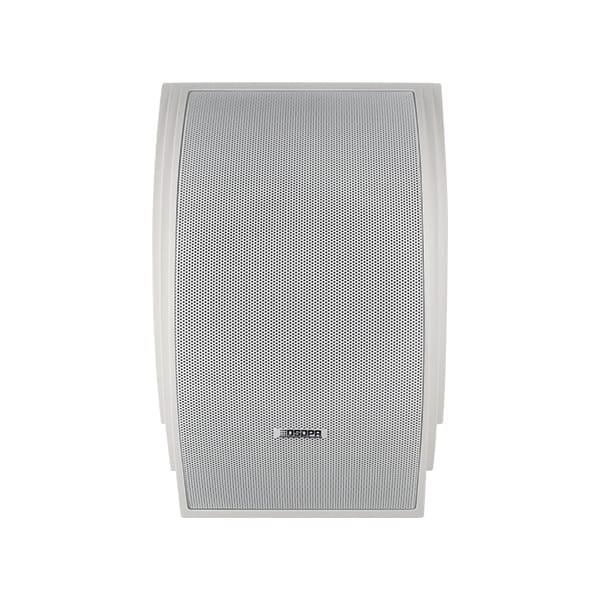

The DSPPA DSP112 is a 6 W wall-mount speaker for public address (PA) systems that work on 70 V or 100 V speaker lines. It uses one 4.5" speaker unit in an engineering-plastic housing that measures 277 x 180 x 80 mm and weighs 0.95 kg.

Line-voltage PA speaker: The DSP112 connects to a 70 V or 100 V PA amplifier, so many speakers can be wired on one long cable run to cover several rooms or corridors. Its several input terminals let the installer choose the power the speaker takes from the line, to set how loud each area is.

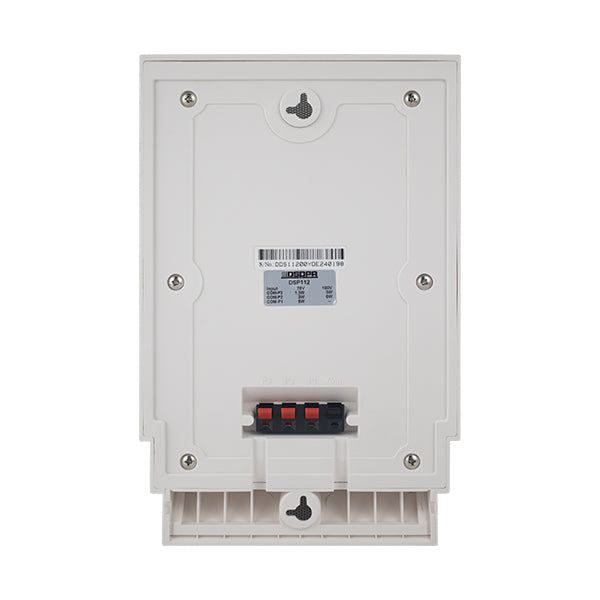

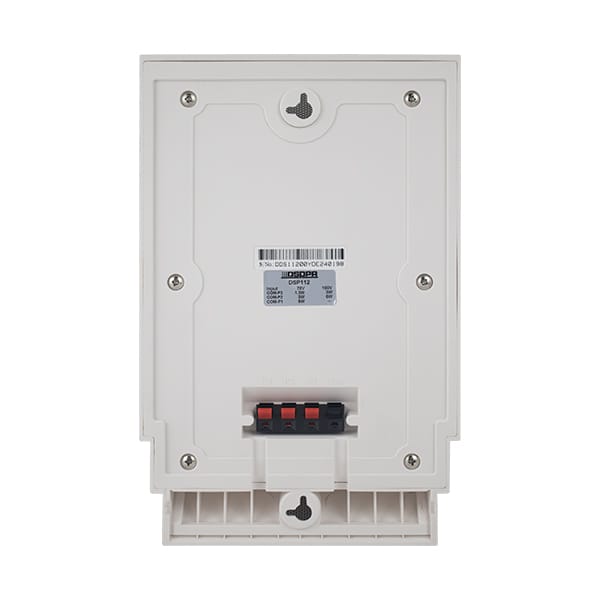

Horizontal or vertical mounting: Hanging holes on the back let you hang the speaker on the wall either horizontally or vertically, so it can fit the space available in each room.

Engineering-plastic housing: DSPPA makes the cabinet from engineering plastic, chosen for long-term durability without deforming or fading.

Sensitivity and sound level: The 4.5" unit has a sensitivity of 91 ±2 dB (1 W / 1 m) and reaches a maximum sound pressure level of 98 ±2 dB at 1 m.

Who it's for / Works with

DSPPA lists hotels, commercial buildings, shopping malls, schools and entertainment places as typical uses. The speaker is driven by a 70 V or 100 V PA amplifier.

Good to know

The amplifier is not part of this product: the DSP112 must be connected with speaker cable to a 70 V / 100 V PA amplifier.

Technical Specifications

📄 Datasheet: Download the official DSPPA DSP112 datasheet (PDF)
