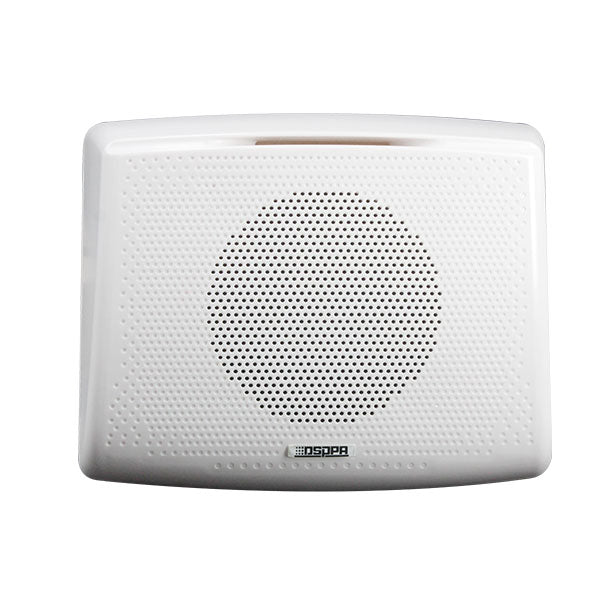

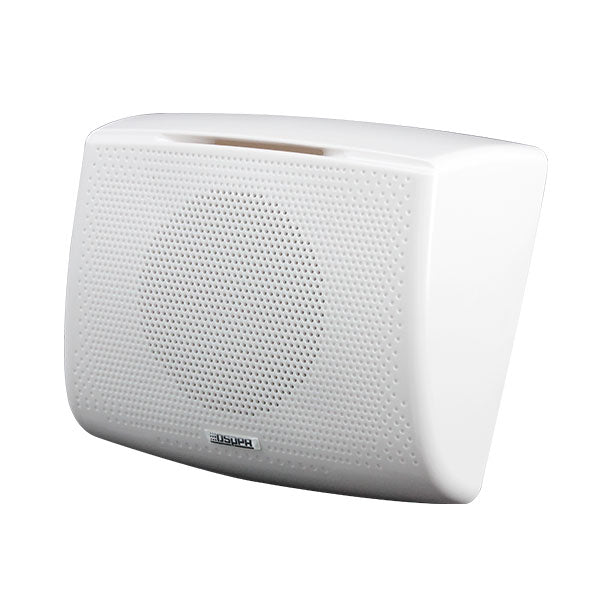

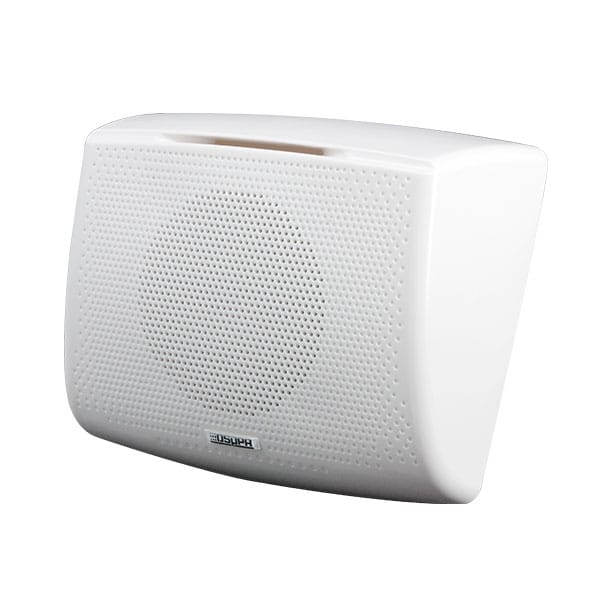

DSPPA 6W Wall Mount Speaker | DSP116II
The DSPPA DSP116II is a 6 W wall-mount speaker for 70 V / 100 V PA systems, built around a 4.5-inch full-range speaker with an internal pure copper wire transformer. DSPPA designed it for cost-sensitive projects that play music and announcements, in a compact housing of 188 x 228 x 101 mm.
70 V / 100 V power taps: The built-in audio transformer lets the speaker work on PA speaker lines. On a 70 V line you can choose 3 W or 6 W, and on a 100 V line it takes 6 W, so the volume of each area can be set at the speaker.
Clear sound for music and paging: DSPPA describes the sound as clear and bright. The speaker covers 180 Hz – 15 kHz, with a sensitivity of 90 ±2 dB and a maximum sound pressure level of 100 ±2 dB at 1 m.

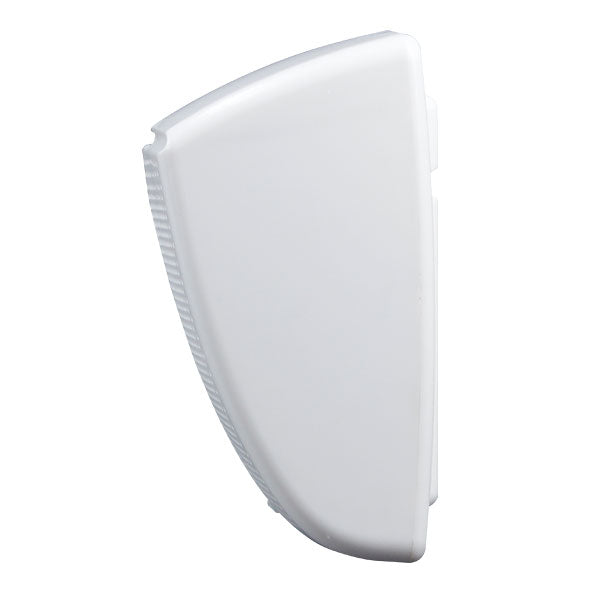

Compact, streamlined housing: The streamlined, integrated design is made to match different decoration styles. DSPPA uses eco-friendly, durable materials for the housing, which weighs 0.8 kg.
Who it's for / Works with
The speaker is used to play music and broadcast announcements, connected to a PA amplifier with a 70 V or 100 V output.
Technical Specifications
| Model | DSP116II |
| Speaker Unit | 4.5" x 1 |
| RMS Power | 6 W |
| 70 V Taps | 3 W / 6 W |
| 100 V Tap | 6 W |
| Frequency Response | 180 Hz – 15 kHz |
| Sensitivity (1 m, 1 W) | 90 ±2 dB |
| Max. SPL (1 m) | 100 ±2 dB |
| Dimensions (H x W x D) | 188 x 228 x 101 mm |
| Net Weight | 0.8 kg |
📄 Datasheet: Download the official DSPPA DSP116II datasheet (PDF)
