DSPPA 10W Miniature Satellite Wall Mount Speaker (Volt) | DSP119

DSPPA 10W Miniature Satellite Wall Mount Speaker (Volt) | DSP119

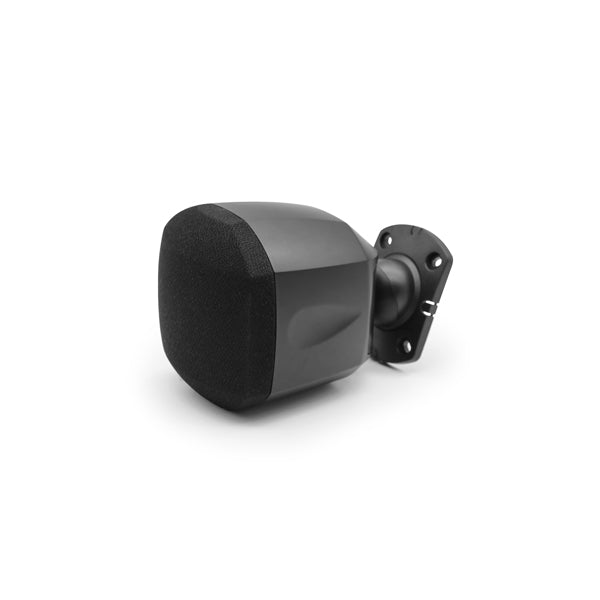

The DSPPA DSP119 is a 10 W miniature satellite speaker for 100 V constant-voltage PA systems. It has a 2.75" paper cone driver, a built-in transformer with power taps, and a bracket for mounting on walls or ceilings at different angles.

Key Features

100 V line with power taps: The built-in transformer offers N/C, 10 W, 5 W, 2.5 W and 1.25 W taps on a 100 V line. You choose how much power each speaker draws, so you can set a lower level in a small room and a higher level in a larger area on the same amplifier line.

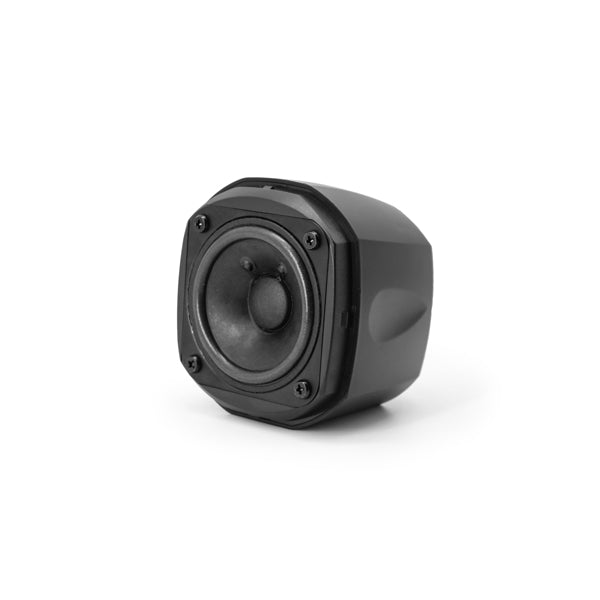

Small size, full-range sound: A single 2.75" paper cone driver covers 100 Hz to 20 kHz (±3 dB) with a sensitivity of 85 ±3 dB. The ABS housing measures only 94 x 83 x 118 mm, so the speaker stays discreet in shops, cafes and offices.

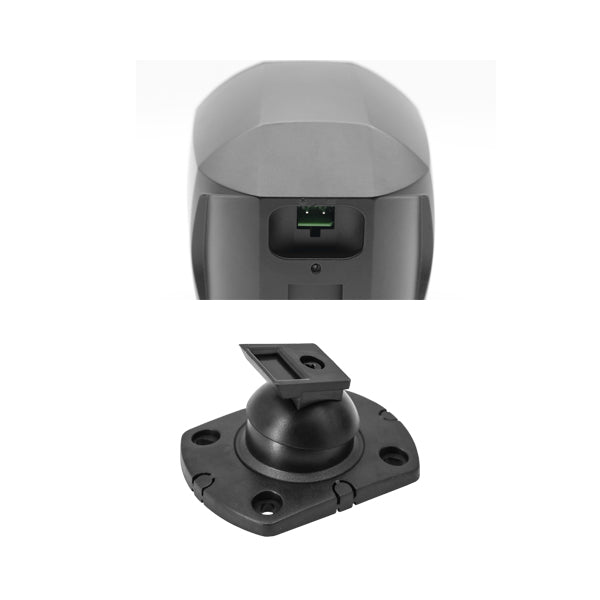

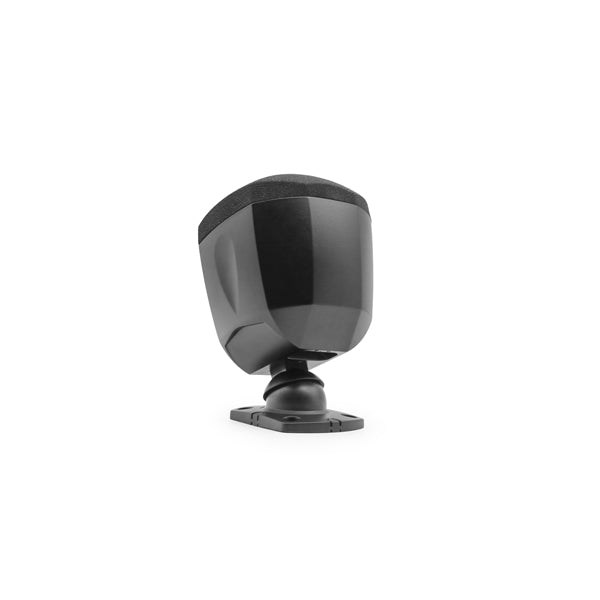

Bracket mounting at any angle: The supplied bracket lets you mount the speaker in corners or on walls and ceilings and aim it at various angles. Fix the bracket, connect the speaker wire to the phoenix connector, then attach the speaker.

Who it's for / Works with

DSPPA lists offices, hotels, bars and shopping malls for this speaker. It works with a PA amplifier that has a 100 V speaker line output.

Good to know

• DSPPA's datasheet lists a 100 V input for the DSP119; a 70 V input is not stated. For an 8 Ω amplifier output, the matching model is the DSP118.
• The amplifier is not part of this product: the speaker must be wired with speaker cable to a suitable PA amplifier.

Technical Specifications

📄 Datasheet: Download the official DSPPA DSP118 / DSP119 datasheet (PDF)
