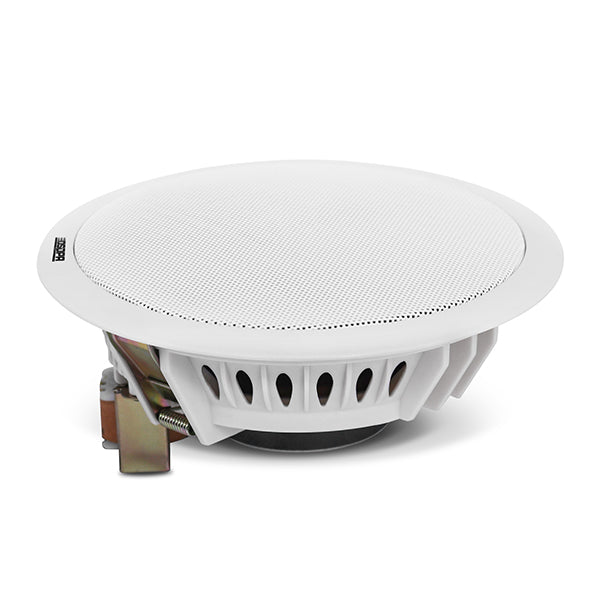

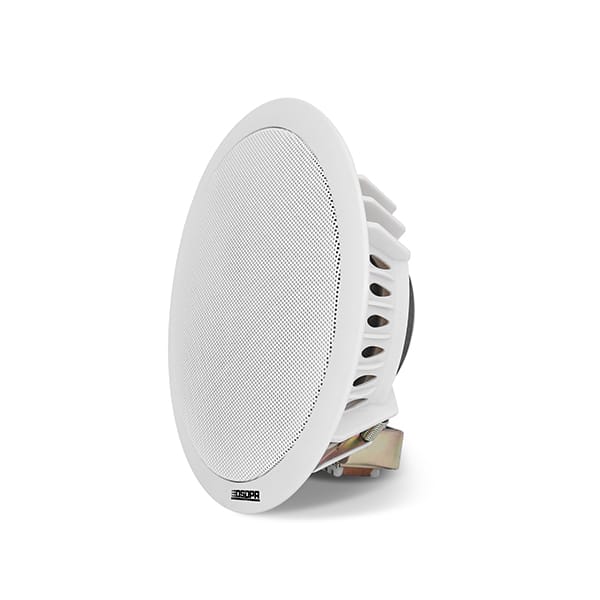

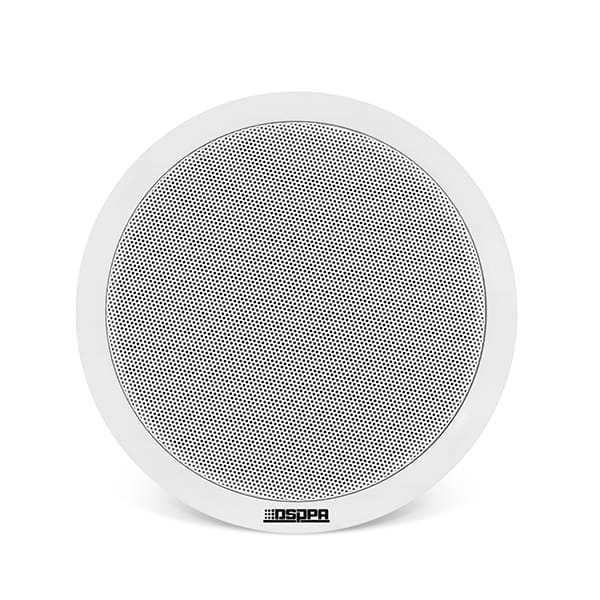

DSPPA 6W Round Type 6.5 Ceiling Speaker -DSP124L
DSPPA DSP124L Round Type 6.5 Ceiling
DSP124L Ceiling Speaker is a 6.5″ round speaker with carbon alloy aluminum mesh. It's an ideal choice for you when you are in need of a ceiling speaker requiring perfect sound quality. This product is widely used in schools, offices, cafes, hospitals, hotels, and shopping malls.
Features
● Fashionable round edge and the carbon alloy aluminum mesh design with RAL white coating to match with any indoor place perfectly.
● 6.5" unit with magnetic circuit encapsulated of special engineering plastic process.
● Meet the IEC 268-5 power handling capacity (PHC) standard.
● Run continuously for 100 hours and carry out simulating acoustic feedback exposure (SAFE) test.
● Bear double rated powers within a short period to ensure its high reliability under extreme conditions, prolong its service life, and reduce the possibility of occurrence of fault or degradation.
● Powerful clip design, durable and reliable, easy to install.
DSPPA 6W Round Type 6.5 Ceiling Speaker | DSP124L Specification:
6.5" Ceiling Speaker – 6W (70V / 100V)
━━━━━━━━━━━━━━━━━━
Speaker Specifications
Unit Driver: 6.5″ × 1
Rated Power (RMS): 6W
Maximum Power: 10W
Impedance: 8Ω
Rated Input: 70V / 100V
━━━━━━━━━━━━━━━━━━
Audio Performance
Frequency Response: 90Hz – 20kHz
Sensitivity (1W / 1m): 90 ±2dB
Maximum SPL (1m): 92 ±2dB
━━━━━━━━━━━━━━━━━━
Installation & Dimensions
Mounting Hole Size: Ø170 mm
Dimensions: 105 × 190 mm
Weight: 0.66 kg
