DSPPA 6.5 Inch Frameless Ceiling Speaker (Ohm) | DSP6011L
DSPPA 6.5 Inch Frameless Ceiling Speaker (Ohm) | DSP6011L
Couldn't load pickup availability
DSPPA 6.5 Inch Frameless Ceiling Speaker (Ohm) | DSP6011L

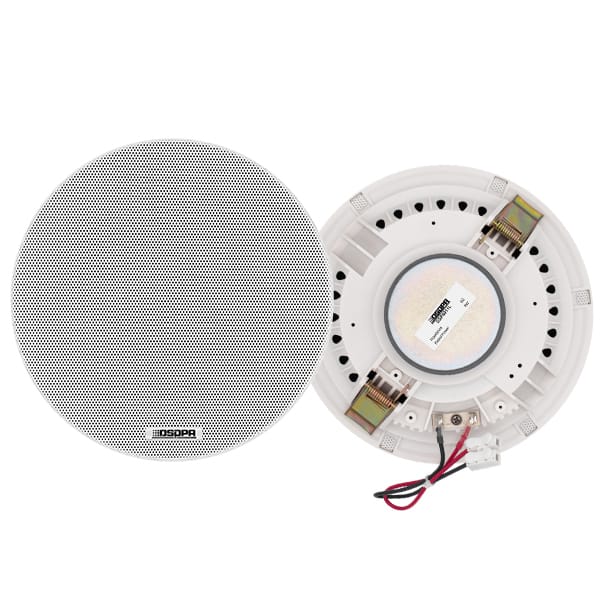

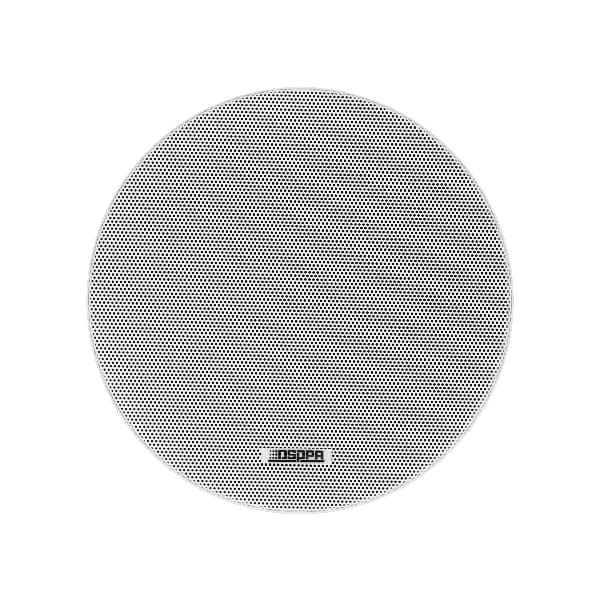

The DSPPA DSP6011L is a 6.5-inch frameless ceiling speaker rated at 6 W at 8 Ω. It has a thin-edge, flat design with a carbon alloy aluminium mesh in RAL white, and covers 110 Hz – 15 kHz.
Full-range 6.5-inch driver: The full-range driver has its magnetic circuit encapsulated in engineering plastic and a hot-pressed paper cone, designed by DSPPA for strong reproduction of both voice and music. Sensitivity is 90 dB (1 W / 1 m) and the maximum sound pressure level is 97 dB at 1 m.
Built for reliability: DSPPA states the speaker meets the IEC 268-5 power handling capacity (PHC) standard, runs continuously for 100 hours in a simulated acoustic feedback exposure (SAFE) test, and can take double its rated power for a short time. This reduces the chance of faults or loss of performance over its service life.

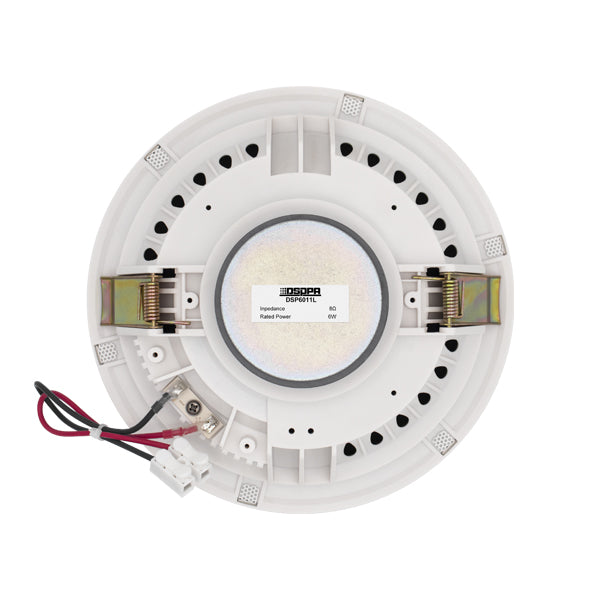

Easy installation: Cut a Ø165–170 mm hole, and the spring clips hold the speaker in ceilings of different thicknesses. DSPPA also describes the housing as UV-level highly flame retarding.
Who it's for / Works with
DSPPA lists hotels, shopping malls, supermarkets, schools and entertainment and recreation facilities.
Good to know
This is the 8 Ω version, marked "(Ohm)" in the title. It needs a Ø165–170 mm cut-out in the ceiling.
Technical Specifications
| Model | DSP6011L |
| Speaker Unit | 6.5" x 1 |
| Rated Power | 6 W |
| Impedance | 8 Ω |
| Effective Frequency Range | 110 Hz – 15 kHz |
| Sensitivity (1 W / 1 m) | 90 dB |
| Max. SPL (1 m) | 97 dB |
| Ceiling Cut-out | Ø165 – 170 mm |
| Storage Temperature | -25 °C to +55 °C |
| Dimensions | 190.5 x 70 mm |
| Weight | 0.60 kg |
📄 Datasheet: Download the official DSPPA DSP6011L datasheet (PDF)
