DSPPA 20W Wall Mount Speaker (Black - White) | DSP8062

DSPPA 20W Wall Mount Speaker (Black - White) | DSP8062

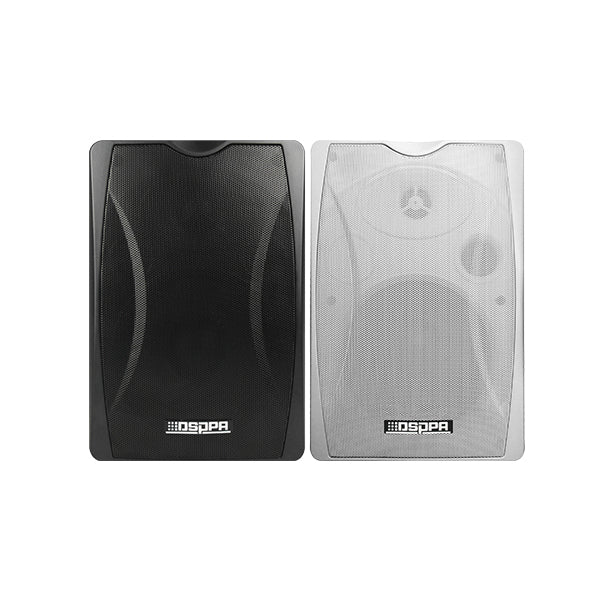

The DSPPA DSP8062 is a 20 W two-way wall mount speaker with a power tap. It works on 70 V or 100 V PA lines or on an 8 Ω amplifier output, using a 4" woofer and a 1" tweeter in a fireproof ABS cabinet with an aluminium grille. It is available in black or white.

Choose the color in the options: Black or White.

Key Features

Rear power knob for 70 V, 100 V or 8 Ω: A knob on the back selects the input mode and power. On a 70 V line the taps are 20 W - 15 W - 8 W - 4 W - 2 W, on a 100 V line 20 W - 15 W - 8 W - 4 W, and in 8 Ω mode the speaker takes 20 W. One model can therefore be used on a long multi-speaker PA line or driven directly by a low-impedance amplifier.

Two-way sound: The 4" woofer has a polypropylene diaphragm and the 1" tweeter a natural silk diaphragm, in a bass-reflex (inverse-phase) design. The speaker covers 95 Hz - 20 kHz with a sensitivity of 90 ±2 dB and a maximum SPL of 103 ±2 dB at 1 m, for clear speech and background music.

Durable materials: The grille is made of 1060 pure aluminium with hardening and anti-oxidation treatment, so it does not deform or rust easily. The cabinet is thickened UL94V-0 grade fireproof ABS, and the mounting bracket has a rust-proof treatment.

Who it's for / Works with

DSPPA lists hotels, schools, offices and factories where background music and paging are needed. The speaker works with a 70 V / 100 V PA amplifier, or with an amplifier that has an 8 Ω output.

Good to know

• The DSP8062 is a passive speaker: it has no built-in amplifier, Bluetooth or network input (those are in DSPPA's separate active series such as DSP6604/DSP6606/DSP6608).
• The amplifier is not part of this product: the speaker must be wired with speaker cable to a suitable PA amplifier.

Technical Specifications

📄 Datasheet: Download the official DSPPA DSP8062 / DSP8063 / DSP8064 datasheet (PDF)
