DSPPA 2x20W Mini Bluetooth Amplifier | Mini40

DSPPA 2x20W Mini Bluetooth Amplifier | Mini40

The DSPPA Mini40 is a compact 2 × 20W stereo amplifier with Bluetooth and a wired line input. It drives two 8 Ω speakers and measures only 125 × 100 × 35 mm.

Two ways to play music: You can stream music over Bluetooth 2.1+EDR (range up to 10 m) from a phone or tablet, or connect a wired source to the line input (sensitivity 1 V, impedance above 10 kΩ). This covers both casual playback from a phone and a fixed music player.

Clean stereo sound: DSPPA uses a digital power amplifier with differential input and output and a two-stage filter circuit. The datasheet gives a signal-to-noise ratio above 82 dB, distortion below 0.3% and a 20 Hz – 20 kHz frequency response for full-range stereo playback.

Protection for the amplifier and speakers: The Mini40 has over-temperature, over-current and short-circuit protection, plus soft-start, which helps protect the connected speakers when the amplifier is switched on.

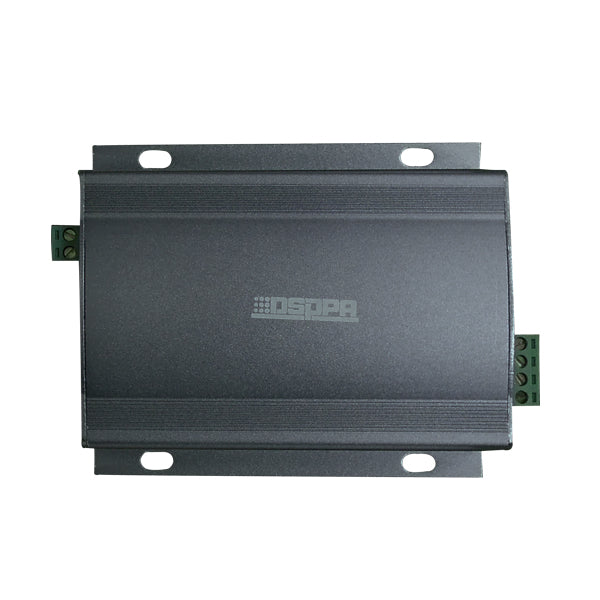

Solid small housing: The frame has rounded corners, with a frosted and oxidised surface treatment that DSPPA describes as rust-free. It can be installed horizontally or vertically with four screws.

Who it's for / Works with

DSPPA describes the Mini40 as suitable where soft background music is needed, such as hotels, small shops and homes. It works with passive 8 Ω speakers and any Bluetooth phone or tablet.

Good to know

• Power supply is 220V, 50/60Hz.
• Matched speaker impedance is 8 Ω.
• Speakers are not included.

Technical Specifications

📄 Datasheet: Download the official DSPPA MINI40 datasheet (PDF)
