EZVIZ 2K Video Intercom 2 Entry | HP7 2-Entry Kit

EZVIZ 2K Video Intercom 2 Entry | HP7 2-Entry Kit

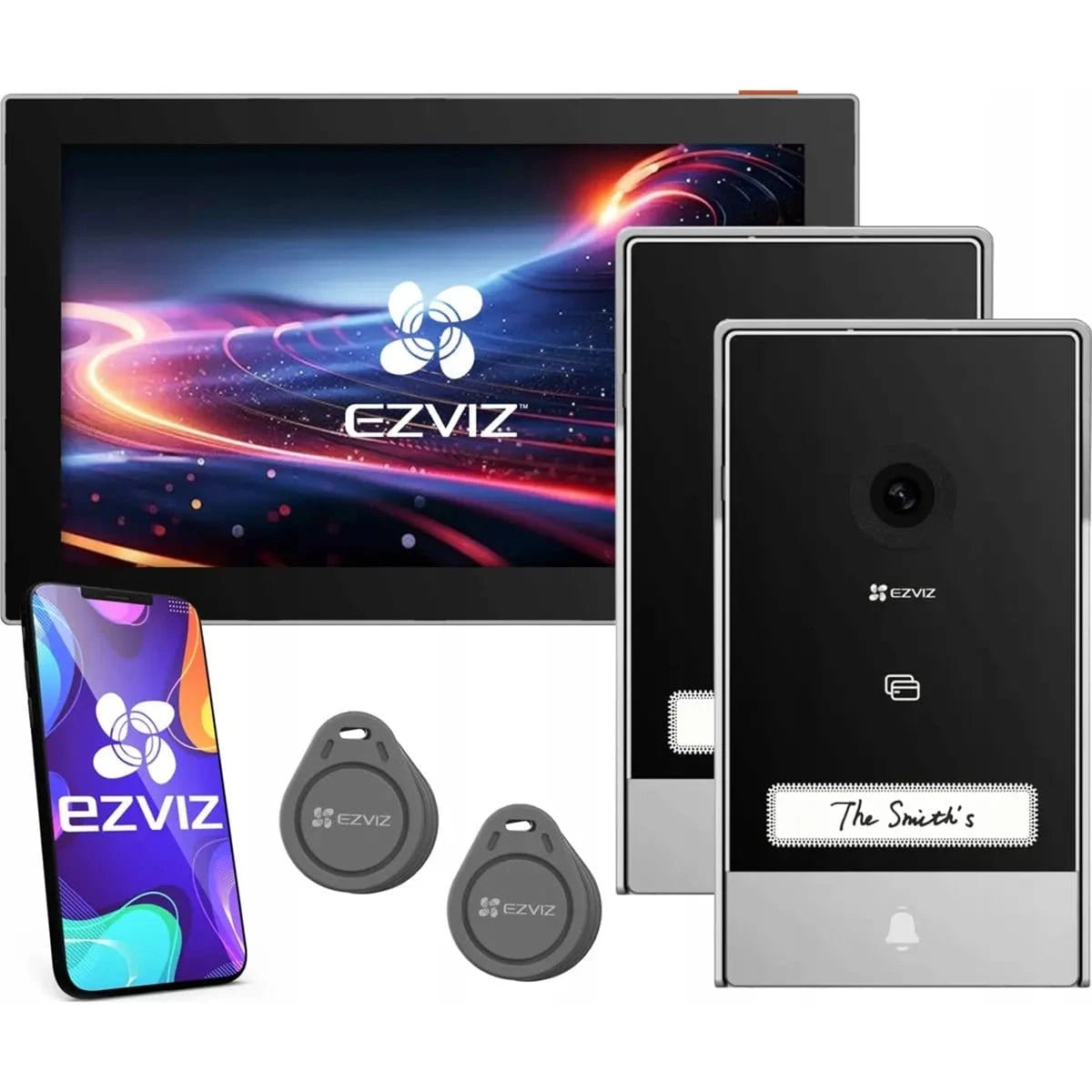

The EZVIZ HP7 2-Entry Kit (model CS-HP7-R110-2W2TFC) is a smart video doorphone system for homes with two entrances. It includes two outdoor door stations with 2K (2048 x 1296) cameras and one 7-inch touch-screen indoor monitor, so you can see and talk to visitors at either door and open the door or gate. The monitor connects to your Wi-Fi on 2.4 GHz or 5 GHz, and the system can be controlled remotely from the EZVIZ App.

Two door stations, one system: The two door stations, for example at the front door and a side door or gate, both connect to the same indoor monitor. You can see live video from both doors and manage each entrance from one monitor and one app, instead of installing two separate intercoms.

2K video with a 162° view: Each door station has a 1/2.7" progressive scan CMOS sensor and a 2.0 mm lens with a 162° diagonal viewing angle. This wide view lets you see a visitor from head to toe, and infrared lighting gives a picture at night.

7-inch indoor touch screen: The 7-inch colour touch screen (1024 x 600) is where you view live video, answer visitors, unlock the door and play back recordings. When a visitor rings, the screen lights up automatically, and you can choose from up to 20 ringtones.

Door and gate unlocking: Each door station has outputs for a gate opener and an electric strike or lock. You can unlock with one of the 5 included RFID badges, from the indoor monitor, or remotely from the EZVIZ App.

Two-way talk and alerts: Built-in microphone and speaker on both the door stations and the monitor allow two-way talk, also from your phone when you are away. Smart human motion detection sends a notification to the EZVIZ App when someone is at the door.

2-wire installation: The door stations connect to the monitor over 2 wires (also compatible with 4-wire systems), which often allows an existing intercom cable to be reused. Recordings can be stored on a microSD card of up to 512 GB in the monitor.

Good to know

The microSD card is not included. EZVIZ CloudPlay cloud storage is only available in certain markets. The electric strike or lock must have a mechanical memory and its power supply must not exceed 12 V / 1.1 A; the gate output is a dry contact rated 12 V / 2 A. Maximum cable length between monitor and door station: 50 m with 2 x 0.75 mm², 100 m with 2 x 1.5 mm², 120 m with twisted pair.

Technical Specifications

📄 Datasheet: Download the official EZVIZ HP7 2-Entry Kit datasheet (PDF)
