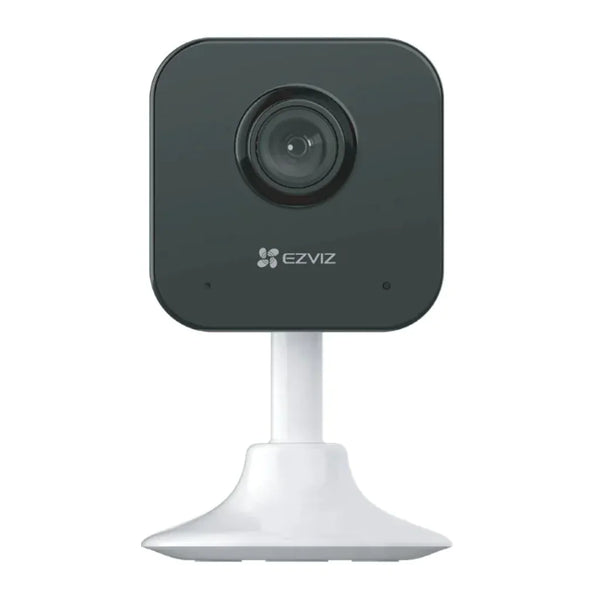

EZVIZ 2mp Wireless Camera H1C

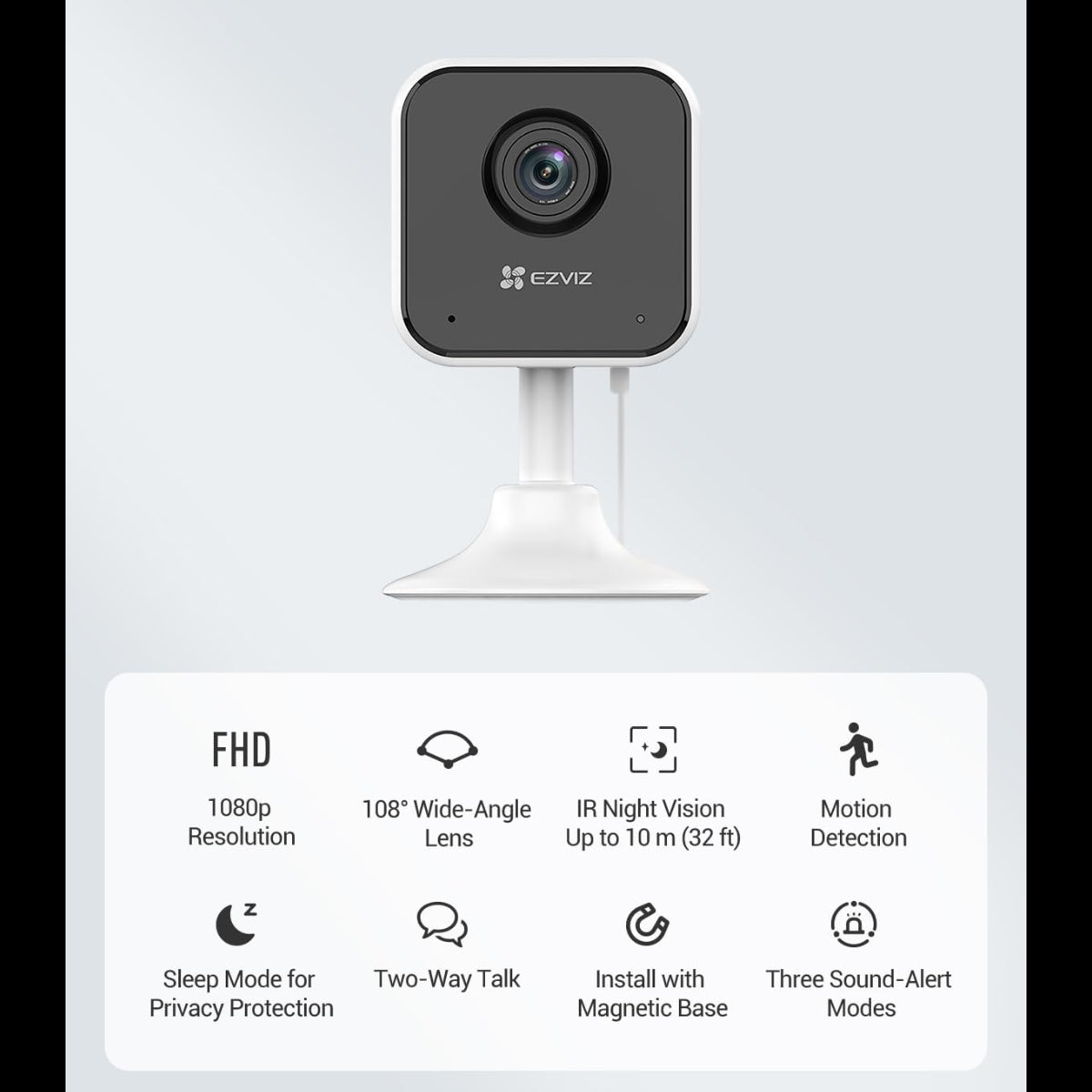

The EZVIZ H1c (model CS-H1C-R101-1G2WR) is a compact 2MP indoor Wi-Fi camera that records Full HD 1080p (1920 × 1080) video. Its 2.8 mm lens covers 108° diagonally, it sees up to 10 m in the dark with infrared night vision, and it connects to your phone through the EZVIZ app over 2.4 GHz Wi-Fi.

Wide 1080p view: The 2.8 mm lens gives a 108° diagonal (91° horizontal) field of view, so one camera can watch over a large indoor space in Full HD.

Infrared night vision up to 10 m: When the room gets dark, the camera switches to infrared mode automatically and keeps recording up to 10 m (32 ft) away, so you can still see what happens at night.

Instant motion alerts: When the camera detects motion it sends an alert to your phone right away. You can open the alert details and replay the recorded clip from the EZVIZ app.

Easy installation: Place the camera on any flat surface, or attach it to a metallic wall with its magnetic base. A metal plate is included in the box.

Three audio alert modes: Choose silent, short beep or siren as the sound the camera plays when it detects something, so you can hear detections from afar or keep the camera quiet.

Two-way talk: The built-in microphone and speaker let you hear and speak to people at home from wherever you are through the EZVIZ app.

Voice assistant support: The camera works with Amazon Alexa and Google Assistant, so you can bring up the video feed on a compatible smart display by voice.

Two ways to store video: Save recordings on a microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay cloud storage. Sleep mode stops all camera activity when you want privacy.

Good to know
The microSD card is sold separately, and EZVIZ CloudPlay needs a subscription. Wi-Fi works on 2.4 GHz only. Google Assistant is not available in certain languages and countries. The H1c is an indoor camera with a fixed lens (no pan or tilt).
What's in the Box
H1c camera, power adapter, 2 m power cable, 2 foam stickers, metal plate, regulatory information, quick start guide.
Technical Specifications
| Model | CS-H1C-R101-1G2WR |
| Image Sensor | 1/3" progressive scan CMOS |
| Lens | 2.8 mm, M12 mount |
| Field of View | 108° diagonal, 91° horizontal, 50° vertical |
| Minimum Illumination | 0.5 Lux @ (F2.2, AGC ON), 0.1 Lux with IR |
| Day & Night | IR-cut filter with auto switching |
| Night Vision | Up to 10 m (32 ft) |
| Max Resolution | 1920 × 1080 |
| Video Compression | H.264 |
| Audio | Two-way talk |
| Wi-Fi | IEEE 802.11 b/g/n, 2.4 GHz |
| Storage | microSD up to 512 GB; EZVIZ CloudPlay (subscription) |
| Power | DC 5V / 1A |
| Power Consumption | Max. 3 W |
| Operating Conditions | -10°C to 45°C, humidity 95% or less (non-condensing) |
| Dimensions | 53.89 × 53.89 × 90.3 mm |
| Net Weight | 87 g |
| Certifications | CE / RoHS / WEEE / REACH |
