Ezviz 4mp Support 4G+WiFi Sim Dual Lens Solar Camera | CB90x-SP
Ezviz 4mp Support 4G+WiFi Sim Dual Lens Solar Camera | CB90x-SP
Couldn't load pickup availability
Ezviz 4mp Support 4G+WiFi Sim Dual Lens Solar Camera /CB90x-SP

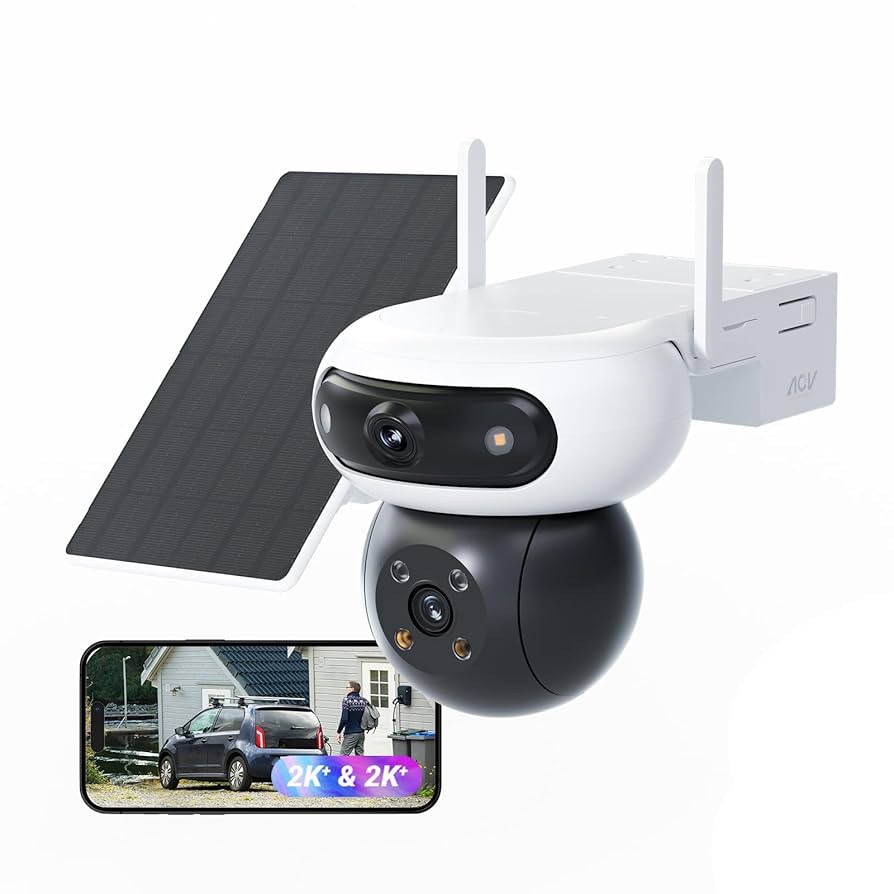

📦 EZVIZ CB90x Dual 4G Kit — Dual-Lens 4G Camera + 8 W Solar Panel
A rugged, high-performance outdoor camera kit designed to provide always-on surveillance even in remote locations—features dual 2K+ lenses, smart detection, and solar-powered 4G connectivity.
🔍 Key Features
Dual 4MP lenses (top + bottom) offering both wide-angle and close-up coverage
Ultra-wide angles: Top Lens: ~122° diagonal; Bottom Lens: ~65° diagonal
Dual rotations: wide lens pans/tilts for overview, close-up lens moves independently for details
Night vision: color mode capable even at very low light (0.01 Lux), plus IR mode
Smart AI detection for humans and vehicles, auto-tracking when motion is detected
Dual connectivity: WiFi (2.4 GHz) + 4G LTE (various bands) — automatically switches when WiFi signal weak
Always-On Video Mode (“AOV 2.0”): time-lapse during idle periods + normal video when motion occurs
Large 10,400 mAh battery + included 8W solar panel for extended usage without frequent charging
Supports micro-SD storage up to 512 GB; also compatible with EZVIZ cloud storage plans
🔧 Technical Specifications
| Spec | Detail |
|---|---|
| Image Sensors | 1/2.8″ progressive scan CMOS, 4 MP each |
| Lenses | Top: 2.8 mm @ F1.2 (Diag ~122°, H ~105°, V ~58°) • Bottom: 6 mm @ F1.2 (Diag ~65°, H ~56°, V ~30°) |
| Pan/Tilt Ranges | Top: Pan 220°, Tilt 10° • Bottom: Pan 324°, Tilt 90° |
| Minimum Illumination | 0.01 Lux (F1.2, gain enabled) • 0 Lux with IR mode |
| Night Vision Distance | Up to 35 meters (when both lenses align direction) |
| Resolution & Frame Rate | Max 2K+ (2560×1440) @ up to 15 fps; adapts based on network conditions |
| Video Compression | H.265 / H.264 |
| WiFi | 2.4 GHz b/g/n/ax; AP mode pairing |
| 4G LTE | Supports multiple frequency bands (FDD & TDD) globally |
| Battery | 10,400 mAh |
| Solar Panel | 8W monocrystalline, Type-C connection |
| Storage | micro-SD up to 512 GB • Cloud storage optional |
| IP Rating | IP65 — weatherproof for outdoor use |
| Operating Conditions | -20 °C to 50 °C, humidity up to 95% non-condensing |
| Power Consumption | Max about 10 W |
| Weight & Size | Camera: approx. 135 × 145 × 229.5 mm • Solar panel: light ~428g |
📦 What’s in the Box
CB90x Dual 4G dual-lens camera unit
8W Solar Panel + 3m cable
Adjustable mounting bracket + screw kit
Drilling template & power cable
Quick Start Guide & regulatory documentation
🎯 Common Uses
Remote outdoor security (farm, cabin, gatehouse)
Locations without reliable power / WiFi
Applications needing both broad view & zoomed detail (garage + driveway, property perimeter)
Night surveillance with color vision
