EZVIZ CB5 4K Solar Battery Camera
EZVIZ CB5 4K Solar Battery Camera
Couldn't load pickup availability
EZVIZ CB5 4K Solar Battery Camera

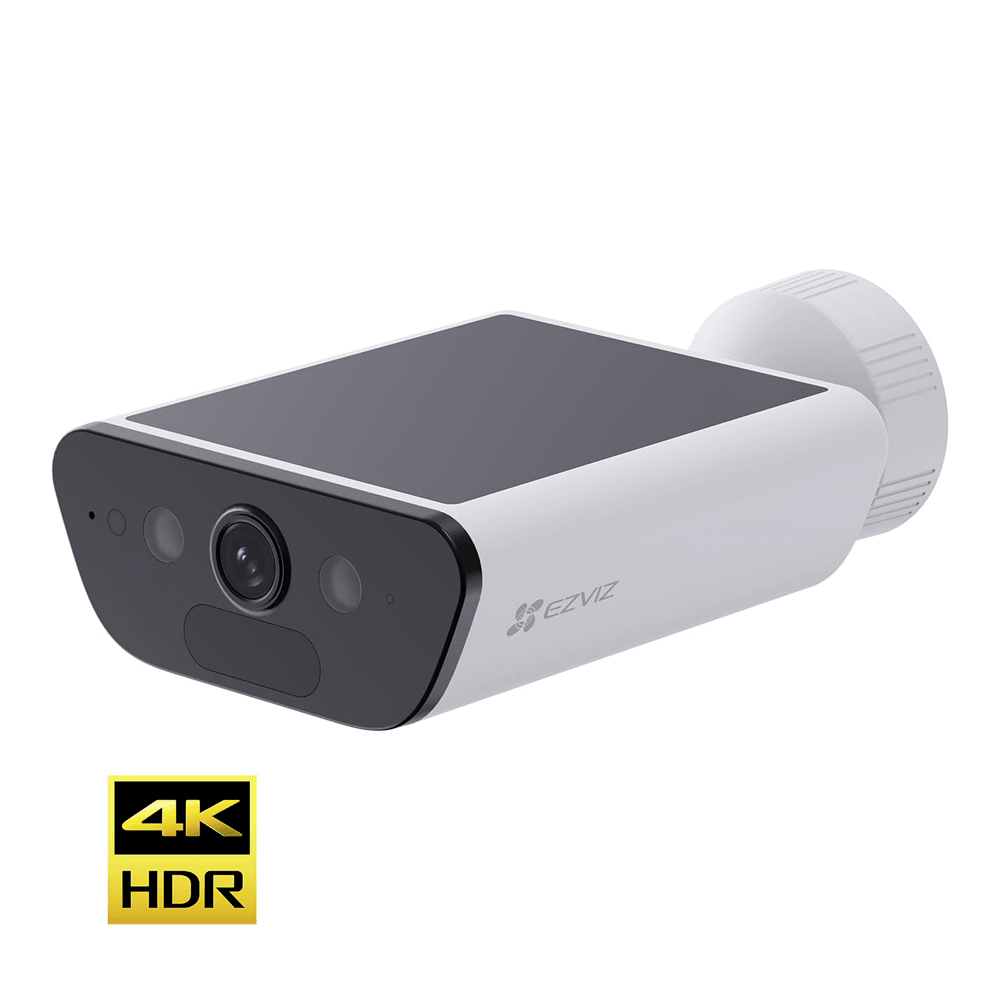

The EZVIZ CB5 4K (model CS-CB5-R100-2F8WFL) is an outdoor Wi-Fi battery camera with an integrated solar panel, recording in 4K (3840 × 2160) with an 8 MP sensor. It runs on a built-in 10,400 mAh battery, is IP65 rated, and needs no power cable, hub or separate solar panel to work.
Integrated solar panel and large battery: The solar panel built into the camera charges the 10,400 mAh battery from sunlight. EZVIZ states that about two hours of direct sunlight a day keep it running, and that the battery alone lasts up to 180 days without solar charging in its lab test (about 5 minutes of activity per day). Real results depend on sunlight and how often the camera records.
4K Ultra HD video: The 8 MP sensor records in 3840 × 2160, so small details such as faces and number plates are clearer when you zoom in on a recording. The 2.8 mm lens gives a wide 113° horizontal view.
Always-On Video (AOV) mode: In AOV mode the camera captures images at set intervals to build a continuous time-lapse of the day, and switches to normal video when it detects human activity. This needs a microSD card in the camera.
AI human and vehicle detection: The camera tells people and vehicles apart from other movement, so you receive fewer unwanted alerts. EZVIZ states these detection features work without a subscription.
Color night vision: Built-in spotlights give full-color images at night, with color and infrared night vision both reaching up to 15 m. A smart mode can switch between the two automatically.
Wi-Fi 6 connection: The camera supports 802.11ax (Wi-Fi 6) on 2.4 GHz for a more stable connection when mounted outside the house. It also offers two-way talk through the EZVIZ app.
Good to know
The camera uses 2.4 GHz Wi-Fi only and needs at least 8 Mbps of network bandwidth. The microSD card (up to 512 GB) and the DC 5V/2A power adapter are sold separately. An extra add-on solar panel can be connected only if it is an EZVIZ solar panel with a Type-C cable (not included). Cloud storage is only available in some markets.
Technical Specifications
| Model | CS-CB5-R100-2F8WFL |
| Image Sensor | 1/2.7" 8-Megapixel Progressive Scan CMOS |
| Lens | 2.8 mm @ F1.6 |
| Field of View | 135° diagonal, 113° horizontal, 60° vertical |
| Minimum Illumination | 0.01 Lux @ F1.6 (AGC ON), 0 Lux with IR |
| Night Vision | IR up to 15 m, color night vision up to 15 m |
| Max. Resolution | 3840 × 2160 |
| Frame Rate | 15 fps |
| Video Compression | H.265 / H.264 |
| Max. Bitrate | 4 Mbps |
| Detection | AI human shape and vehicle detection |
| Two-way Talk | Supported |
| Wi-Fi | IEEE 802.11b/g/n/ax, 2.4 GHz; WPA-PSK/WPA2-PSK, WPA3-Personal |
| Bluetooth | Supported |
| Minimum Network Requirement | 8 Mbps |
| Local Storage | microSD card up to 512 GB |
| Cloud Storage | EZVIZ cloud storage |
| Battery | 10,400 mAh, integrated solar panel |
| Power Supply | DC 5V / 2A (adapter purchased separately) |
| Power Consumption | Max. 10 W |
| IP Grade | IP65 |
| Operating Conditions | -20 °C to 50 °C, humidity 95% or less (non-condensing) |
| Dimensions | 166 × 103 × 54 mm |
| Net Weight | 466 g |
| Certifications | CE / REACH / WEEE / RoHS |
| In the Box | Camera, power cable, screw base, drill template, screw kit, quick start guide, regulatory information |
📄 Datasheet: Download the official EZVIZ CB5 4K datasheet (PDF)
