EZVIZ HP5 Video Wi-Fi Door intercom

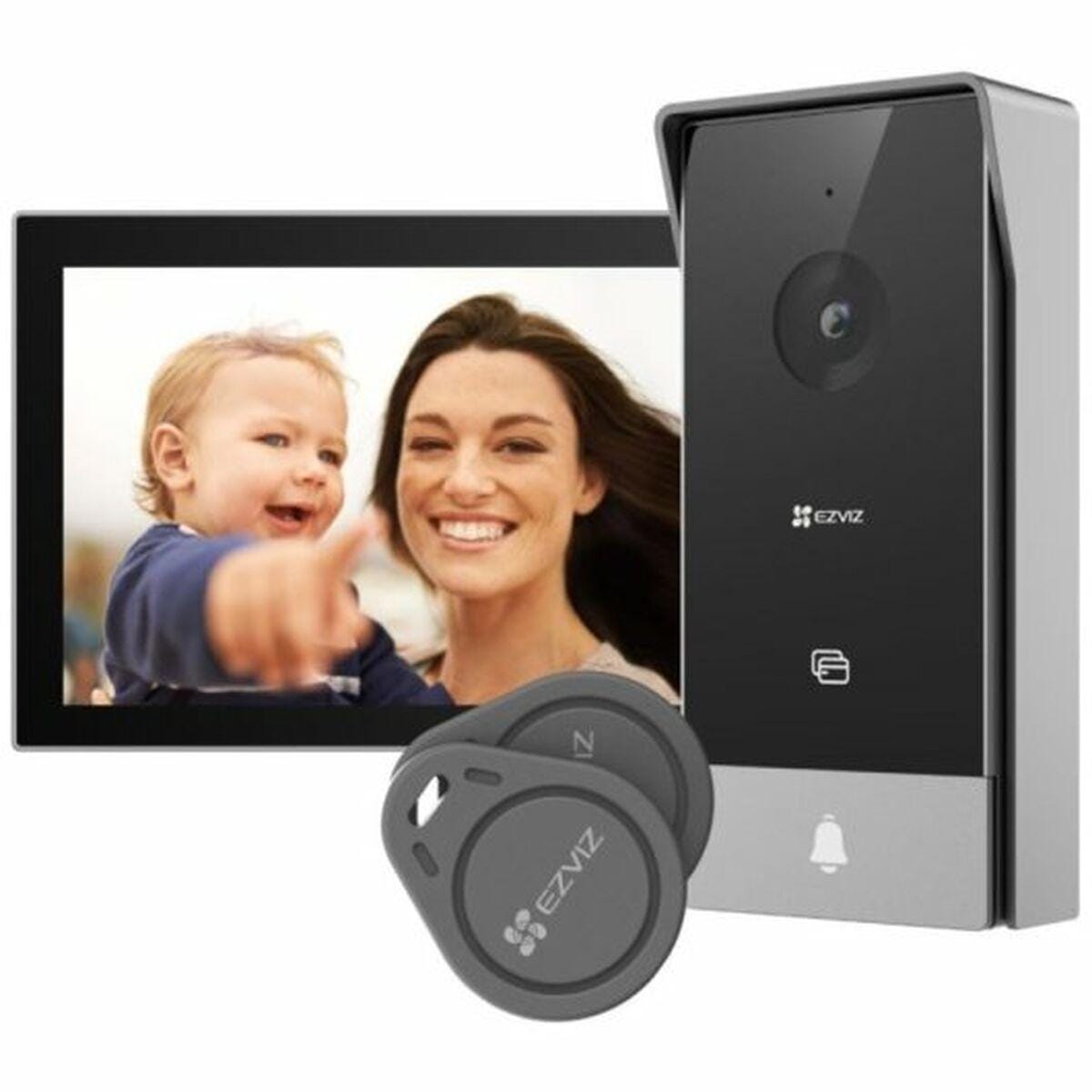

The EZVIZ HP5 (CS-HP5-R100-1W2TFC) is a smart video door intercom kit made of an outdoor 1080p doorbell panel and an indoor 7-inch color touch screen. The two units connect over 2 wires, and the indoor monitor joins your home Wi-Fi on 2.4 GHz or 5 GHz so you can answer visitors and open the door from the EZVIZ App.

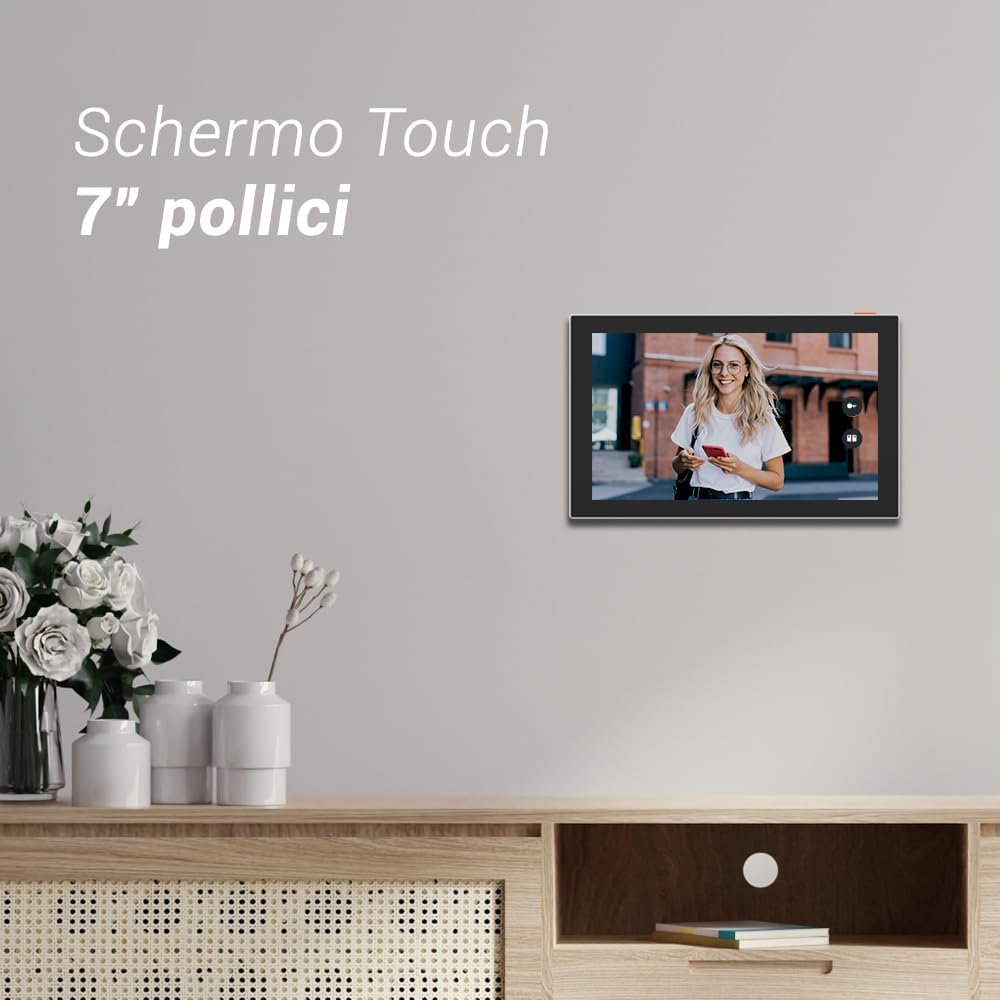

7-inch touch monitor: The indoor 1024 × 600 touch screen is where you see and talk to visitors, open the door and manage settings. When someone rings, the screen lights up automatically to show who is outside.

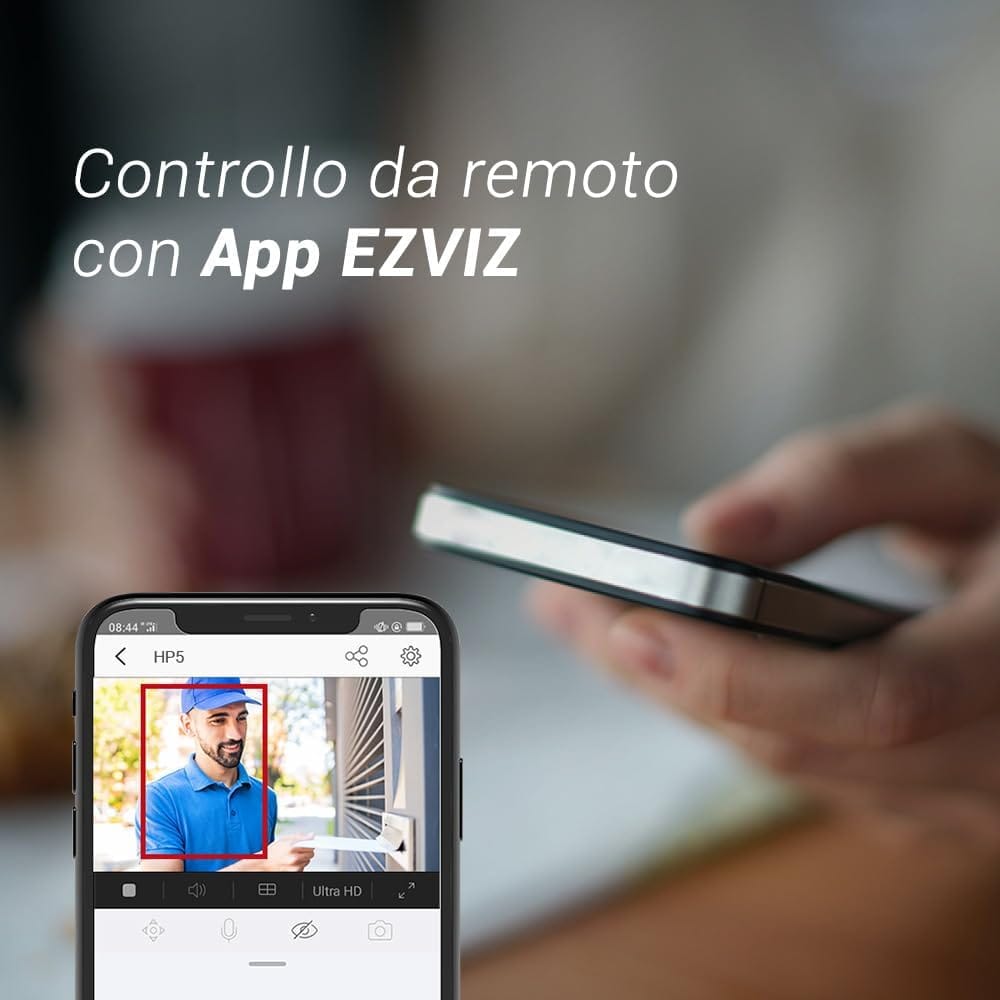

Three ways to open the door: Unlock with the RFID tags (2 included), from the indoor monitor, or remotely from the EZVIZ App on your phone. This lets you let in a guest or delivery even when you are not at home.
Controls both a door and a gate: The outdoor panel has separate terminals for an electric strike or lock and for a gate opener (dry contact), so one system can manage the front door and the main gate.
1080p camera with 134° view and 6 m night vision: The outdoor panel's 2.0 mm lens gives a wide 134° diagonal view of the entrance, and two 850 nm infrared lights show visitors in the dark up to 6 m.

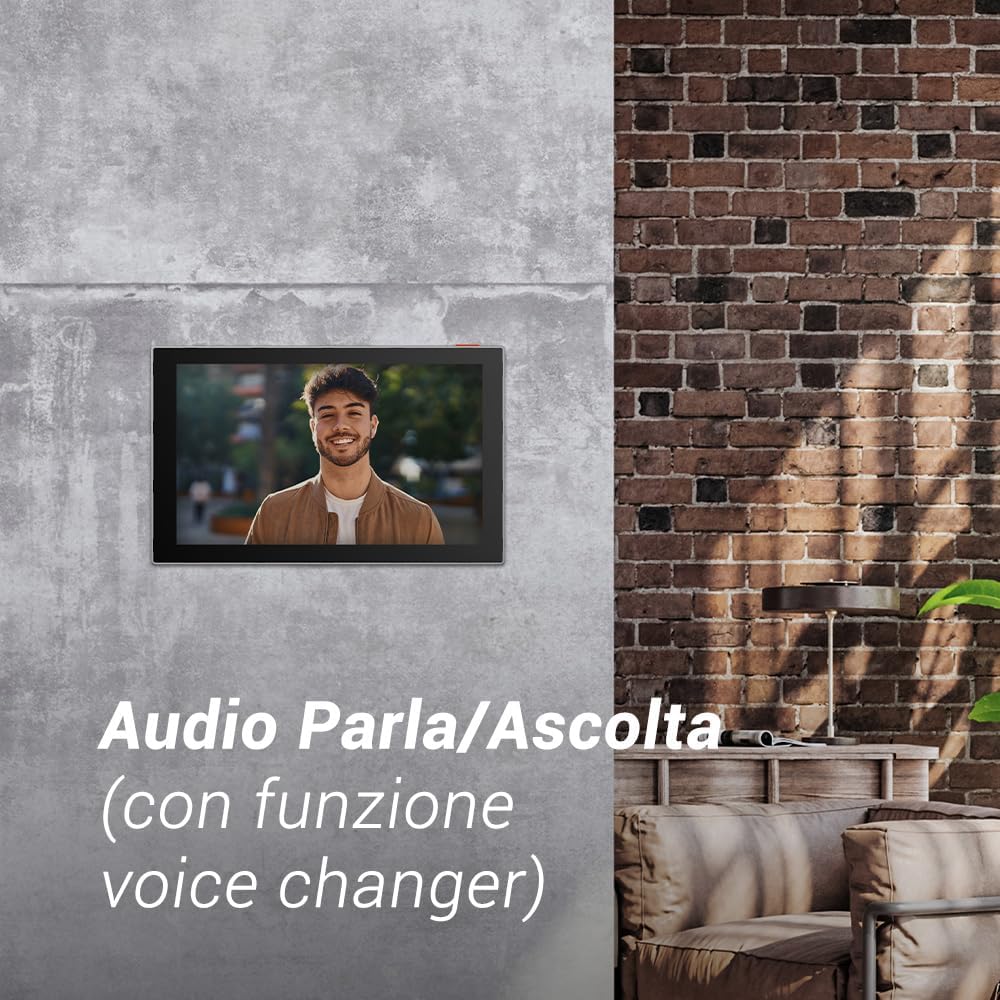

Two-way talk with voice changer: Talk to visitors from the monitor or your phone. The voice changer can disguise your voice when answering strangers.

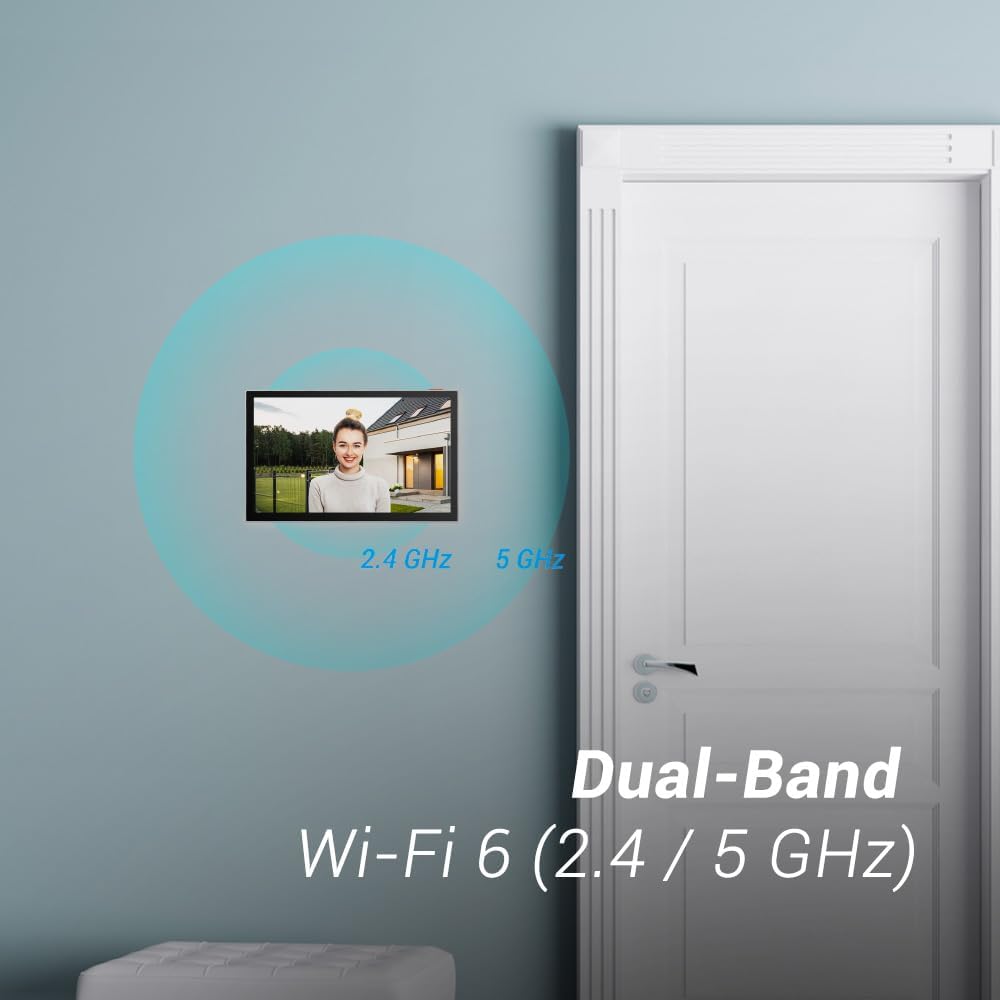

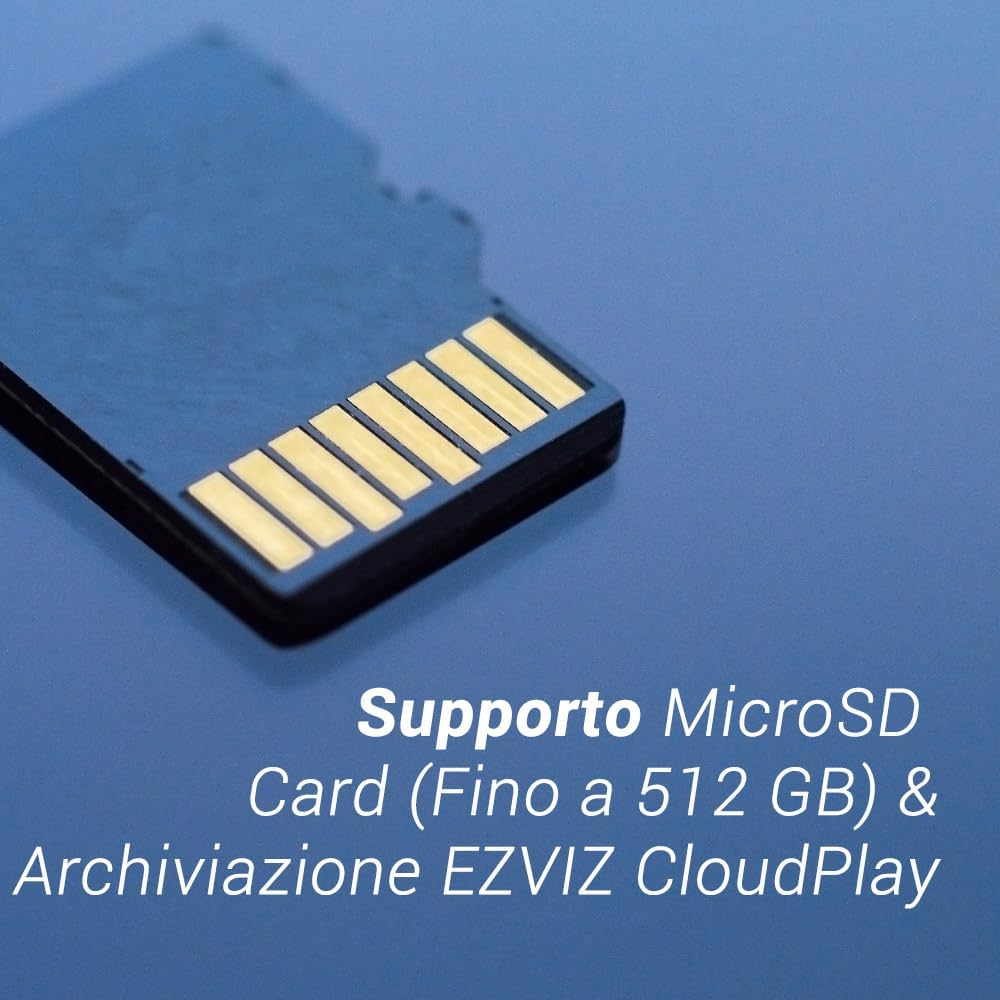

Dual-band Wi-Fi and local storage: The monitor connects on 2.4 GHz or 5 GHz Wi-Fi for a stable link to the app. Clips can be saved on a microSD card of up to 512 GB or on EZVIZ cloud storage.
2-wire installation: The outdoor panel and the monitor use a 2-wire connection (also works with 4-wire systems), with cable runs up to 50 m on 2 × 0.75 mm², 100 m on 2 × 1.5 mm² or 120 m on twisted pair. This makes it suitable for replacing an older wired intercom.
Good to know

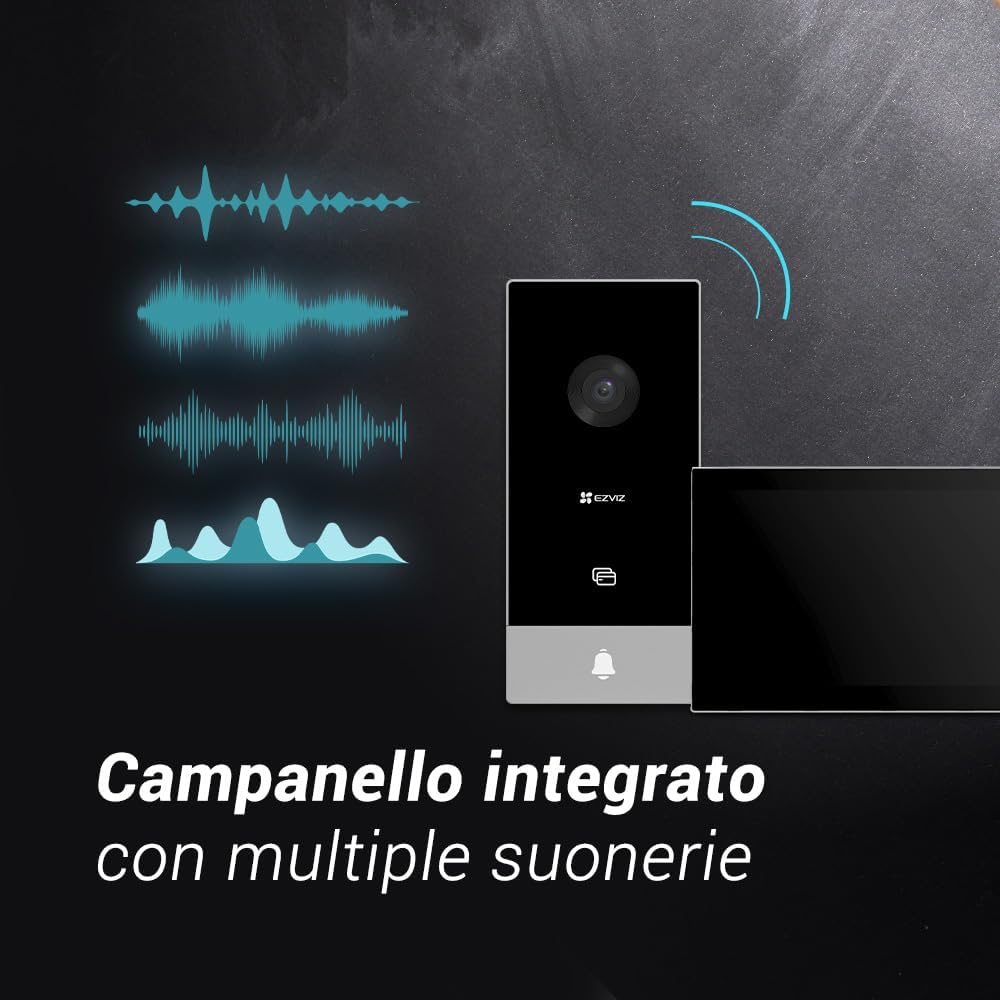

The microSD card is not included. The electric strike or lock and the gate motor are not included; the lock supply must not exceed 12 V / 1.1 A and the gate contact is rated 12 V / 2 A. The outdoor doorbell has one fixed ringtone; the indoor monitor offers up to 20 ringtones. The monitor is powered by the included 24 V DC adapter.
Technical Specifications
| Model | CS-HP5-R100-1W2TFC |
| Outdoor Camera | 1/2.7" CMOS, 1920 × 1080 (1080p), 15 fps |
| Lens | 2.0 mm @ F1.6, 134° diagonal |
| Night Vision | 2 × 850 nm IR, up to 6 m |
| Door Open Methods | RFID tag (2 included), indoor monitor, EZVIZ App |
| Wiring | 2-wire (4-wire compatible); max. 50 m (2 × 0.75 mm²), 100 m (2 × 1.5 mm²), 120 m (twisted pair) |
| Indoor Monitor | 7" touch screen, 1024 × 600 |
| Wi-Fi | 802.11b/g/n/ac, 2.4 GHz and 5 GHz |
| Storage | microSD up to 512 GB; EZVIZ cloud storage |
| Power Supply | DC 24 V / 1.5 A adapter (100–240 V AC) |
| Power Consumption | 8 W, max. 24 W |
| Operating Temperature | Outdoor panel -30 °C to 60 °C; monitor -10 °C to 45 °C |
| Outdoor Panel Size | 153 × 70.4 × 22.5 mm |
| Monitor Size | 180 × 111 × 15 mm |
📄 Datasheet: Download the official EZVIZ HP5 datasheet (PDF)
