Smart Video Intercomm Solar Powered with 7" Touch Screen /EZVIZ EP7
The EZVIZ EP7 (model CS-EP7) is a 2K smart video door phone kit: a battery-powered outdoor door station with keypad and RFID reader, a 7-inch indoor touch screen, and an included solar panel. The door station talks to the indoor screen over Wi-Fi HaLow, so no cable is needed between the two, and it can open both a door and a gate.

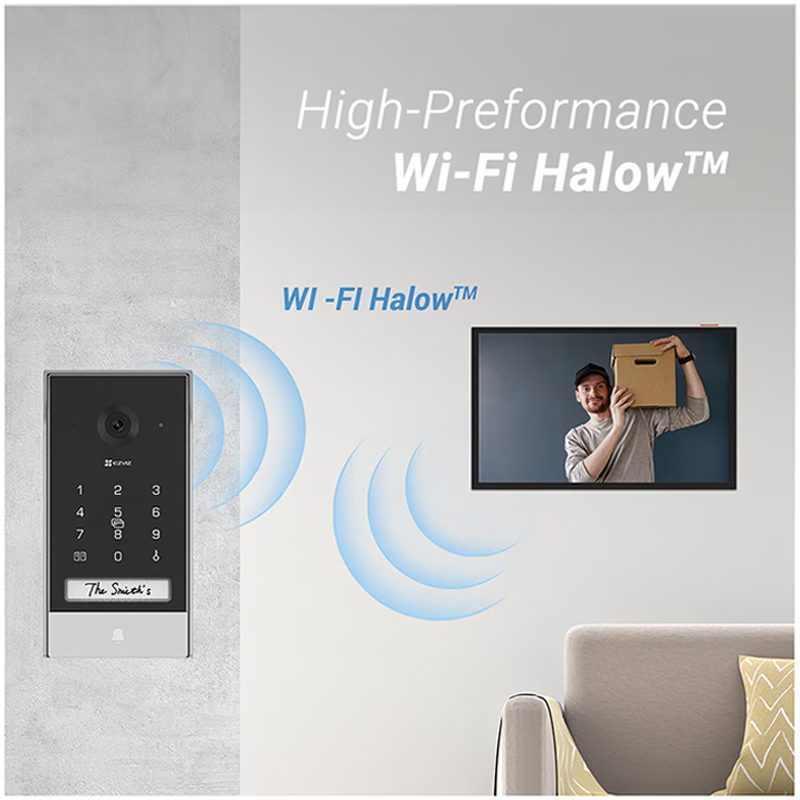

No wiring between outdoor and indoor units: The door station runs on a detachable rechargeable battery and supports solar charging with the included panel. It links to the indoor screen through Wi-Fi HaLow, which EZVIZ rates at up to 350 m in open areas and up to 80 m through two walls, so it suits large houses and villas.
Door and gate control: The door station has two wiring ports for an electric strike or lock and two for an automatic gate (dry contact), so one kit can control the front door and the car gate. Wiring is still needed from the door station to the lock and gate.
Many ways to open: Residents can open with an RFID card (3 included) or a 6-10 digit passcode on the keypad. You can also unlock from the indoor screen or remotely from the EZVIZ app, and create temporary codes for visitors such as a babysitter.
7-inch indoor touch screen: The 1024 × 600 touch screen is the control panel of the kit. It lights up when the doorbell is pressed, lets you see and talk to the visitor, open the door, and review recordings saved on a microSD card of up to 512 GB.
2K wide-angle camera: The door station camera records 2048 × 1296 with a 162° diagonal view and has infrared night vision for low light.
Respond from anywhere: With the EZVIZ app you can answer visitors, talk to them with an optional voice changer, and unlock remotely when you are not home. Recordings can also be saved to EZVIZ CloudPlay (subscription, some markets).
Thoughtful details: Backlit name cards (3 included) show visitors they have the right door, and the indoor screen offers 20 ringtones. The door station and solar panel are IP65 weatherproof.
Good to know
The indoor screen must be installed indoors and plugged into power (12 V 1 A adapter included). The outdoor door station plays one default ringtone; ringtones are chosen on the indoor screen. Solar charging depends on sunlight and how often the door is opened, so the panel is an extra power source; if it cannot keep up, remove the battery and charge it indoors. The electric strike or lock must have mechanical memory and must not exceed 12 V / 0.8 A; the gate contact handles up to 12 V / 2 A. Wi-Fi HaLow frequencies depend on the regional version. The indoor screen connects to your home Wi-Fi on 2.4 GHz or 5 GHz.
Technical Specifications
| Model | CS-EP7 |
| Outdoor door station | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Max. Resolution | 2K (2048 × 1296) |
| Lens | 2.0 mm @ F2.2, 162° diagonal |
| Night Vision | IR-cut filter with auto-switching, 2 × 850 nm infrared lights |
| Video Compression | H.265 / H.264, max. 15 fps |
| Wireless Link to Monitor | Wi-Fi HaLow (IEEE 802.11ah); up to 350 m open area, up to 80 m through two walls |
| Unlock Methods | RFID card (3 included), passcode (5 sets of 6-10 digits), EZVIZ app, indoor screen |
| Door / Gate Outputs | Electric strike/lock up to 12 V / 0.8 A; gate dry contact up to 12 V / 2 A |
| Battery | Detachable rechargeable lithium, 2600 mAh 7.3 V (5200 mAh 3.7 V); solar charging |
| Protection | IP65, with shield cover |
| Operating Conditions | -20°C to 60°C |
| Dimensions | 175 × 86 × 34 mm |
| Indoor monitor | |
| Display | 7" touch screen, 1024 × 600 |
| Wi-Fi | IEEE 802.11b/g/n/ac, 2.4 GHz and 5 GHz |
| Storage | microSD up to 512 GB; EZVIZ CloudPlay |
| Ringtones | Up to 20 |
| Power | 12-24 V DC 1 A (12 V 1 A adapter included); 8 W, max. 24 W |
| Dimensions | 180 × 112 × 15 mm |
| Solar panel | |
| Max. Power | 1.2 W (8.1 V max, 240 mA) |
| Protection | IP65 |
| In the Box | Monitor with wall bracket and power adapter, door station with weatherproof shield, battery with USB cable, solar panel, 3 badges, 3 name cards, drill templates, screwdriver, screw kits, wires and connectors, power jack cable, pin, regulatory information, quick start guide |
📄 Datasheet: Download the official EZVIZ EP7 datasheet (PDF)
