EZVIZ Smart Lock / DL05 For Safety Door
EZVIZ Smart Lock / DL05 For Safety Door
Couldn't load pickup availability
EZVIZ Smart Lock / DL05 For Safety Door

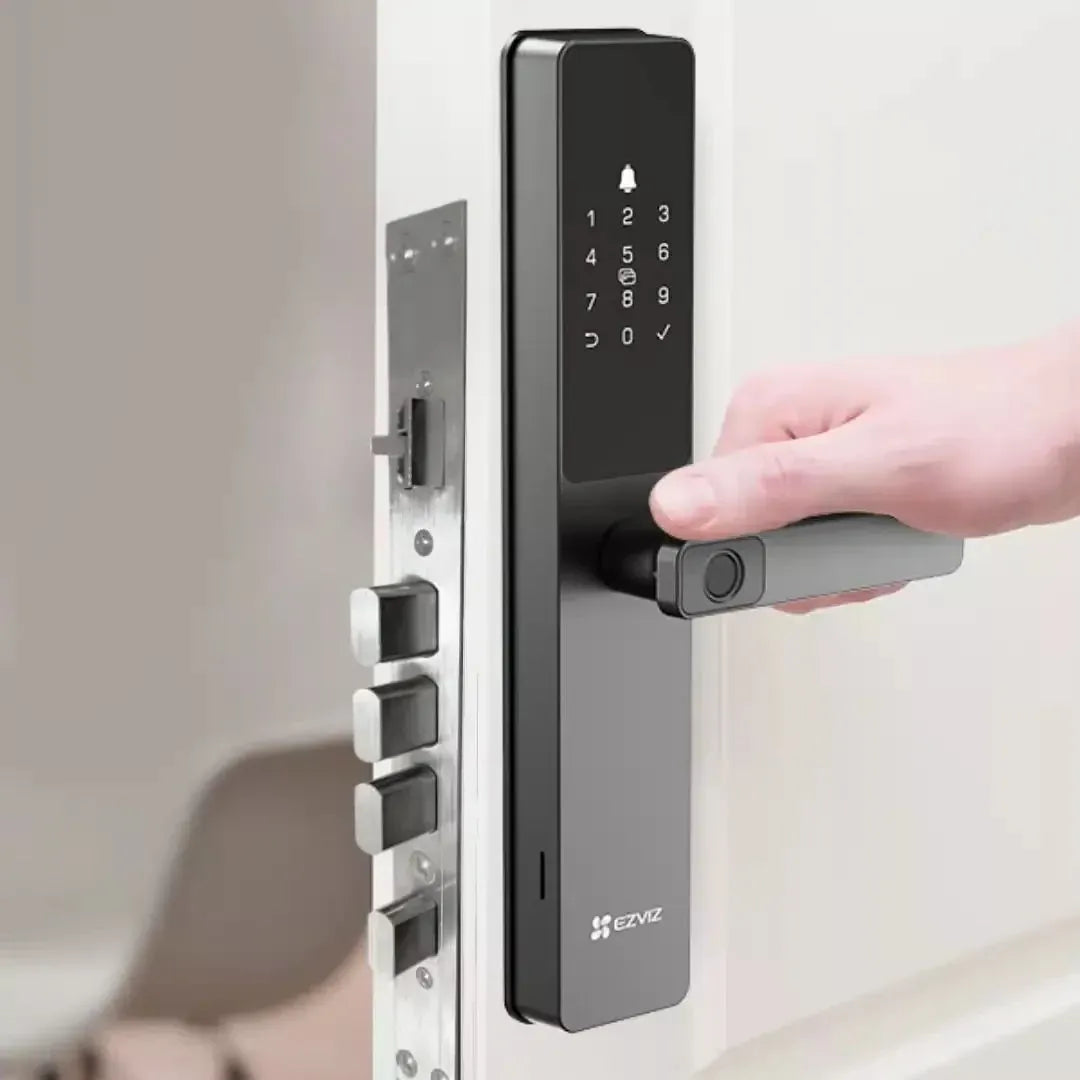

The EZVIZ DL05 is a smart fingerprint door lock with an aluminium alloy panel that opens by fingerprint, passcode, proximity card, mechanical key, Bluetooth key in the EZVIZ App, temporary codes or remote unlocking. It connects over 2.4 GHz Wi-Fi and Bluetooth, stores up to 50 users, runs on 8 AA batteries and comes with a 6068 lock body.
Available options: Without Installation Service, or With Installation Service for a compatible door.
Seven ways to unlock: Family members can use a fingerprint, passcode or proximity card, and a mechanical key is included for emergencies. From the EZVIZ App you can also use a Bluetooth key, create temporary access codes for guests, or unlock the door remotely.
Up to 50 users: The lock stores up to 50 fingerprints, 50 passcodes and 50 cards, with user management in the app. This makes it easy to give access to every family member and remove it when needed.
Real-time alerts: The lock sends real-time notifications to your phone through the EZVIZ App, so you know when the door is used or when something is wrong.
Security features: Anti-peeping passcodes let you add extra digits before or after your real code (up to 20 digits) so people watching cannot learn it. After 5 wrong attempts within 5 minutes the lock blocks entry for 3 minutes, and an anti-tamper alarm warns against forced removal. A child safety lock and a privacy mode are also supported.
Weatherproof front panel: The outside panel is made of aluminium alloy and rated IP65, and the lock works from -25°C to 70°C.
Battery power with emergency charging: The lock runs on 8 × 1.5V AA alkaline batteries (included) and gives a low-battery warning. If the batteries run out, a Type-C port allows emergency charging from outside.
Good to know
Only the exterior lock panel is weather-resistant (IP65); the inside panel is not. The lock uses 2.4 GHz Wi-Fi only. Installation depends on the door: the With Installation option applies to a compatible door.
Technical Specifications
| Model | DL05 |
| Lock Body | 6068 |
| Unlocking Methods | Fingerprint, passcode, proximity card, mechanical key, Bluetooth key via EZVIZ App, temporary codes, remote unlock |
| User Capacity | 50 |
| Fingerprint / Passcode / Card Capacity | 50 / 50 / 50 |
| Communication | 2.4 GHz Wi-Fi, Bluetooth |
| Anti-Peeping Code | Up to 20 digits |
| Wrong-Attempt Protection | 5 failed attempts in 5 minutes trigger a 3-minute lockout |
| Other Functions | Real-time notification, anti-tamper alarm, remote control, child safety lock, privacy mode, low-battery warning, user management |
| Panel Material | Aluminium alloy |
| Panel Size | 360 × 67 × 27 mm |
| Weatherproof | IP65 (front panel) |
| Power | 8 × 1.5V AA alkaline batteries |
| Emergency Charging | Type-C |
| Working Temperature | -25°C to 70°C |
| Operating Humidity | 10% to 95% |
📄 Datasheet: Download the official EZVIZ DL05 (6068 lock body) datasheet (PDF)
What's in the Box

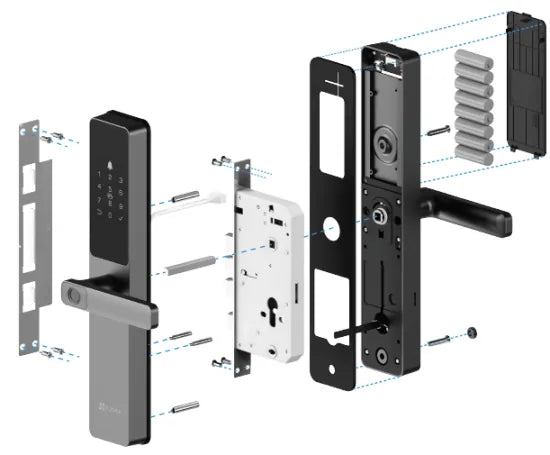

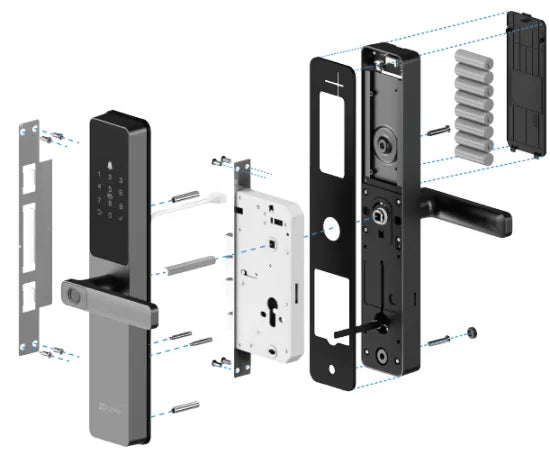

DL05 smart fingerprint lock (front panel, rear panel, hole template), lock body, standard screw bag, lock body screw bag × 2, locating screw bag, reserving screw × 2, AA battery × 8, mechanical key × 2, square rod, proximity card × 2, silicone plug (for rear panel), regulatory information, quick start guide.
