EZVIZ Smart Lock / DL05

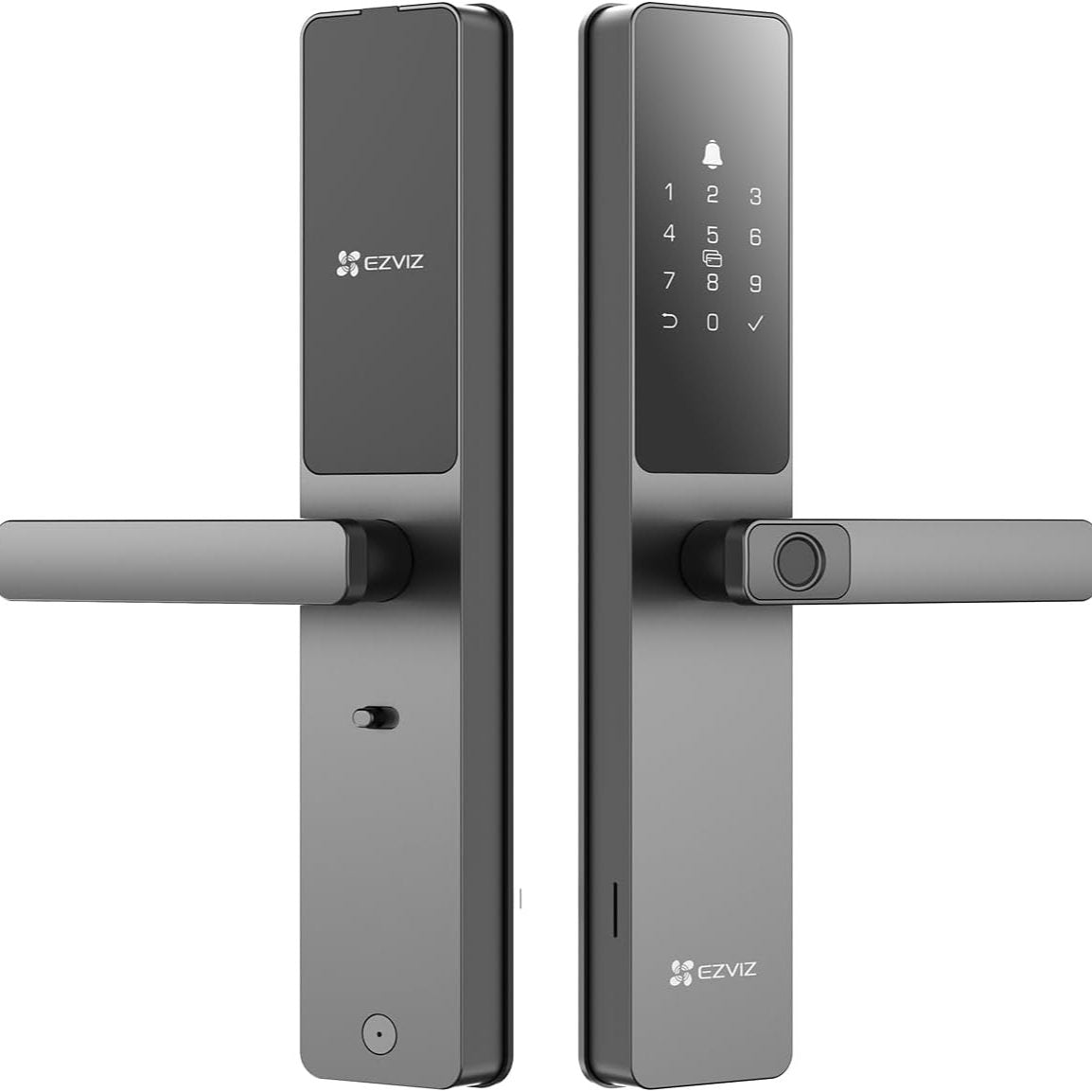

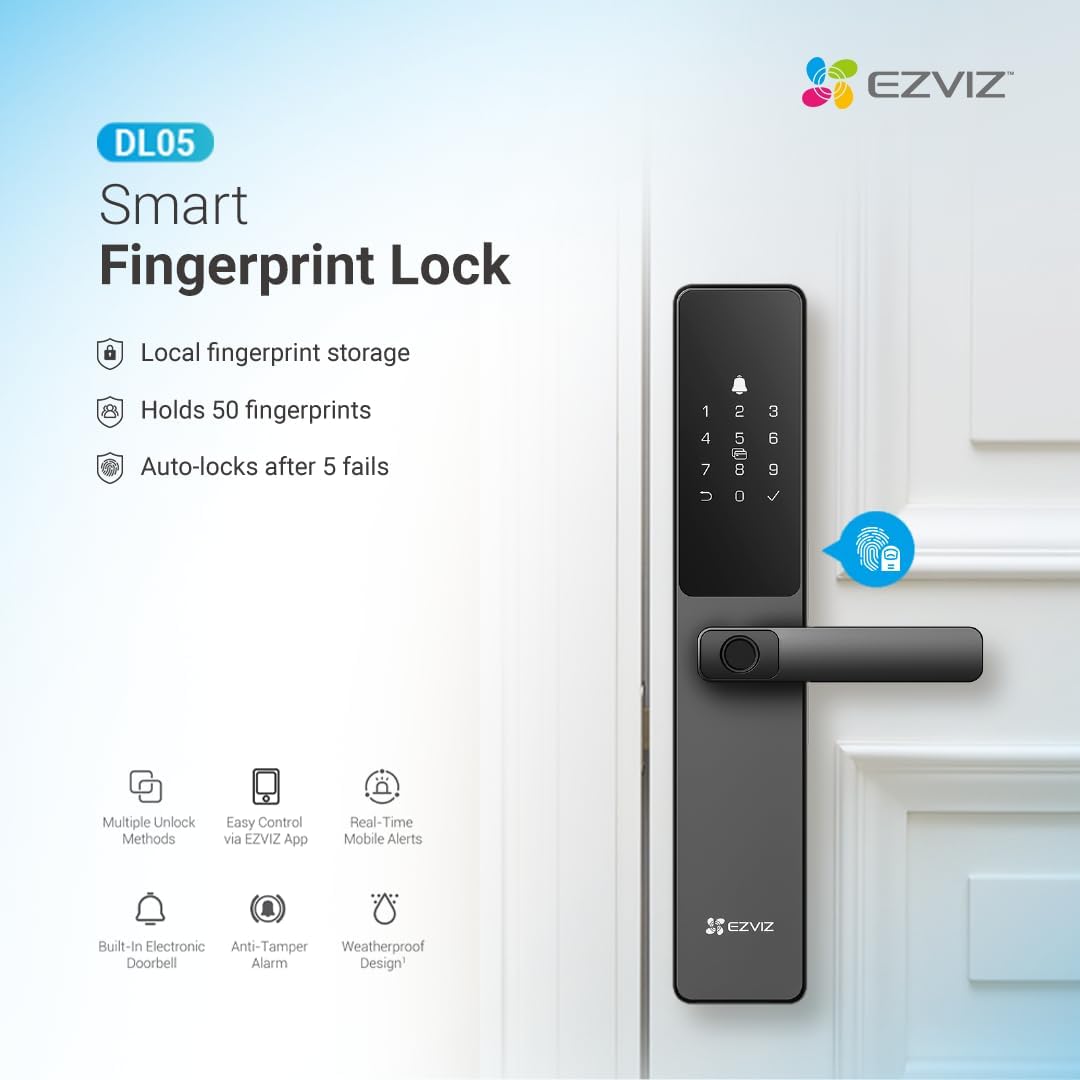

The EZVIZ DL05 is a smart fingerprint door lock with a 6068 mortise lock body and an aluminium alloy handle panel. You can open it with a fingerprint, passcode, proximity card, the EZVIZ app over Bluetooth, remote unlocking, temporary codes or a mechanical key, and it connects over 2.4 GHz Wi-Fi and Bluetooth to send alerts to your phone.

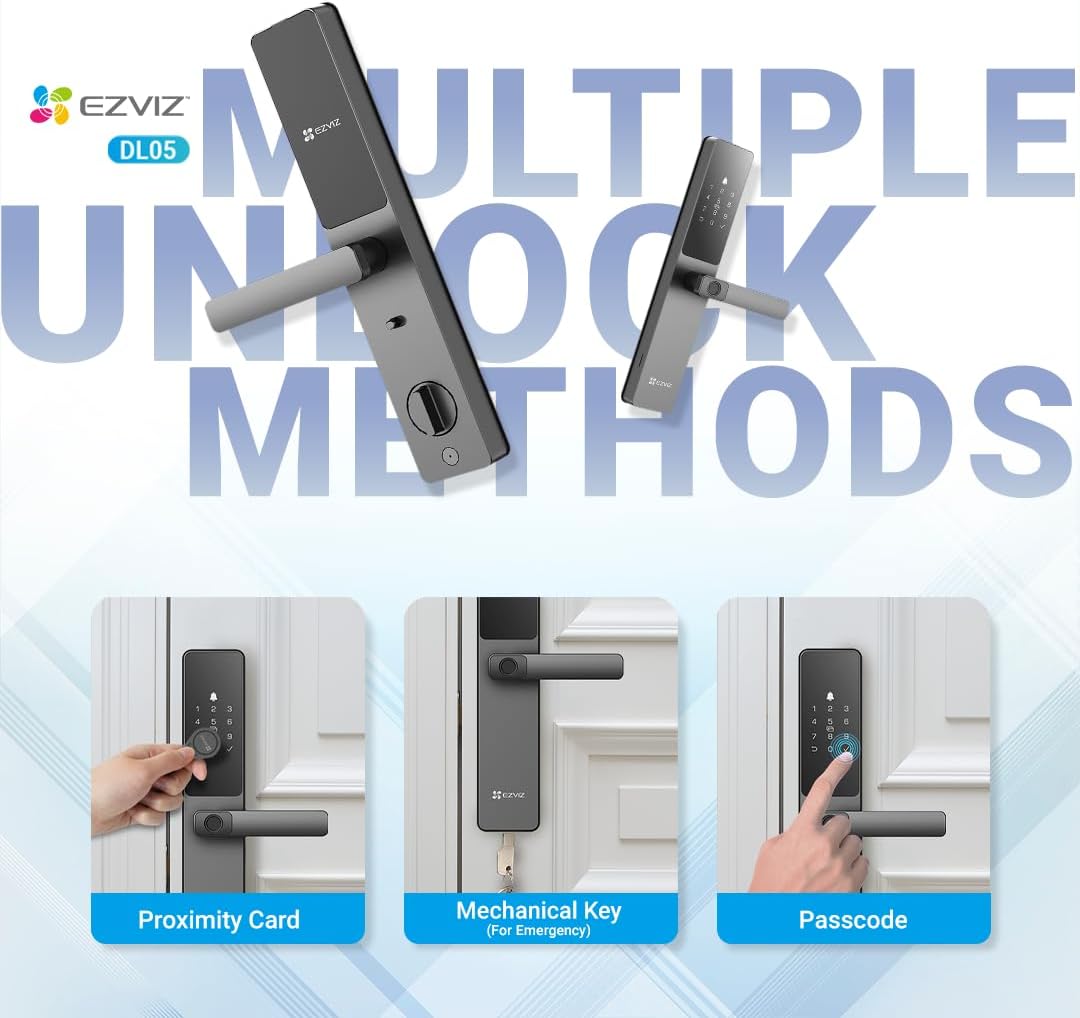

Several ways to unlock: The lock stores up to 50 users, with up to 50 fingerprints, 50 passcodes and 50 proximity cards. Family members can use a fingerprint, guests can get a temporary code, and you can also open the door remotely from the EZVIZ app. A mechanical key can be used for emergencies.
Real-time alerts: The EZVIZ app sends you a notification when the door is opened or the battery is low, and warns you of suspected forced entry or removal of the lock. You know what is happening at your door even when you are away.
Anti-peeping passcode: The lock supports anti-peeping codes of up to 20 digits, which helps keep your real passcode hidden from anyone watching you type it.
Security functions: The lock has an anti-tamper alarm and wrong-attempt protection: after five wrong entries within five minutes it blocks unlocking for three minutes. A child safety lock prevents the door from being opened accidentally from inside, and privacy mode lets only the administrator unlock from outside.
Weatherproof front panel: The exterior panel is IP65 rated, so the outside part of the lock is protected against dust and water jets.

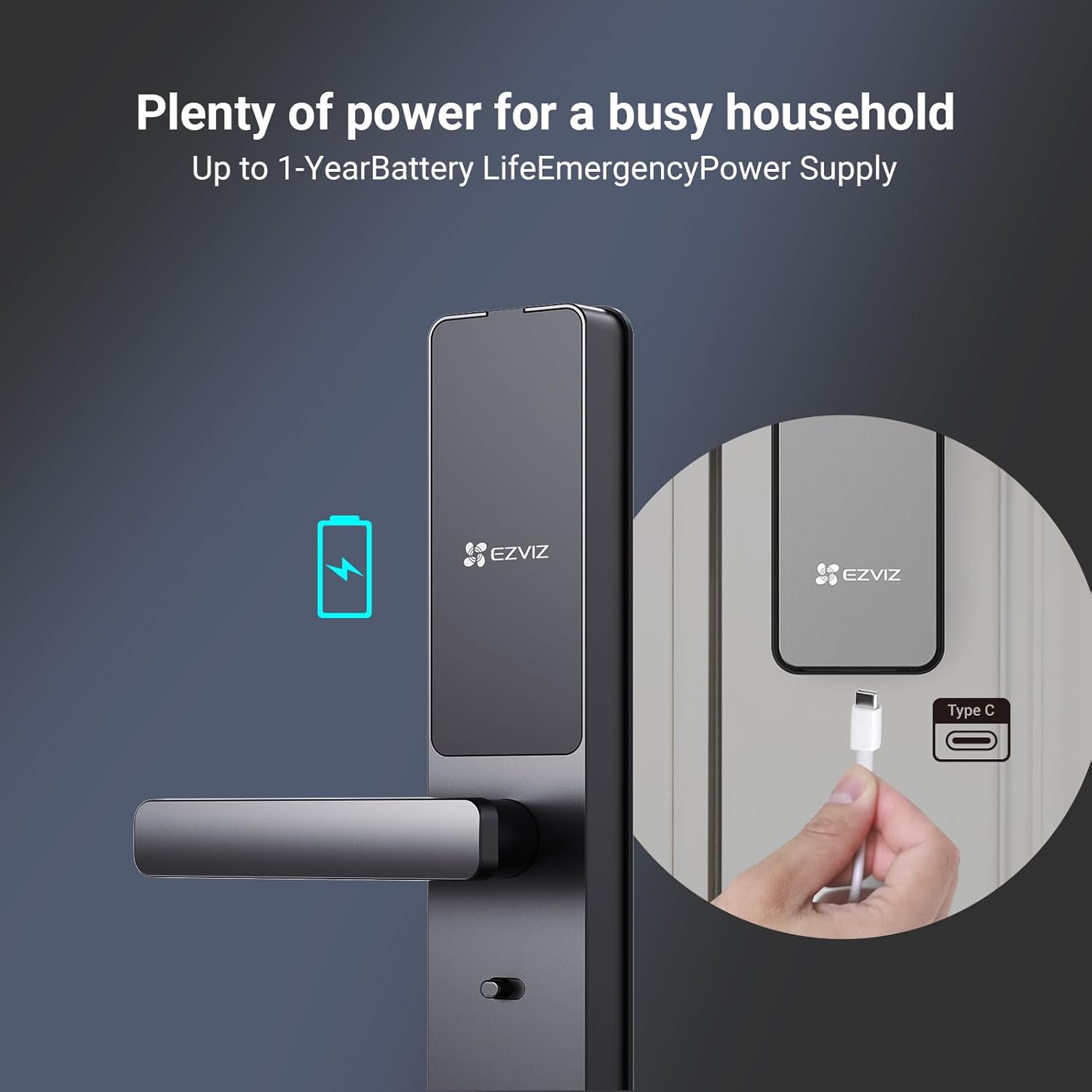

Battery power with emergency charging: The lock runs on 8 × 1.5V AA alkaline batteries and gives a low-battery warning. If the batteries run out, the Type-C port provides emergency power so you can still get in.
Who it's for / Works with

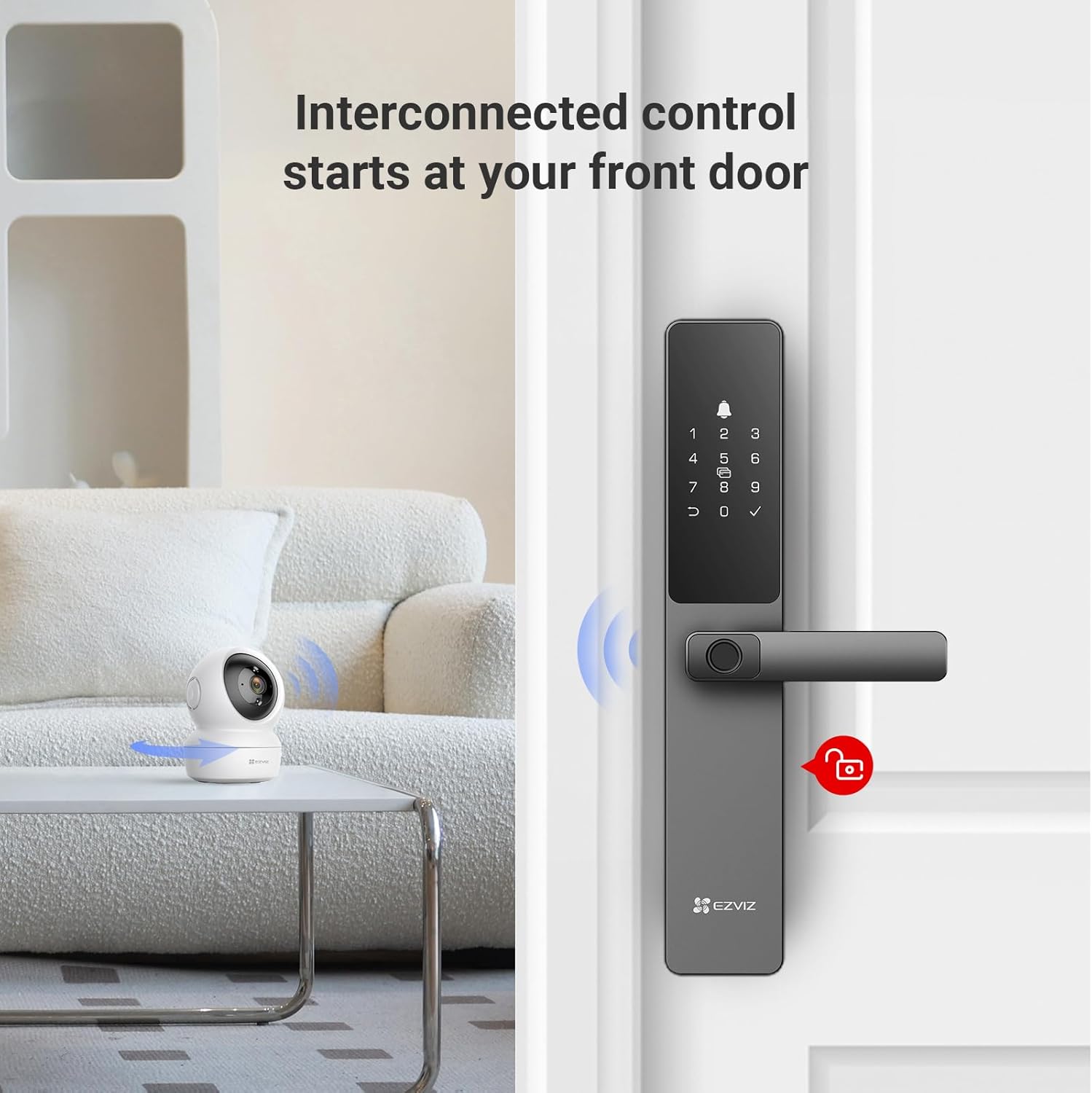

Doors that take a 6068 lock body. With a compatible EZVIZ indoor camera (EZVIZ lists H6c, C6N, CP1, TY1 and TY2), a door-opening event can trigger the camera to take a photo or record a video.
Good to know
Only the exterior panel is weather-resistant (IP65), not the interior panel. Battery life is shorter when Wi-Fi mode is on; you can switch between Wi-Fi mode and Bluetooth mode in the EZVIZ app. Check that your door fits the 6068 lock body before ordering, or choose the installation option.
Technical Specifications
| Model | DL05 (6068 lock body) |
| Unlocking Methods | Fingerprint, passcode, proximity card, mechanical key, Bluetooth key via EZVIZ app, temporary codes, remote unlocking |
| User Capacity | 50 |
| Fingerprint / Passcode / Card Capacity | 50 / 50 / 50 |
| Anti-Peeping Code | Up to 20 digits |
| Communication | 2.4 GHz Wi-Fi, Bluetooth |

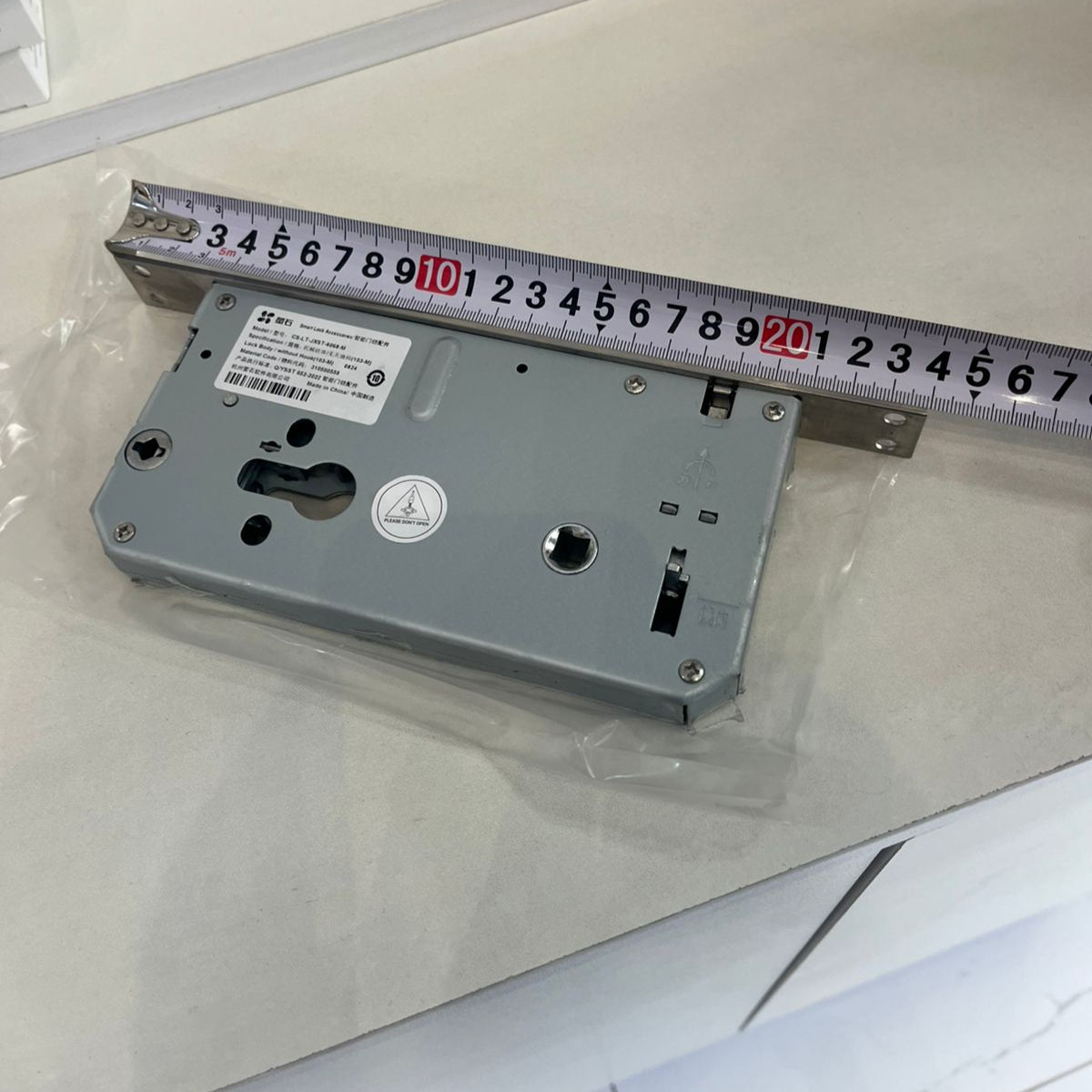

| Lock Body | 6068 |
| Panel Material | Aluminium alloy |
| Panel Size | 360 × 67 × 27 mm |
| Color | Metallic grey |
| Weatherproof | IP65 (front panel) |
| Power | 8 × 1.5V AA alkaline batteries |
| Emergency Power | Type-C |
| Working Temperature | -25°C to 70°C |
| Operating Humidity | 10% to 95% |
📄 Datasheet: Download the official EZVIZ DL05 datasheet (PDF)
